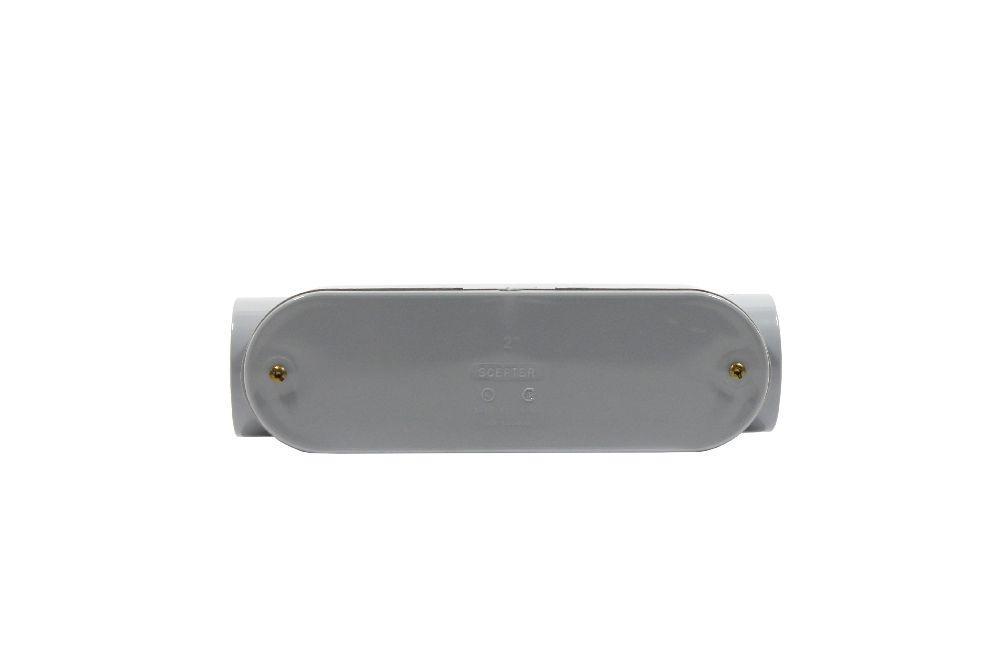

Scepter® 077506
Scepter® 077506 Type C Access Fitting Conduit Body, 2 in Hub, PVC
Brand: Scepter®
Item ID: 6834
MPN: 077506
Login for Price
Features
- Supplied with threaded brass inserts, combination brass head screws and PVC gasketing
- All access fittings are CSA certified and all access fittings except type TB are UL listed for wet locations
- Stainless steel screws are available upon request
Description
Professional electricians ask for Scepter conduit by name for the quality and superior performance that ensures a long trouble free life. Scepter conduit is light weight and offers excellent chemical resistance, high tensile and impact strength, and the FT-4 rating permits use in noncombustible construction. Suitable for exposed, concrete encased and direct burial applications, Scepter conduit requires no extra protection and is third party certified by CSA, UL and NRTL.
Scepter® Conduit Body, Type C Access Fitting, Series: SC Series, 2 in Hub, 2 Hubs, 0.203 in Wall Thickness, PVC, 10.875 in L x 3.188 in W
Specifications
Dimensions |
10.875 in L x 3.188 in W |
Hub Size |
2 in |
Material |
PVC |
Number of Hubs |
2 |
Series |
SC Series |
Type |
Type C Access Fitting |
Wall Thickness |
0.203 in |
Standard Approval |
CSA C22.2 NO 85 Certified|UL 514C Listed|ARRA Compliant|Buy American Act Compliant |
Application |
For wiring access and pull fitting |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_029574_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077506_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077506_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077362_Warranty.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077506_Warranty.pdf
