Scepter® 077547

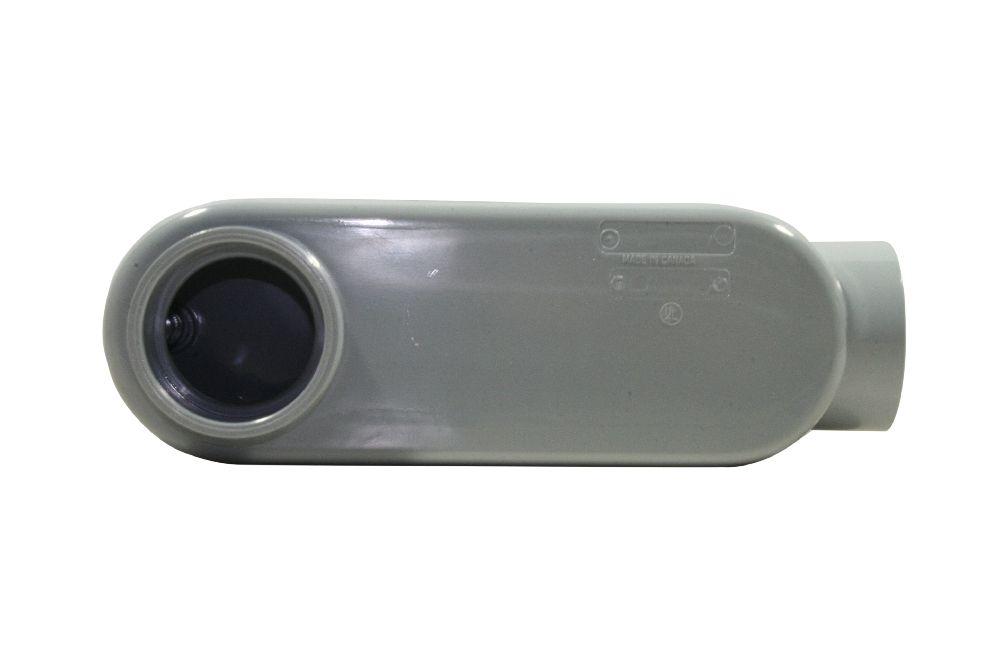

Scepter® 077547 SLB Type LB Conduit Body, 2-1/2 in Hub, PVC
Brand: Scepter®
Item ID: 6825
MPN: 077547
Login for Price
Features
- Supplied with threaded brass inserts, combination brass head screws and PVC gasketing
- All access fittings are CSA certified and all access fittings except Type TB are UL listed for wet locations
- Stainless steel screws are available upon request
Description
Professional electricians ask for Scepter® conduit by name for the quality and superior performance that ensures a long trouble free life. Scepter® conduit is light weight and offers excellent chemical resistance, high tensile and impact strength, and the FT-4 rating permits use in noncombustible construction. Suitable for exposed, concrete encased and direct burial applications, Scepter® conduit requires no extra protection and is third party certified by CSA, UL and NRTL.
Scepter® Conduit Body, Type LB, Series: SLB, 2-1/2 in Hub, 2 Hubs, 0.235 in Wall Thickness, PVC, 13.63 in L x 4.5 in W x 6.24 in H
Specifications
Dimensions |
13.63 in L x 4.5 in W x 6.24 in H |
Hub Size |
2-1/2 in |
Material |
PVC |
Number of Hubs |
2 |
Series |
SLB |
Type |
Type LB |
Wall Thickness |
0.235 in |
Standard Approval |
UL 514B|514C Listed|CSA C22.2 NO 85 Certified|ARRA Compliant|Buy American Act Compliant |
Application |
For wiring access and pull fitting |
Documentation
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_029574_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077547_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077547_Specification_Sheet.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077362_Warranty.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077547_Warranty.pdf
