Scepter® 077603

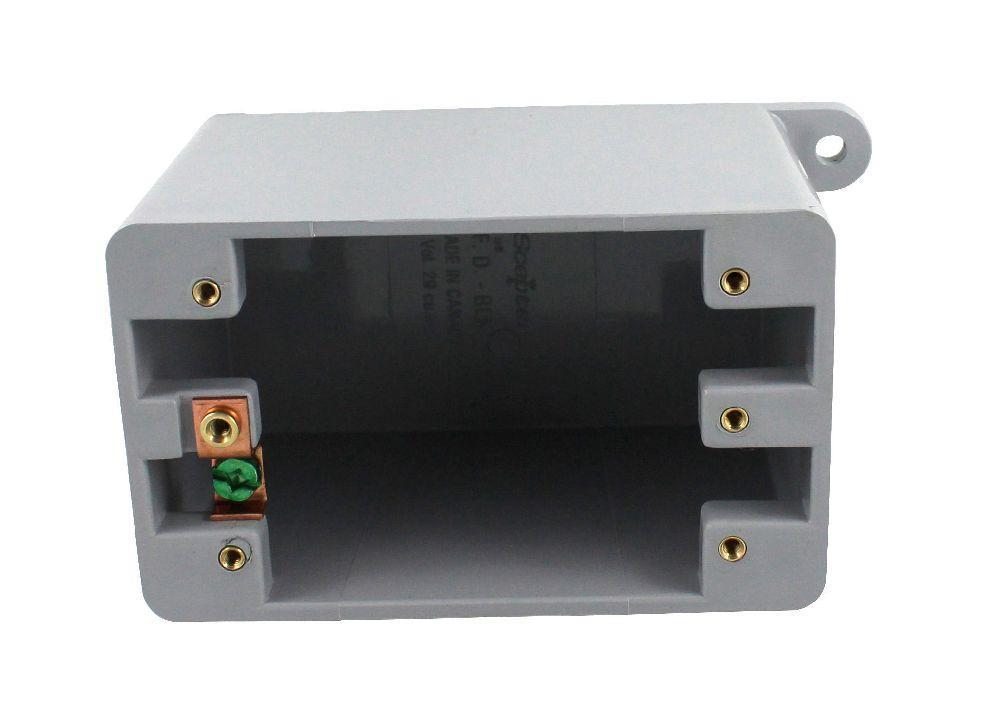

Scepter® 077603 F Series Blank Deep Type FD Gang Box, PVC, 29.2 cu-in Capacity, 1 Gang, 1 Outlet, 4-9/16 in L x 2-13/16 in W x 2-3/4 in D
Brand: Scepter®
Item ID: 458475
MPN: 077603
Login for Price
Features
- All F series boxes are supplied with integral mounting feet, threaded brass inserts and grounding screw
- Weatherproof
Description
Our complete range of Scepter® boxes and covers makes it easy to locate power and control precisely where you want it. Scepter® F series 3-in-1 PVC surface mount outlet boxes are available in single (deep), double and triple-gang configurations, with 1/2 in, 3/4 in and 1 in entry hubs all-in one box. This innovative design enables Contractors to reduce inventory, While ensuring they have the size they need when they need it. With the exception of the FD, FD2 and FD3 blank boxes, Scepter® F series boxes are molded with 1 in conduit hubs and supplied with reducer bushings. The conduit hub(s) are field modified as 1/2 in, 3/4 in or 1 in to accommodate job-site requirements. The appropriate quantity of 1 in x 3/4 in and 3/4 in x 1/2 in reducers to create the desired hub size are packaged with each FD series single gang deep, double gang and triple-gang box.
Scepter® Gang Box, Blank Deep Type FD, Series: F Series, 1 Outlet, 1 Gang, Surface Mount, 29.2 cu-in, PVC, Gray, 4-9/16 in L x 2-13/16 in W x 2-3/4 in D
Specifications
Capacity |
29.2 cu-in |
Color |
Gray |
Dimensions |
4-9/16 in L x 2-13/16 in W x 2-3/4 in D |
Material |
PVC |
Mounting Type |
Surface |
Number of Gangs |
1 |
Number of Outlets |
1 |
Series |
F Series |
Type |
Blank Deep Type FD |
Standard Approval |
CSA C22.2 File No 85|UL 514C|ARRA Compliant|Buy American Act Compliant |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_029574_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077603_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077603_Specification_Sheet.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077362_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077603_Technical_Bulletin.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077362_Warranty.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077603_Warranty.pdf
