Scepter® 277004

• Lockout option - use a tie-wrap, bolt or padlock for added security
• Integrated gasket - injection-molded gasket permanently fixed to the cover, no installation required and proprietary gasket material creates a 6P rated enclosure
• Flat cover - no ribs - offers a flat, smooth surface for mounting of devices or labels and no engravings
• Back panel - designed to fit sizes 8 in and 12 in, made of 14 ga carbon steel, white epoxy powder-coated finish and easy to cut and drill to mount devices
• Gridlines - easy reference for drilling knockouts, makes conduit alignment a snap and indicates a drill zone
• Mounting feet - molded no loose parts to assemble, located on corners out-of the way of conduit connections, flush with the back of the box for close surface mounting and integrated design of mounting feet offers improved strength
• Flammability rated UL94V0
• -40 to 122 deg F rec operating temperature
• UL 746C UV and water exposure
• UL94 V-O flame and smoke
• UL 508A approved industrial control panels
• Junction boxes form an integral part of a circuit protection system
• Constructed to provide a deg of protection to personnel against incidental contact with the enclosed equipment and to provide a deg of protection to the enclosed equipment against specified environmental conditions
• JBX boxes are molded of PVC, are entirely non-metallic and provide NEMA Type 1, 2, 3R, 4, 4X, 6, 6P, 12, 13 protection
• JBX junction boxes are designed and approved for use in indoor/outdoor, industrial, MRO and OEM applications for the accessibility and installation of wire and cable in continuous lengths and to enclose joints and splices
• JBX junction boxes can also be used to enclose electrical equipment in non-hazardous locations
• Close by hand - tool assist to open, 100% non-metallic - corrosion resistant material

The NEW Scepter® JBox™ is ideally suited for indoor and outdoor use and made to perform in the most demanding environments. Made of PVC it is extremely durable and resistant to impact in a wide range of temperatures and not adversely affected by water and chemicals. Built for corrosive environments, the NEW Scepter® JBox™ is entirely non-metallic, eliminating corrosion concerns with screws and other metal parts.

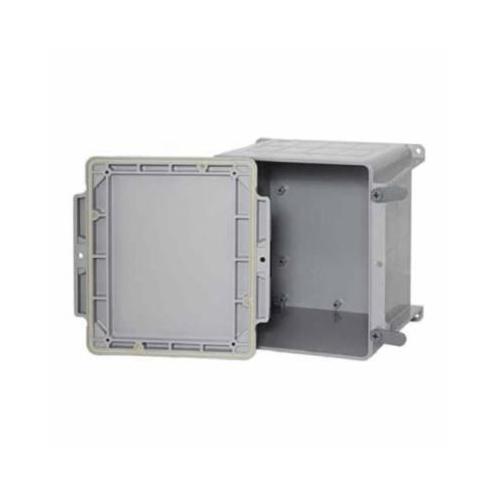

Scepter®, 277004, Conduit Junction Box, 172.05 cu-in Capacity, 6 x 6 x 4 in Size, Surface Mounting, For Use With: Rigid Non-Metallic Conduit System, PVC, Gray, 7.58 in L x 7.58 in W x 4.9 in D Dimensions
