Kidde® 21010075

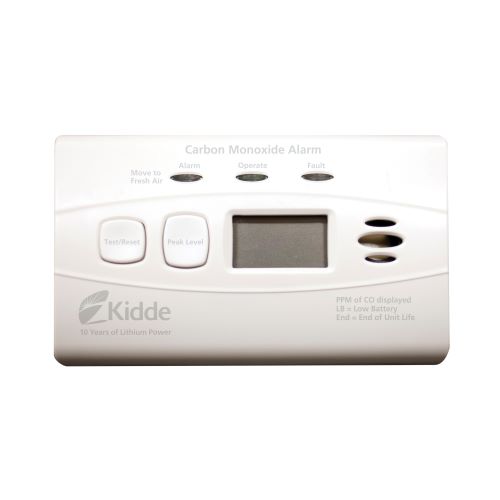

Kidde® 21010075 Model C3010-D Carbon Monoxide Alarm, 70 to 400 ppm Detection, Electrochemical Sensor, Sealed Lithium Battery, LED Display, 85 db at 10 ft

Brand: Kidde®

Item ID: 437868

MPN: 21010075

Login for Price

Features

  • Sealed-in lithium battery power supply
  • No battery replacement required over the 10 year life of the alarm
  • Eliminates worry about battery removal or unauthorized deactivation of alarm
  • Digital display shows carbon monoxide level in ppm
  • Updates digital reading every 15 s allowing you to see if levels change
  • Peak level memory displays the highest carbon monoxide concentration measured since the last reset
  • Self activation alarm automatically activates when attached to the mounting bracket
  • Test/reset button tests the unit for proper operation
  • Resets the carbon monoxide alarm
  • Green LED flashes every 30 s to indicate the unit is operating properly
  • Red LED when a dangerous level of carbon monoxide is detected the red led will pulse and a loud alarm pattern will sound
  • The carbon monoxide alarm pattern is 4 short beeps, followed by 5 s of silence, followed by 4 short beeps with a corresponding red LED flash
  • This cycle will continue for 4 min and then change to 2 patterns once a minute there after
  • Amber LED flashes every second to indicate the unit is in fault mode and one quick beep every 30 s alerts the unit is in error condition and one quick beep every 60 s is an indication of low battery power

Description

The Kidde® C3010-D is a 10 year, sealed battery, carbon monoxide alarm which includes a digital display feature and uses electro-chemical sensing technology to protect you and your family from the dangers of carbon monoxide. The C3010-D alarm will automatically activate when it is attached to the mounting bracket. At the end of alarm life, the unit will chirp, indicating the alarm is in need of replacement. A screwdriver can be used to deactivate the unit, stopping the end of life chirp and making it safe for disposal. The inside cover of the mounting bracket features a quick reference guide for what to do in case of an alarm. This easy to install alarm is suitable for all living areas and has a 10 year life and limited warranty.

Kidde® Carbon Monoxide Alarm, Series: Model C3010-D, 70 to 400 ppm Detection, Electrochemical Sensor, Alarm: Audible, Sealed Lithium Battery Power Source, 85 db at 10 ft Alert, Red LED Visual Alert, 10 to 95 % Humidity, LED Display, 40 to 100 deg F Operating, Plastic, White, 4-1/2 in L x 1-1/2 in W x 2-3/4 in H Dimensions

Specifications

Alarm Type

Audible

Audible Alert

85 db at 10 ft

Color

White

Detection Range

70 to 400 ppm

Dimensions

4-1/2 in L x 1-1/2 in W x 2-3/4 in H

Display Type

LED

Humidity Rating

10 to 95 %

Material

Plastic

Operating Temperature

40 to 100 deg F

Power Source

Sealed Lithium Battery

Sensor Type

Electrochemical

Series

Model C3010-D

Visual Alert

Red LED

Standard Approval

UL Listed

Documentation

Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/UT_21010047_User_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/UT_21010075_Specification_Sheet.pdf

VIDEO LINK https://youtu.be/ErvtlxVgkqQ
