Klein® 93CPLG

Klein® 93CPLG Self-Leveling Laser Level, 100 ft Measuring, +/- 3 mm per 10 m Accuracy, Li-Ion Battery, PC/ABS/TPE Housing

Brand: Klein®

Item ID: 549308

MPN: 93CPLG

Login for Price

Features

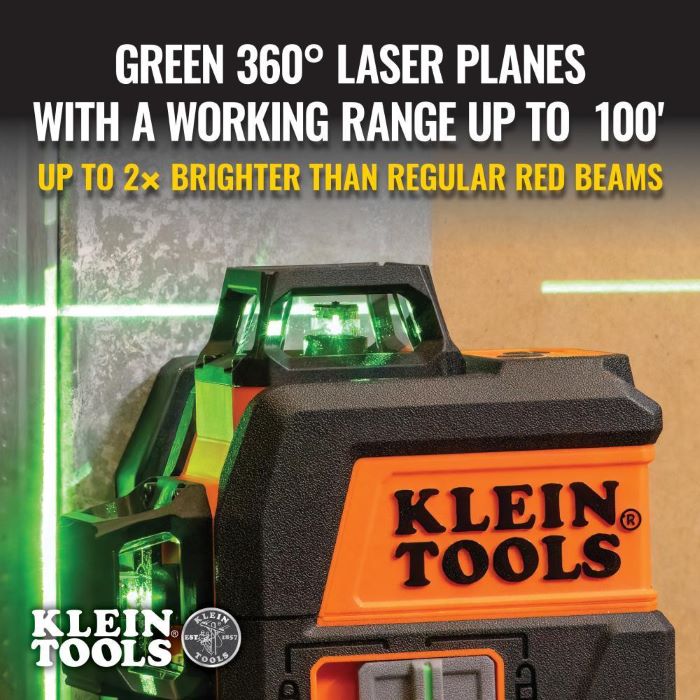

  • Rechargeable Self Leveling Green Laser Level has 3 easy to read bright green 360 deg laser planes with a working range of 100 ft or 30.5 m up to 2 times brighter than regular red beams
  • Compact and lightweight design with lasers in 3 planes is easy to use in tight areas and to store when not in use
  • High precision laser project clean lines with accuracy of 3/16 in at 30 ft or 9.1 m auto out-of-level detection flashes lasers when no longer level
  • Tilt mode allows for the laser level to be turned on while the pendulum is locked for use at different angles

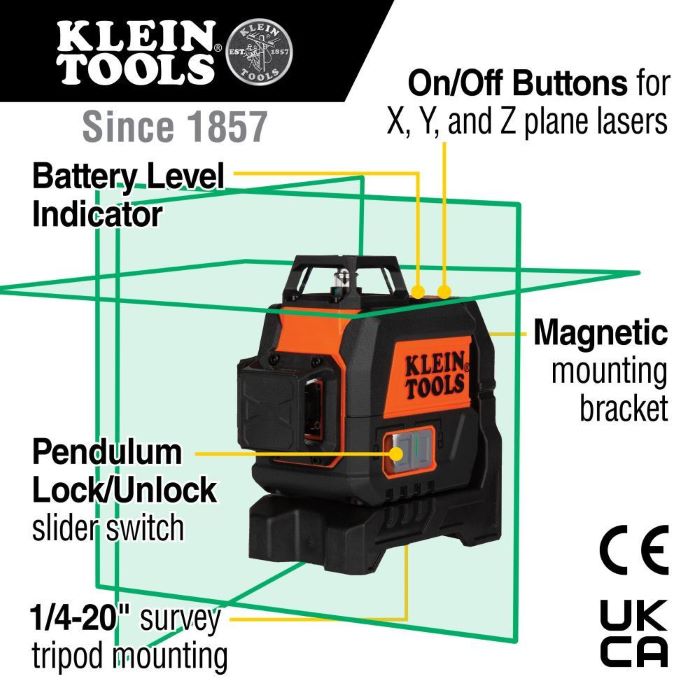

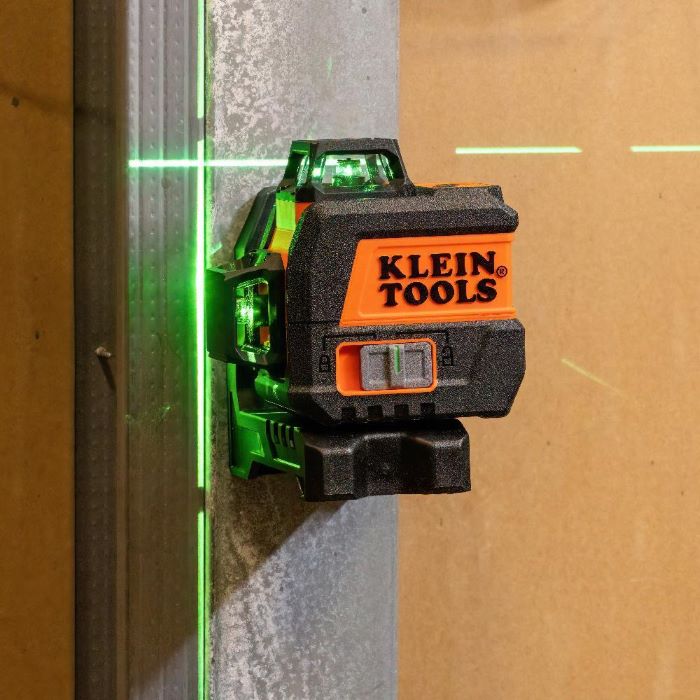

  • Magnetic mounting bracket screws into integrated 1/4 in tripod mount
  • More than 6 Hour runtime provides lasers power for all day use

Description

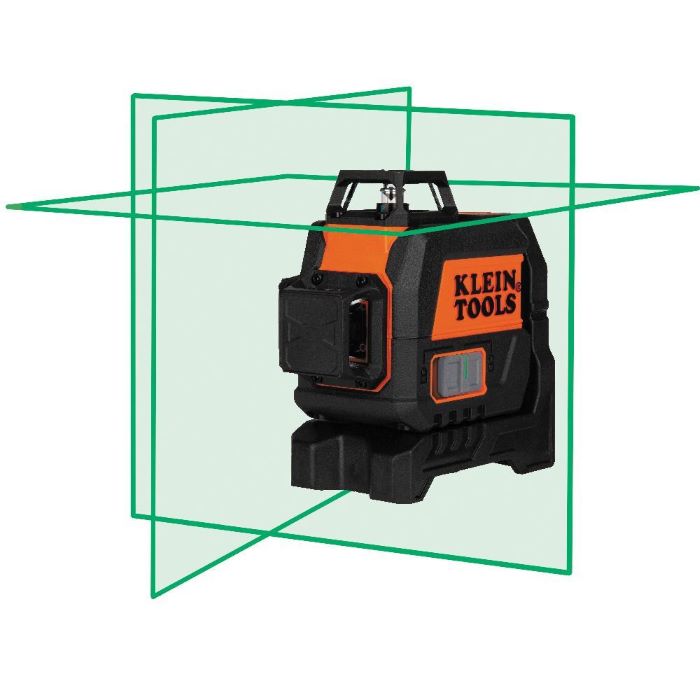

The Klein Tools Compact Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level. Equipped with an integrated magnetic mount and 1/4-Inch-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications.

Klein®, 93CPLG, Laser Level, Bare Tool/Kit: Kit, Self-Leveling, +/- 3 mm per 10 m Accuracy, 100 ft Measuring, 3 Beam, Green Beam, 508 to 525 nm Wavelength, Laser Class: 2, 23 to 131 deg F, Li-Ion Battery, PC/ABS/TPE Housing Material, 4 in H x 3.2 in W x 4.2 in L Dimensions

Specifications

Accuracy

+/- 3 mm per 10 m

Bare Tool/Kit

Kit

Battery Type

Li-Ion

Beam Color

Green

Dimensions

4 in H x 3.2 in W x 4.2 in L

Housing Material

PC/ABS/TPE

Laser Class

2

Measuring Range

100 ft

Number of Beams

3

Temperature Rating

23 to 131 deg F

Type

Self-Leveling

Wavelength

508 to 525 nm

Standard Approval

EN 60825-1:2014/A11:2021|EN 50689:2021|21 CFR 1040.10/1040.11|IEC 60825-1

Application

Indoor, Outdoor and Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93CPLG_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93CPLG_Installation_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93CPLG_SDS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93CPLG_SDS.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93CPLG_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93CPLG_Specification_Sheet.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93CPLG_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93CPLG_User_Manual.pdf

VIDEO LINK http://youtu.be/o7jx6goMw4o
