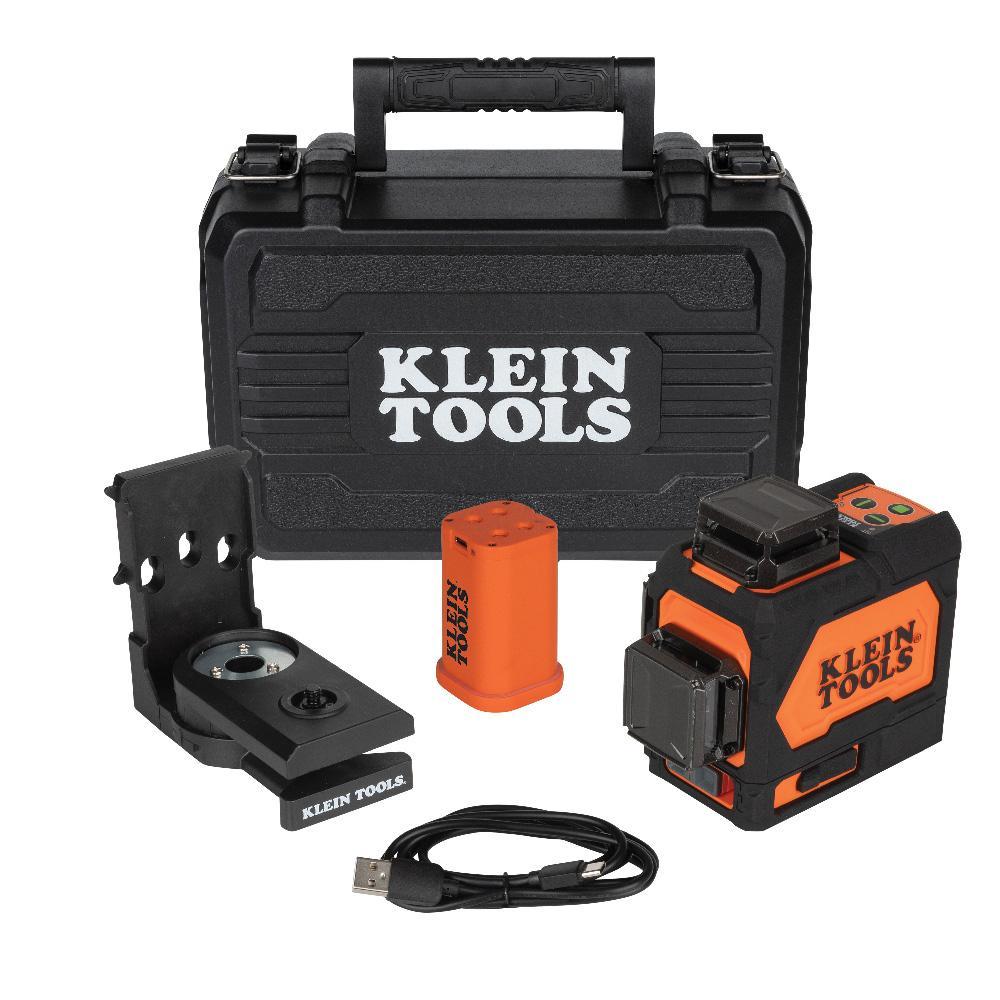

Klein® 93PLL

Klein® 93PLL Laser Levels, +/- 4.5 mm Accuracy, 3 Beams

Brand: Klein®

Item ID: 524409

MPN: 93PLL

Login for Price

Features

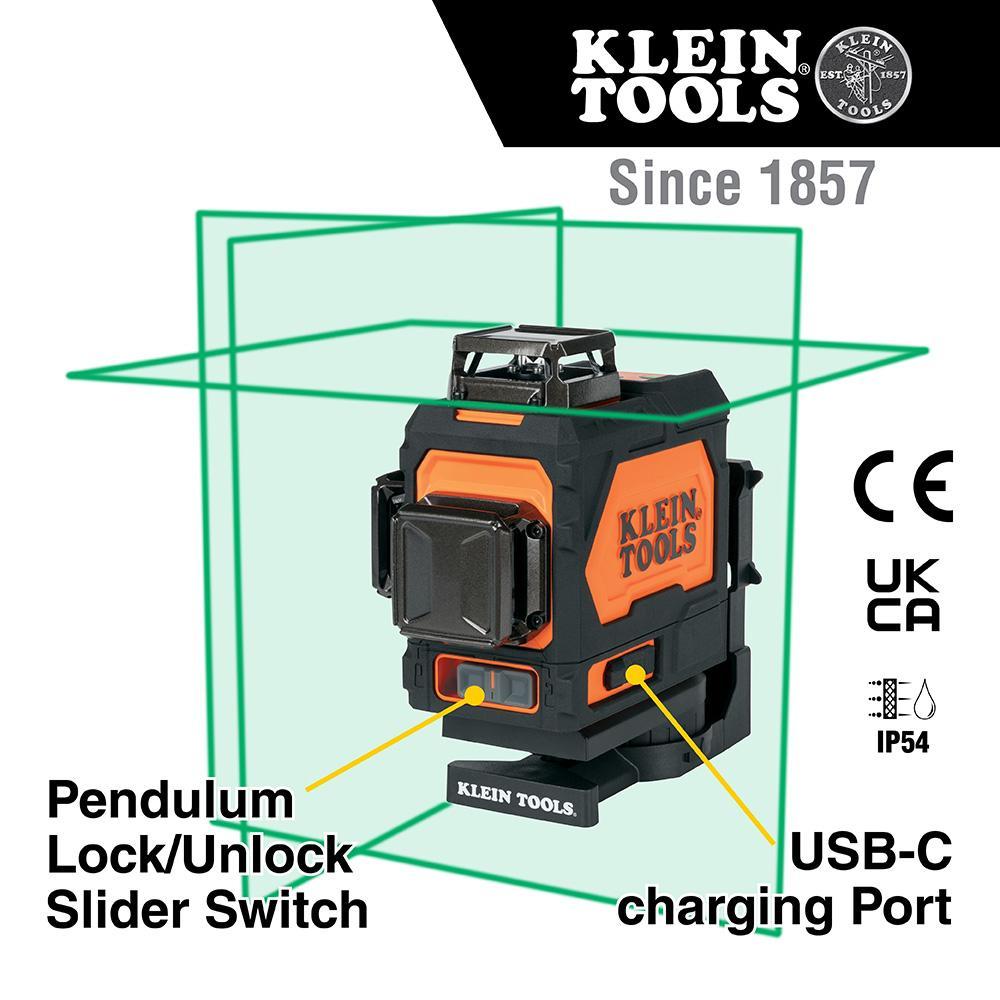

  • Rechargeable Self-Leveling Green Planar Laser Level has easy-to-read with high visibility green horizontal and vertical laser lines
  • Projects independently or together in X-, Y- and Z-planes for various layout and alignment options
  • View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane
  • Rugged body provides IP54 water and dust resistance
  • Projects a line independently or together in X-, Y-, and Z-planes to align stud, concrete, tiles, conduit, and more
  • Find Plumb spots much quicker than a traditional string bob by using the intersection of the Y and Z planes

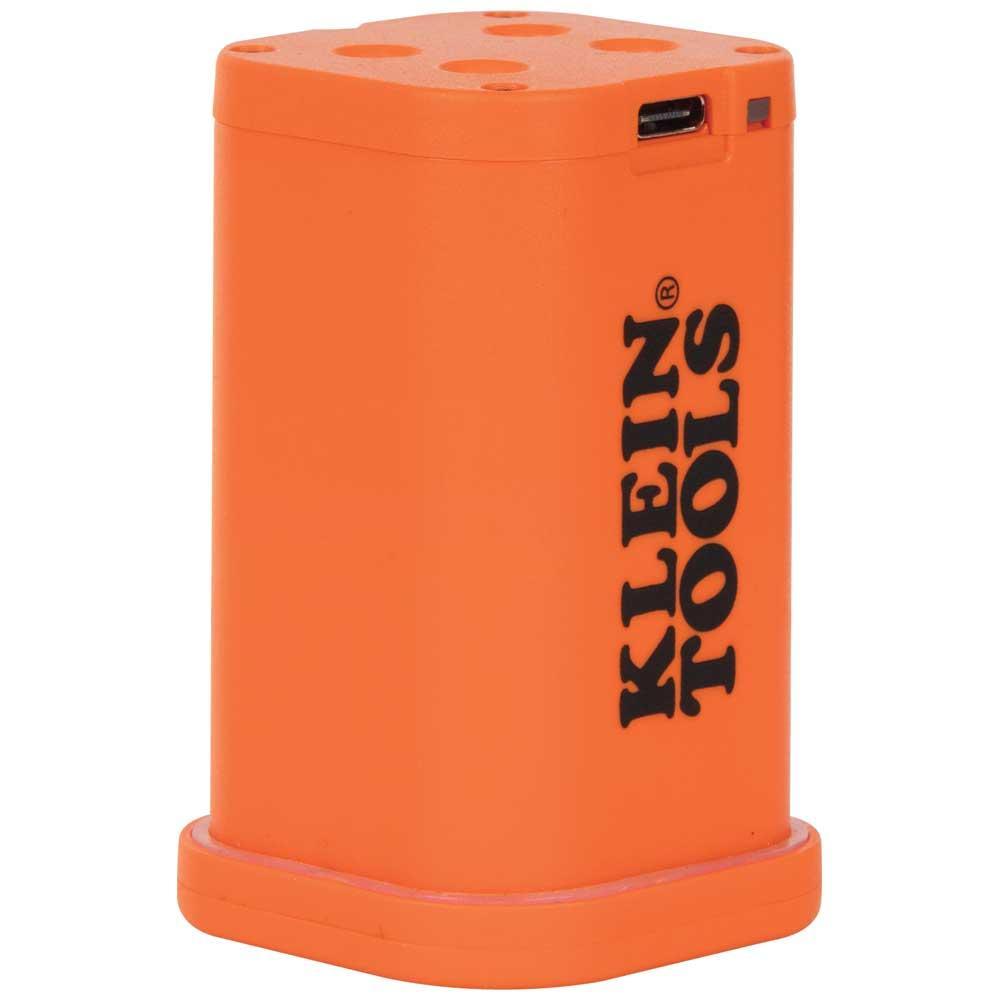

  • More than 9 hr run time with integrated rechargeable Li-Ion powered battery
  • Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads

Description

The Klein Tools' Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power =1mW @ 510-530nm).

Klein®, 93PLL, Laser Levels, +/- 4.5 mm Accuracy, 3 Beam, Green Beam, 510 to 530 nm Wavelength, Laser Class: Class 2, ABS Housing and Electronic Components, 3.5 in H x 4.8 in W x 5.5 in L Dimensions

Specifications

Accuracy

+/- 4.5 mm

Beam Color

Green

Dimensions

3.5 in H x 4.8 in W x 5.5 in L

Laser Class

Class 2

Material

ABS Housing and Electronic Components

Number of Beams

3

Type

Laser Level

Wavelength

510 to 530 nm

Standard Approval

EN61326-1:2013|EN60825-1:2014|NOM-001-SCFI-2018|21 CFR 1040.1 and 1040.11

Application

For Self-Leveling Laser Alignment Instrument

Documentation

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93PLL_Installation_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_93PLL_Specification_Sheet.pdf

VIDEO LINK http://youtu.be/JL2To6nfG1o
