Klein® K12035
Klein® Klein-Kurve® K12035 Heavy Duty Shear Cutting Wire Stripper With Hold-Open Spring, 18 to 8 AWG Solid/20 to 10 AWG Stranded Other Non-Metallic Type NM Sheathed/Romex® Cable, 8.41 in OAL, Forged Steel Body
Brand: Klein®
Item ID: 484151
MPN: K12035
Login for Price
Features

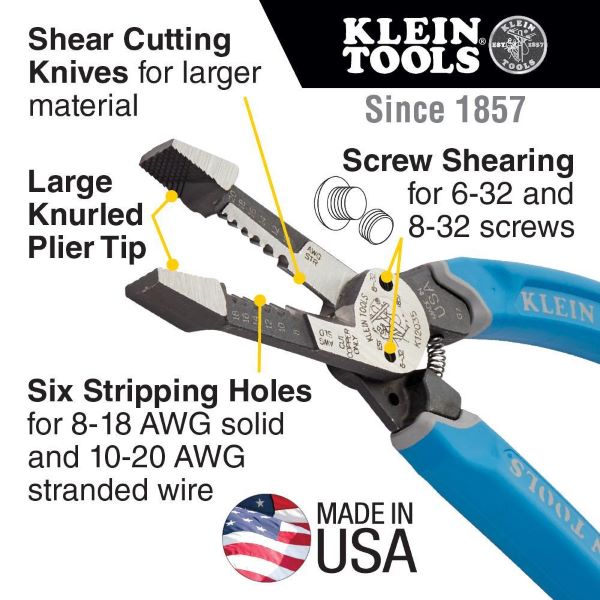

- Shear cutting knives for easier cutting of copper wire and larger material such as Romex cable (all sizes) and other nonmetallic (type NM) sheathed cable
- Screw shearing for 6-32 and 8-32 screws and wire looping hole
- Large knurled plier tip pulls and twists wire
- Klein-Kurve comfort grip handles for reduced hand fatigue
- Hot riveted joint prevents wobble and separation of the blades over time
- Textured grips for enhanced dexterity and integrated hang holes
Description
These forged, heavy duty wire strippers have shear-cutting knives for a lower force to cut copper wire and larger cable such as Romex® and other nonmetallic (type NM) cable. Updated design features six stripping holes for 18 to 8 AWG solid and 20 to 10 AWG stranded wire. The large knurled plier head pulls and twists wire. Screw shearing holes handle #6-32 and #8-32 screws.
Klein® Klein-Kurve® Wire Stripper, Heavy Duty Shear Cutting, 18 to 8 AWG Solid/20 to 10 AWG Stranded Cable, 8.41 in Overall Length, Forged Steel Jaw, Blue Comfort Grip Handle, Forged Steel Body, Applicable Materials: Copper Wire, Other Non-Metallic Type NM Sheathed/Romex® Cable, Insulated (Yes/No): No
Specifications
Applicable Materials |
Copper Wire |
Body Material |
Forged Steel |
Cable Size |
18 to 8 AWG Solid/20 to 10 AWG Stranded |
Cable Type |
Other Non-Metallic Type NM Sheathed/Romex® |
Handle Type |
Blue Comfort Grip |
Insulated (Yes/No) |
No |
Jaw Material |
Forged Steel |
Overall Length |
8.41 in |
Type |
Heavy Duty Shear Cutting |
Standard Approval |
ECCN EAR99|PROP65: Cancer and reproductive harm. For more information go to www.p65warnings.ca.gov. |
Application |
Wire Stripping and Cutting Application |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a9debb2c6113768d8bec7aec64e8c166c082c521385a35d9e2ff2a20e4a40ec9.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a9debb2c6113768d8bec7aec64e8c166c082c521385a35d9e2ff2a20e4a40ec9.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_de94f27f60f4b900a9190f1f5823905a89dfdced8deb6d13ef3b24c351365cd2.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_de94f27f60f4b900a9190f1f5823905a89dfdced8deb6d13ef3b24c351365cd2.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a9debb2c6113768d8bec7aec64e8c166c082c521385a35d9e2ff2a20e4a40ec9.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_K12035_Installation_Manual.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_de94f27f60f4b900a9190f1f5823905a89dfdced8deb6d13ef3b24c351365cd2.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_K12035_Specification_Sheet.pdf
VIDEO LINK http://youtu.be/CrPB4mpyWIo
