Klein® VDV226-110

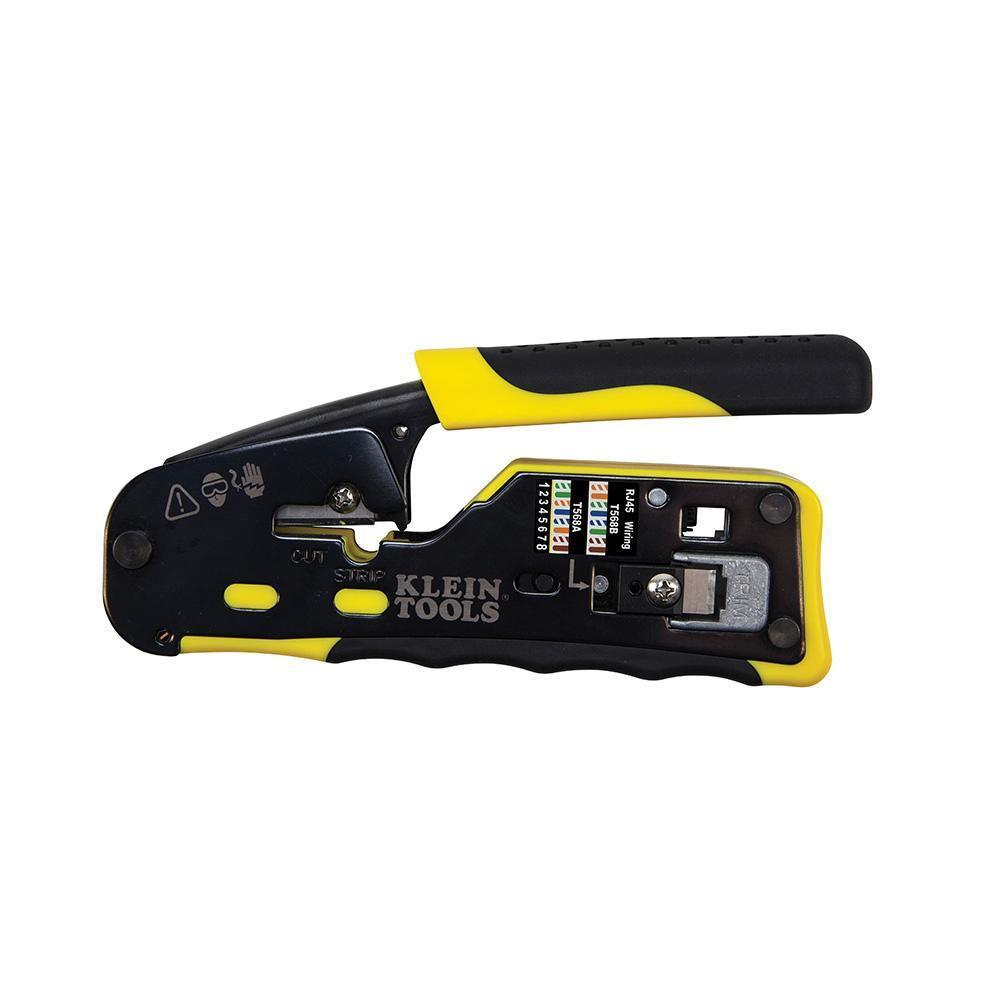

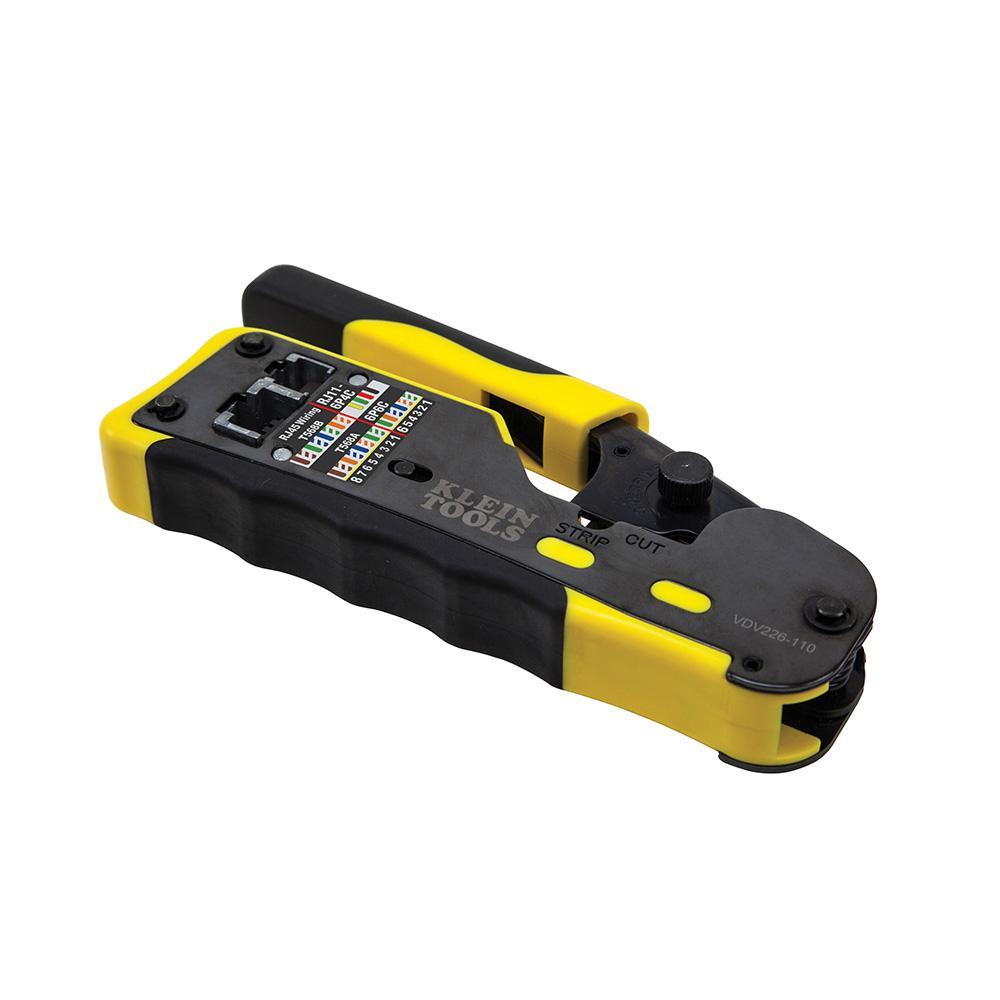

Klein® Pass-Thru™ VDV226-110 4/6/8-Position Modular Crimper, 28 to 22 AWG Cable/Wire
Brand: Klein®
Item ID: 489186
MPN: VDV226-110
Login for Price
Features

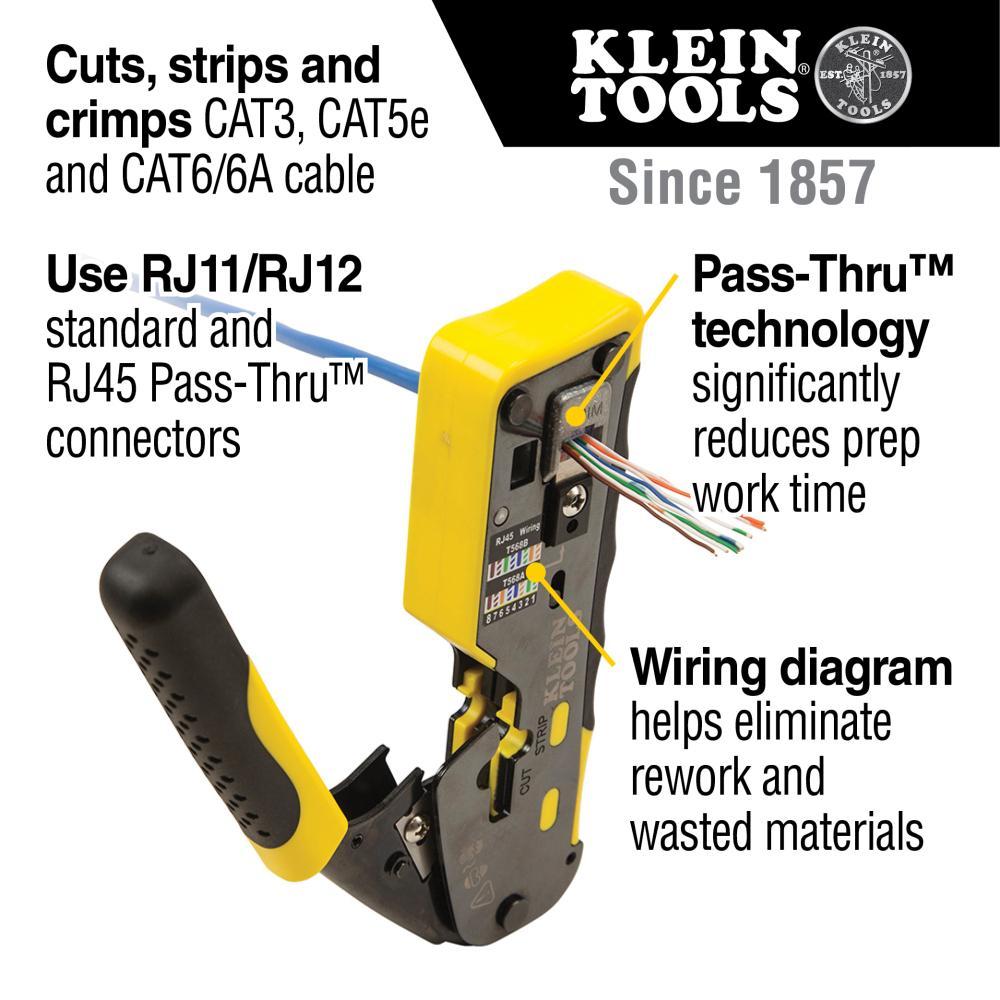

- Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plugs
- Wire stripper, crimper, and cutter all-in-one tool for STP/UTP paired-conductor data cables
- Crimps RJ11/RJ12 standard modular connectors and crimps and trims Klein Tools RJ45 Pass-Thru connectors

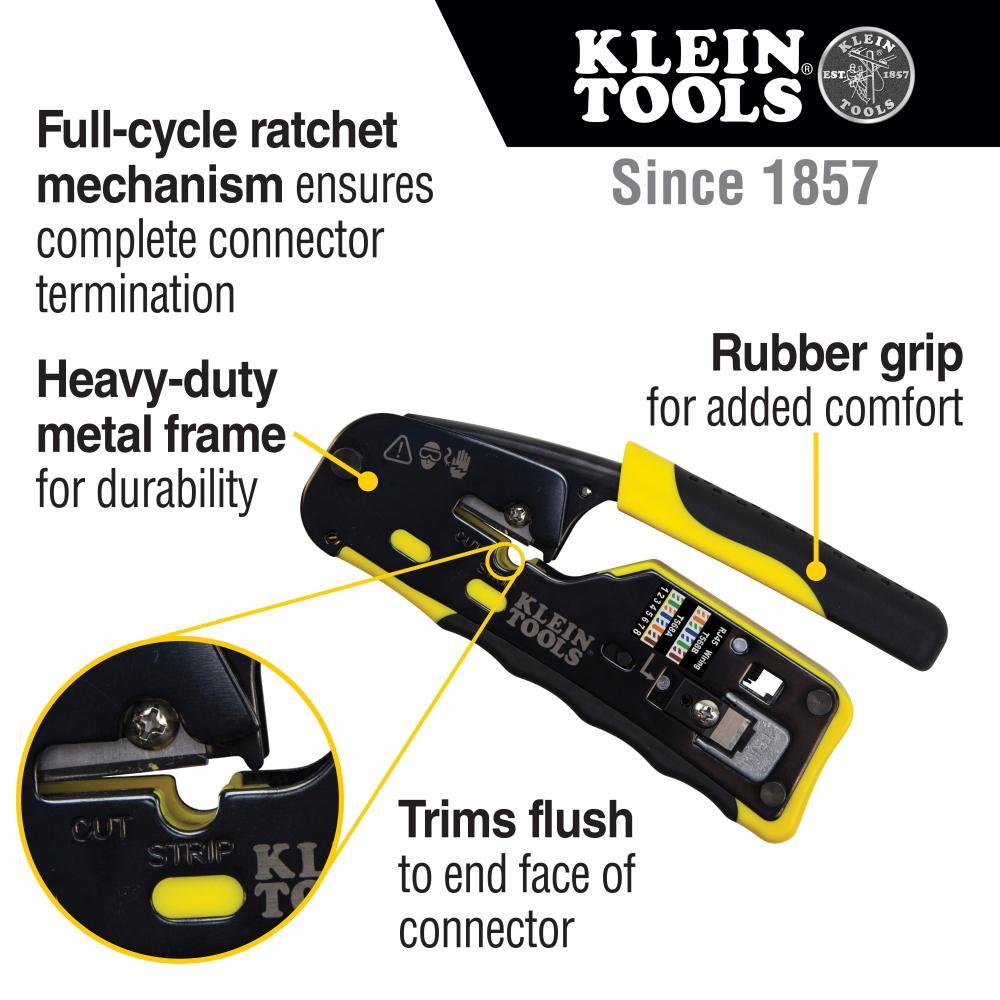

- Full cycle ratchet mechanism ensures complete connector termination
- Flat or round solid or stranded telephone and data cable
- Trims flush to end face of connector to eliminate unintended contact between conductors

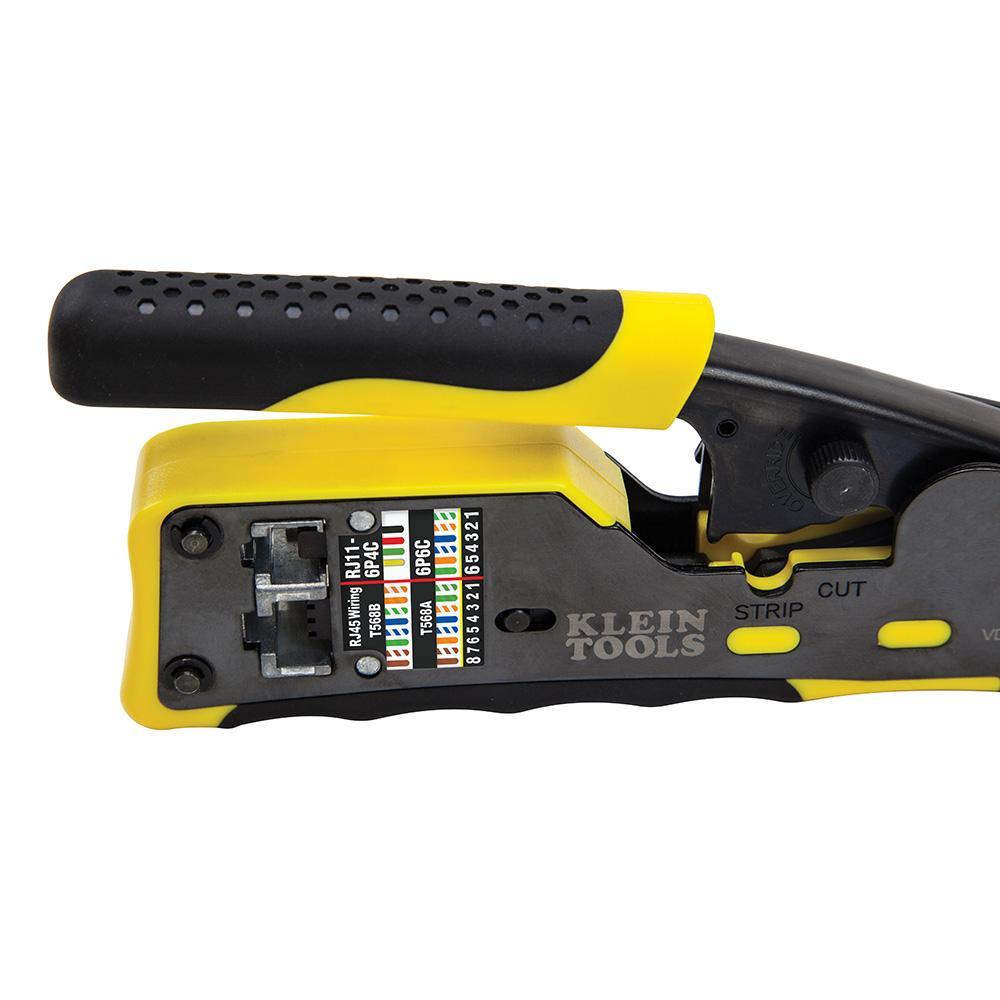

- On tool wiring guide helps minimize wiring errors
Description
Klein® Pass-Thru™ Modular Crimper, 4/6/8-Position, 28 to 22 AWG Cable/Wire, 6-3/32 in Overall Length, Dual Material Cushion Overlay Handle
Specifications
Cable/Wire Size |
28 to 22 AWG |
Handle Type |
Dual Material Cushion Overlay |
Overall Length |
6-3/32 in |
Type |
4/6/8-Position |
Standard Approval |
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
Application |
VDV826-728, VDV826-729, VDV826-702, VDV826-703 and VDV826-763 Connectors |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cdc8a9f35ed3f560e6d3f8634995d675c3c2a15e43b5da2372d9ea29a4027259.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cdc8a9f35ed3f560e6d3f8634995d675c3c2a15e43b5da2372d9ea29a4027259.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d638de7a3624adc43edf4cffcebac2c23f6bae846a1e732d3671be1828f76447.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d638de7a3624adc43edf4cffcebac2c23f6bae846a1e732d3671be1828f76447.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_VDV226-110_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cdc8a9f35ed3f560e6d3f8634995d675c3c2a15e43b5da2372d9ea29a4027259.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d638de7a3624adc43edf4cffcebac2c23f6bae846a1e732d3671be1828f76447.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Klein_VDV826-764_Specification_Sheet.pdf
VIDEO LINK http://youtu.be/zRr31kU2sKM
