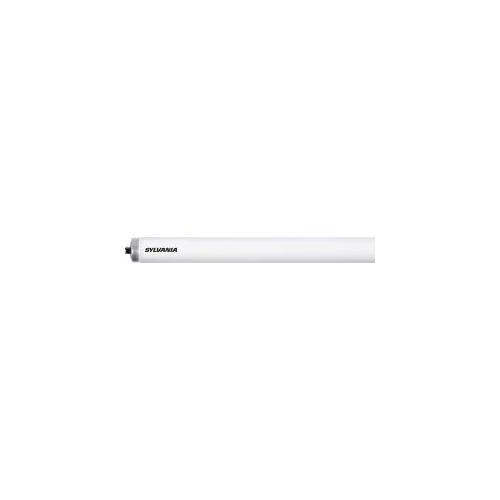

Sylvania F48T12/CW/HO/25146
Sylvania F48T12/CW/HO/25146 High Output Fluorescent Lamp, 60 W, Recessed Double Contact Fluorescent Lamp, 4050 Lumens, 60 CRI, 4200 K, 48 in L
Brand: Sylvania
Item ID: 27985
MPN: F48T12/CW/HO/25146
Login for Price
Features
- Ballast dependent total harmonic distortion
- 4050 Lumens initial at 25 deg C
Description
Sylvania Fluorescent Lamp, High Output, F48T12/C Designation, 60 W Wattage, 800 mA, Fluorescent Lamp, Recessed Double Contact Lamp Base, T12 Shape, 4050 Lumens, 12000 hr Average Life, Cool White, 60 CRI, 4200 K Color Temperature, 48 in Length, 1-1/2 in Diameter, Phosphor Coated Lamp, Rapid Start
Specifications
Amperage Rating |
800 mA |
Average Life |
12000 hr |
Color Rendering Index (CRI) |
60 |
Color Temperature |
4200 K |
Color |
Cool White |
Designation |
F48T12/C |
Diameter |
1-1/2 in |
Lamp Base |
Recessed Double Contact |
Lamp Finish |
Phosphor Coated |
Lamp Type |
Fluorescent |
Length |
48 in |
Lumens |
4050 Lumens |
Shape |
T12 |
Start Type |
Rapid |
Type |
High Output |
Wattage |
60 W |
Standard Approval |
ANSI C78.81-2001|RoHS Compliant |
Application |
Commercial and Residential Applications |
