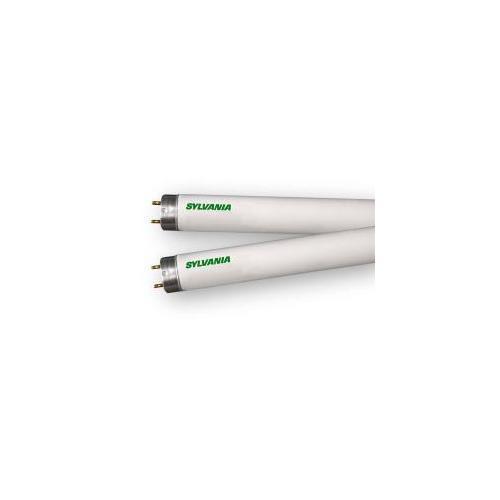

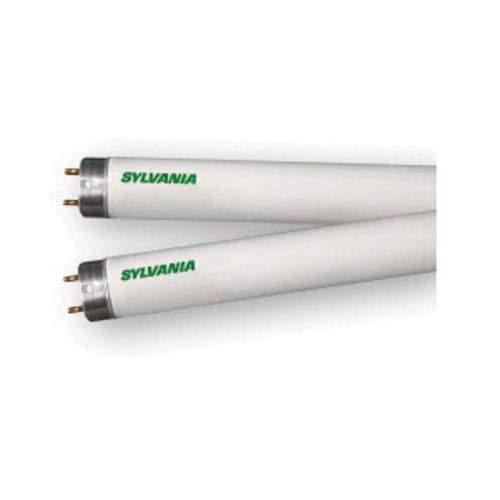

Sylvania FO32/841/XP/ECO3/21767
Sylvania OCTRON® 800 XP® ECOLOGIC®3 FO32/841/XP/ECO3/21767 Extended Performance Fluorescent Lamp, 32 W, Medium Bi-Pin Linear Fluorescent Lamp, 3000 Lumens, 85 CRI, 4100 K, 47.78 in L
Brand: Sylvania
Item ID: 225907
MPN: FO32/841/XP/ECO3/21767
Login for Price
Features
- Superior performance lamps for existing 800 series T8 instant start systems
- Longer life on programmed rapid start ballast
- 94% mean lumens maintenance
- QUICK 60+® system warranty when paired with Osram QUICKTRONIC® electronic ballast
- Lead-free glass
- Suitable for IS or RS operation
- Ballast dependent total harmonic distortion
- Rare earth phosphor
Description
OCTRON® 800 XP® ECOLOGIC® fluorescent lamps provide upto 42% longer life, higher initial and maintained lumens, improved color rendition and longer relamp periods compared to 700 series T8 lamps. For maximum energy savings, operate OCTRON® 800 XP® ECOLOGIC® lamps on QUICKTRONIC® high efficiency instant start ballasts. For longer life and optimal performance on occupancy sensors, pair with Osram QUICKTRONIC® PROStart® programmed rapid start ballasts.
Sylvania OCTRON® 800 XP® ECOLOGIC®3 Fluorescent Lamp, Extended Performance, FO32/841/XP/ECO3/21767 Designation, 32 W Wattage, Linear Fluorescent Lamp, Medium Bi-Pin Lamp Base, T8 Shape, 3000 Lumens, 40000 hr Average Life, 85 CRI, 4100 K Color Temperature, 47.78 in Length, 1.1 in Diameter, Phosphor Coated Lamp, Programmed/Rapid Start, Electronic Ballast, Enclosed Fixture
Specifications
Average Life |
40000 hr |
Ballast Type |
Electronic |
Color Rendering Index (CRI) |
85 |
Color Temperature |
4100 K |
Designation |
FO32/841/XP/ECO3/21767 |
Diameter |
1.1 in |
Fixture Type |
Enclosed |
Lamp Base |
Medium Bi-Pin |
Lamp Finish |
Phosphor Coated |
Lamp Type |
Linear Fluorescent |
Length |
47.78 in |
Lumens |
3000 Lumens |
Shape |
T8 |
Start Type |
Programmed/Rapid |
Type |
Extended Performance |
Wattage |
32 W |
Standard Approval |
RoHS Compliant|TCLP Compliant |
Application |
Healthcare, Industrial, Office, Retail, Schools, Commercial and Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_17CP82WF1091_Catalog.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/OSRAM_SYLVANIA_OCTRON_800_XP_SS_FO32_850_XP_ECO3_SL_22142_SDS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9c93700b70709078394b2fcd041150b52f1498396ec988512934ea77d71e1503.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_US284DPB950MH81_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_04b602d3c4ac4d9fd936440b23d5f63c29618e8f1543b75839e78899bc64905b.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sylvania_F72T8_CW_27266_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sylvania_F72T8_CW_27266_Warranty_Information.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sylvania_FO32_841_XP_ECO3_21767_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sylvania_FO32_841_XP_ECO3_21767_Warranty_Information.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sylvania_FO40_865_XP_ECO3_21721_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sylvania_FO40_865_XP_ECO3_21721_Warranty_Information.pdf
