Sylvania QTP2X96T12HOUNVRS-SC/75303

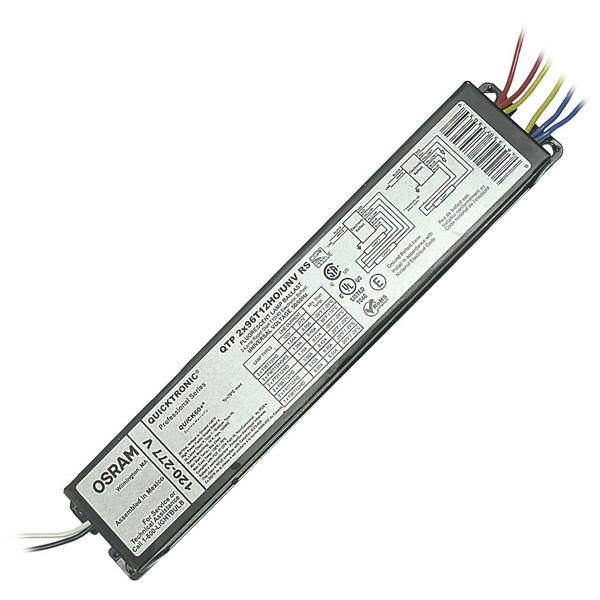

Sylvania QTP2X96T12HOUNVRS-SC/75303 Electronic Ballast, T12/HO Lamp, 96 W Lamp, 120 to 277 VAC, Rapid, 0.89 Ballast Factor
Brand: Sylvania
Item ID: 386445
MPN: QTP2X96T12HOUNVRS-SC/75303
Login for Price
Description
Sylvania Electronic Ballast, T12/HO Lamp, 96 W Lamp, 189 W Wattage, 120 to 277 VAC, 1.57 A, 50/60 Hz Frequency, Rapid Start, -20 deg F Minimum Starting, Total Harmonic Distortion: <10 %, Power Factor: >98 %, Yes Dimmable, 2 Lamps, T12 Lamp Base, Ballast Factor: 0.89, Small Can Enclosure, White, 10.06 in L x 2.93 in W x 1.31 in H Dimensions
Specifications
Amperage Rating |
1.57 A |
Ballast Factor |
0.89 |
Color |
White |
Dimensions |
10.06 in L x 2.93 in W x 1.31 in H |
Dimmable |
Yes |
Enclosure Type |
Small Can |
Frequency Rating |
50/60 Hz |
Lamp Base Type |
T12 |
Lamp Type |
T12/HO |
Lamp Wattage |
96 W |
Minimum Starting Temperature |
-20 deg F |
Number of Lamps |
2 |
Power Factor |
>98 % |
Start Type |
Rapid |
Total Harmonic Distortion |
<10 % |
Voltage Rating |
120 to 277 VAC |
Wattage |
189 W |
Standard Approval |
ANSI C62.41|cUL Listed|FCC 47 CFR Part 18|RoHS Compliant |
