Wiremold® 2347-WH

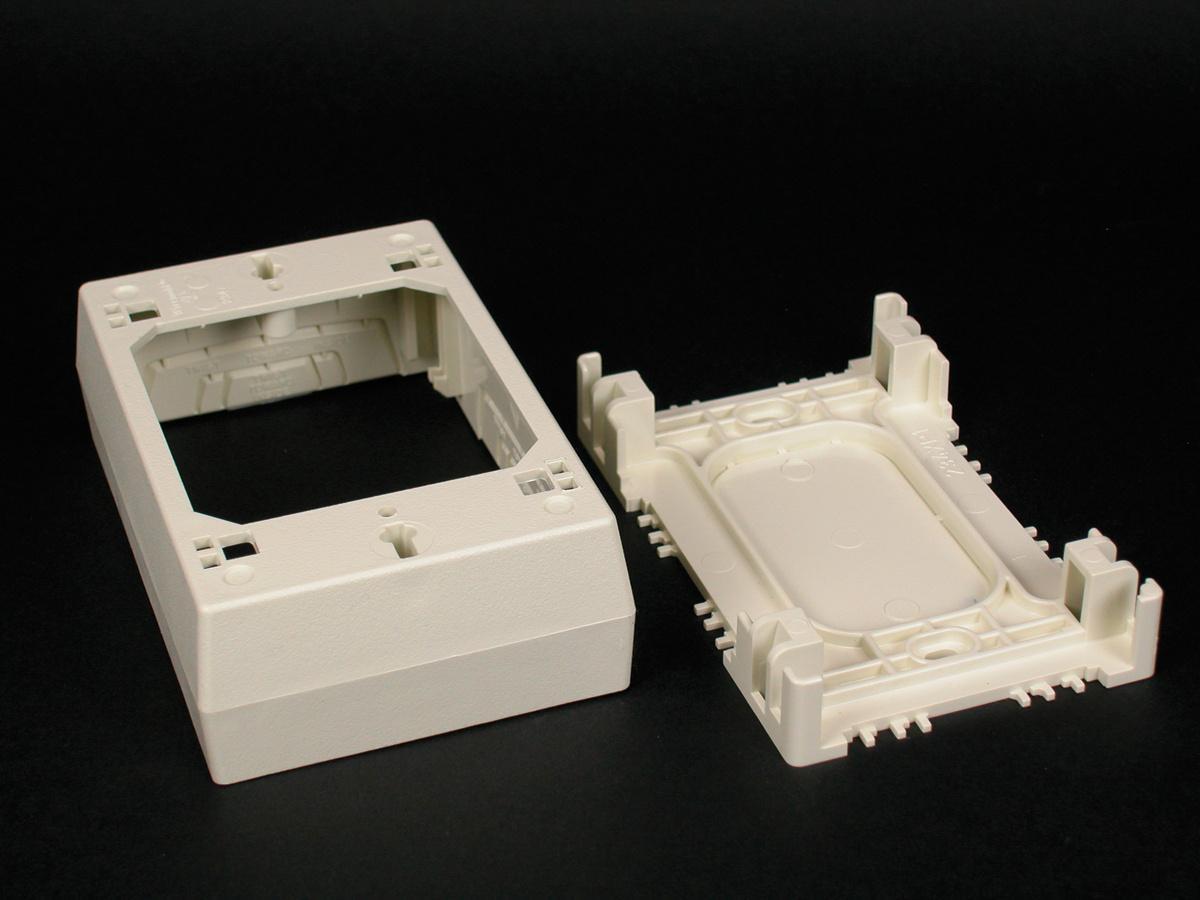

Wiremold® 2347-WH 1-Gang Non-Metallic Straight Device Box, 4-3/4 in L x 3 in W x 1-3/8 in H, PVC, White
Brand: Wiremold®
Item ID: 64359
MPN: 2347-WH
Login for Price
Features
- Accommodates communication and/or power wiring
- Durable, textured PVC ivory or white finish
- Single and dual compartment low profile design
- Adhesive backing for low voltage under 50 VAC applications
- For standard switches and devices
- Base has rectangular knockout
- Accepts industry standard faceplates for switch and communication devices
- Non-metallic
- 1-channel capacity
- 600 VAC voltage rating
Description
Wiremold® products work together seamlessly to save installation time, while providing enhanced flexibility and productivity in environments ranging from residential dwellings and educational institutions to meeting rooms and healthcare facilities.
Wiremold® Device Box, 1-Gang Non-Metallic Straight, 4-3/4 in Length, 3 in Width, 1-3/8 in Height, For Use With: 400, 800, 2300 and 2300D Series Metal Raceway, PVC, White, Textured
Specifications
Color |
White |
Finish |
Textured |
Height |
1-3/8 in |
Length |
4-3/4 in |
Material |
PVC |
Suitable For Use With |
400, 800, 2300 and 2300D Series Metal Raceway |
Type |
1-Gang Non-Metallic Straight |
Width |
3 in |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cULus E90378|UL 5A|E90377 Guide RJYT|NEC Article 388|CEC Section 12-2600 |
Application |
Commercial, Office and Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0279459d6e910fd67230ad5735ec879510039a7691b5a86901b2a5d9eb0fe406.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1593d94d13f828103848fa898222925ac2f22dc1810d4ee69855d02bc813038e.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d4e7b09e0841073bc0180c400269fa0a8ef2f0cb07918aefb99189226af1470f.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8ca0849deae76d7ab66a4c8a303383801294985bf54656fbeaf230823303673d.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf
