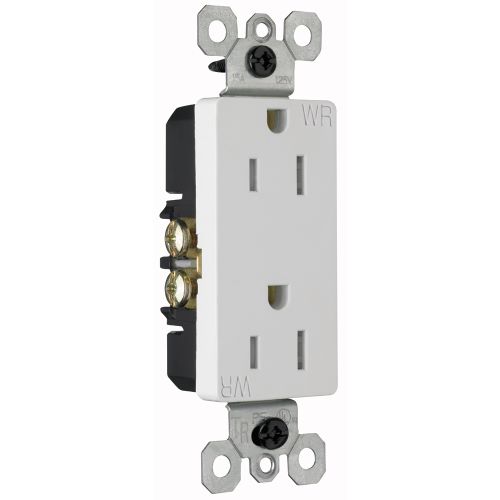

Pass & Seymour® 885TRWRW

Pass & Seymour® radiant® 885-TRWRW 2-Gang Decorator Duplex Tamper Resistant Weather Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Brand: Pass & Seymour®

Item ID: 527136

MPN: 885TRWRW

Login for Price

Features

  • Residential weather resistant receptacles are tamper resistant as required by National Electrical Code
  • WR markings on face per UL weather resistant requirements
  • Listed to the weather-resistant supplement of UL498 meeting demanding UL requirements including ultraviolet light exposure test, cold impact test, accelerated aging test, stringent material requirements for current-carrying parts
  • Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access
  • Side wire accepts 14 to 12 AWG solid wire
  • Push wire accepts 14 AWG solid only
  • Low profile face
  • Traditional contoured face
  • High impact resistant thermoplastic construction
  • Safer and more effective than plastic outlet caps
  • TR markings identify devices as tamper resistant
  • Screwless wallplate not included
  • Wire binding screws and mounting straps to ensure superior corrosion-resistance
  • Bare insulation
  • 1.3 in THK
  • Vertical orientation

Description

The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.

Pass & Seymour® radiant® Straight Blade Receptacle, 2-Gang Decorator Duplex Tamper Resistant Weather Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R, Commercial/Residential Grade, NEMA WD-1/WD-6 Enclosure, 30 deg F, Screw Terminal, Thermoplastic, White, 4.25 in H x 1.29 in W x 1 in D

Specifications

Amperage Rating

15 A

Color

White

Dimensions

4.25 in H x 1.29 in W x 1 in D

Enclosure

NEMA WD-1/WD-6

Grade

Commercial/Residential

Material

Thermoplastic

NEMA Rating

NEMA 5-15R

Number of Poles

2

Number of Wires

3

Temperature Rating

30 deg F

Terminal Type

Screw

Type

2-Gang Decorator Duplex Tamper Resistant Weather Resistant

Voltage Rating

125 VAC

Standard Approval

UL 498|CSA C22.2 No. 42|cULus Listed|Trade Agreement Act Compliant

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_885TRWRW_Brochure.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_885TRWRW_Instruction_Installation.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_885TRWRW_Data_Sheet.pdf

Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3bed96740a0d45a04268fee006640daa55e96a16a1e9975ccd7e62eeca6de5d7.pdf
