Legrand® ADTH703TUW4

Legrand® Adorne® Touch™ ADTH703TUW4 Universal Dimmer Switch, 120 V AC, 15 A, 1 Poles, 3-Way Operation, White

Brand: Legrand®

Item ID: 475060

MPN: ADTH703TUW4

Login for Price

Features

  • Helps fight the growth of stain and odor-causing bacteria through the invisible and continuous product protection of Microban antimicrobial technology
  • For complete installation, device must be paired with an adorne screwless Wall Plate
  • Available in a range of contemporary colors and stunning finishes
  • Installs in 15 min or less, fitting into an existing electrical box, neutral wire required
  • Works with virtually any 120V dimmable bulb or fixture (excludes 0-10V)
  • Self-calibrates when you select your fixture's lighting type, automatically setting the appropriate minimum voltage to eliminate flicker and poor performance
  • Constant memory feature returns lights to their previous level when turning back on or after a power outage
  • More color options available to fit any style, including finishes to match current hardware and lighting trends

Description

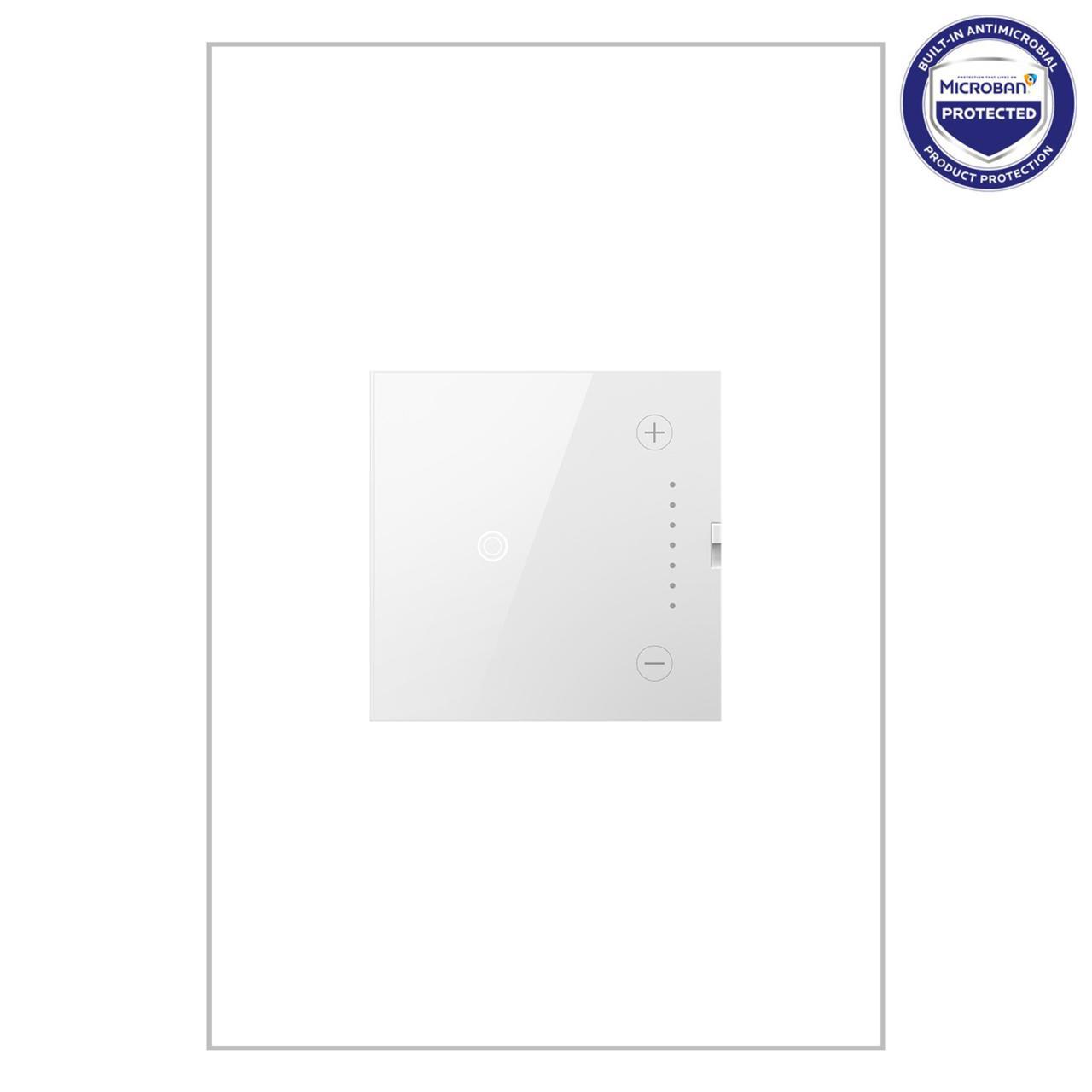

Adorne® Touch Style Dimmers feature a stunning translucent face and operates just like an iPhone - simply touch your finger on the circle to turn the lights on and off, or use the arrows on the right to dim them. The Touch interface is created using a unique translucent material. In multi-gang installations, we recommend pairing Touch switches and dimmers for optimal consistency. Ideal for typical residential and light commercial applications, the Tru-Universal Dimmer is the simple solution to all your dimming challenges. It works with any 120V dimmable lamp, load and fixture.

Legrand® Adorne® Touch™ Dimmer Switch, Universal, 120 V AC, 15 A, 700 W Power, 60 Hz Frequency, 1 Pole, ELV/Fluorescent/Halogen/Incandescent/LED/MLV Lamp, Operation Mode: 3-Way, Slide/Touch Control, Polycarbonate/Synthetic, White, 1.77 in H x 1.77 in W x 1.2 in D Dimensions

Specifications

Amperage Rating

15 A

Color

White

Control

Slide/Touch

Dimensions

1.77 in H x 1.77 in W x 1.2 in D

Frequency Rating

60 Hz

Lamp Type

ELV/Fluorescent/Halogen/Incandescent/LED/MLV

Material

Polycarbonate/Synthetic

Number of Poles

1

Operation Mode

3-Way

Power Rating

700 W

Type

Universal

Voltage Rating

120 V AC

Standard Approval

cULus Listed|ECCN: EAR99

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_ADWR703TUG4_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_ADWR703TUG4_Catalog.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_R26USBCC6W_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_R26USBCC6W_Installation_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_AWP3GWHW4_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_AWP3GWHW4_User_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_ADTH703TUW4_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Legrand_ADTH703TUW4_Specification_Sheet.pdf

videoVIDEO LINK https://www.youtube.com/watch?v=4V9ugqpq2x0

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_R26USBACLA_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_R26USBACLA_Warranty.pdf
