Pass & Seymour® CR20W

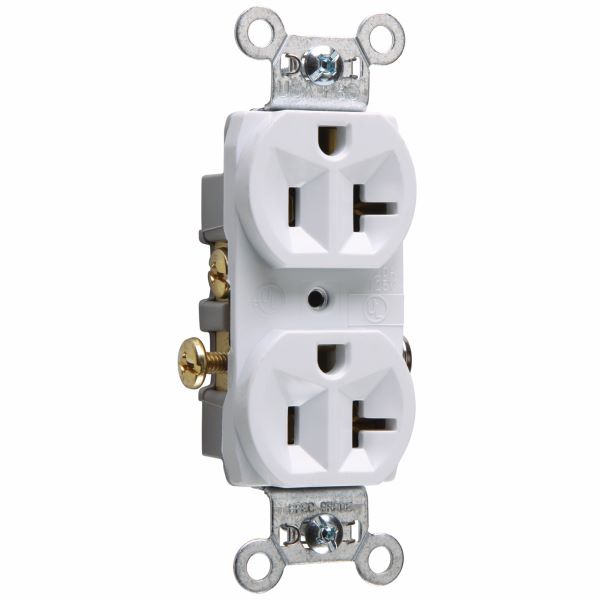

Pass & Seymour® CR20W Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Brand: Pass & Seymour®

Item ID: 527154

MPN: CR20W

Login for Price

Features

  • Corrosion resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
  • Wire ground connection
  • Side wire, duplex, tri-driver terminal and mounting screws
  • Tri-drive terminal and mounting screws
  • 0.032 in THK brass triple wipe power contacts for lasting retention
  • Easily accessed break OFF line contact connecting tab for fast and easy split-circuit wiring
  • 8-hole internal screw pressure plate back wire terminals accept 10 to 14 AWG solid or stranded copper or copper clad conductors
  • Terminal compartments isolated from each other for positive conductor containment
  • Impact resistant nylon face
  • Auto-ground clip assures positive ground

Description

Pass & Seymour® Straight Blade Receptacle, Duplex, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Residential Grade, -40 to 50 deg C, Side Wire Terminal, Thermoplastic, White, 3.3 in H x 1.32 in W x 0.78 in D Dimensions

Specifications

Amperage Rating

20 A

Color

White

Dimensions

3.3 in H x 1.32 in W x 0.78 in D

Grade

Commercial/Residential

Horsepower

1 hp

Material

Thermoplastic

NEMA Rating

NEMA 5-20R

Number of Poles

2

Number of Wires

3

Temperature Rating

-40 to 50 deg C

Terminal Type

Side Wire

Type

Duplex

Voltage Rating

125 VAC

Standard Approval

UL 498|CSA C22.2 No. 42

Documentation

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e0b7feb4b93ccb009b28584de1e07ccddacd925d4f9e730854b2124d49e1c3c0.pdf

Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3bed96740a0d45a04268fee006640daa55e96a16a1e9975ccd7e62eeca6de5d7.pdf
