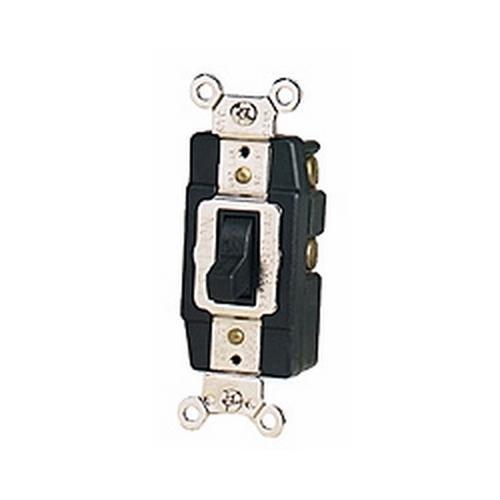

Leviton® 1288-W

• Positive switching action with center OFF position
• Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
• Clamp type terminals accept up to 10 AWG copper wire
• Full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating
• 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating

Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top of the line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Leviton® Toggle Switch, Center OFF, 120/277 VAC, 30 A, 1/2, 2 hp Power, SPDT Contact Configuration, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Box/Panel Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.37 in W x 2.29 in D Dimensions
