Leviton® 2310

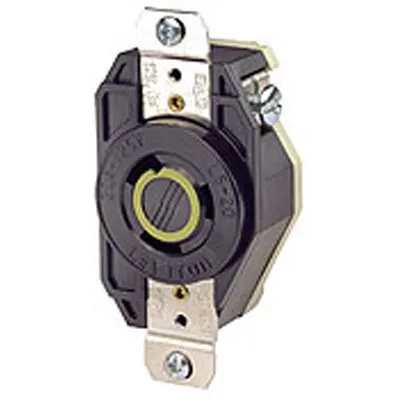

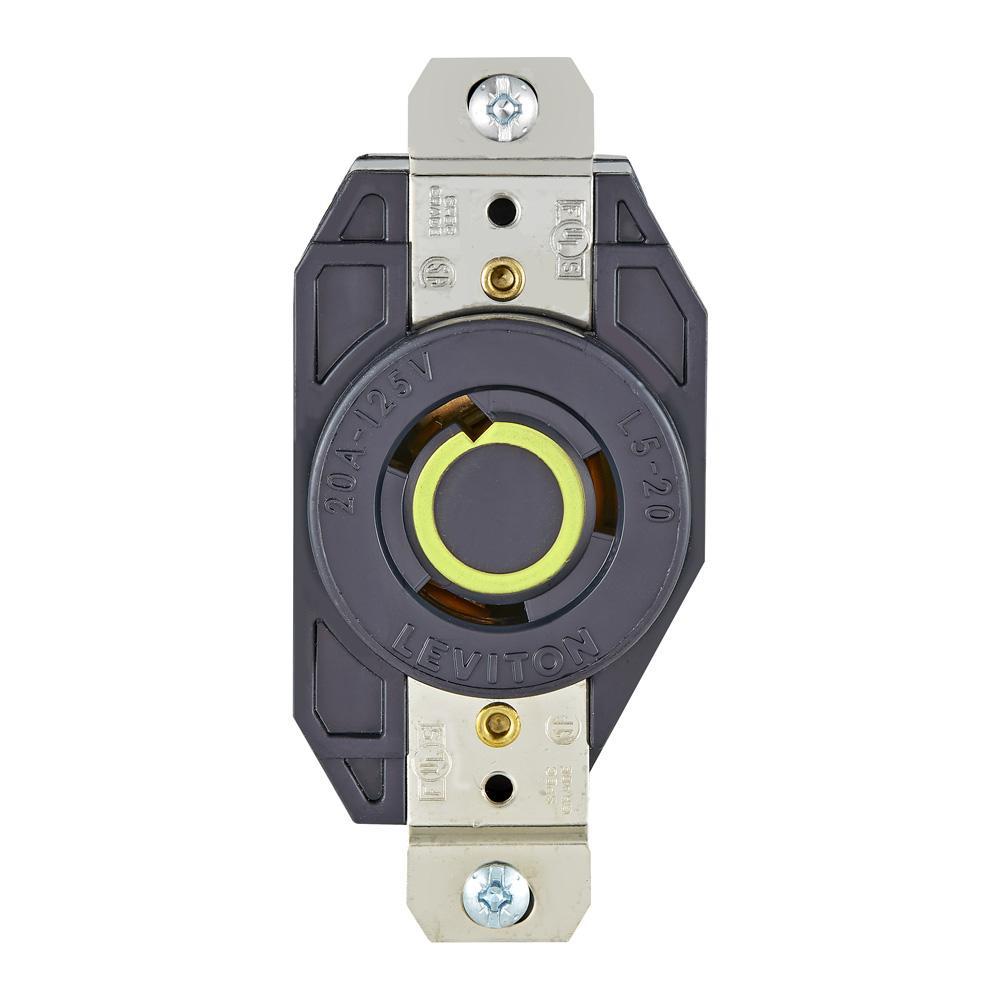

Leviton® 2310 Grounding Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Brand: Leviton®
Item ID: 17336
MPN: 2310
Login for Price
Features
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
Description
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
Leviton®, 2310, Locking Receptacle, Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Specifications
Amperage Rating |
20 A |
Color |
Black |
Dimensions |
3.63 in H x 1.69 in W x 1.31 in D |
Grade |
Industrial |
Horsepower |
1 hp |
Material |
Polybutylene Terephthalate |
NEMA Rating |
NEMA L5-20R |
Number of Poles |
2 |
Number of Wires |
3 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Back/Side Wire |
Type |
Grounding |
Voltage Rating |
125 VAC |
Standard Approval |
NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating |
Application |
Commercial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_2310_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_2310_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_2310_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_2310_Installation_Instructions.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_2310_Installation_Instructions.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3a73dbd86083421128ff9c488446518e8ec6542a48b23606ce0f214b3c75c9f5.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3a73dbd86083421128ff9c488446518e8ec6542a48b23606ce0f214b3c75c9f5.pdf
