Leviton® 2323

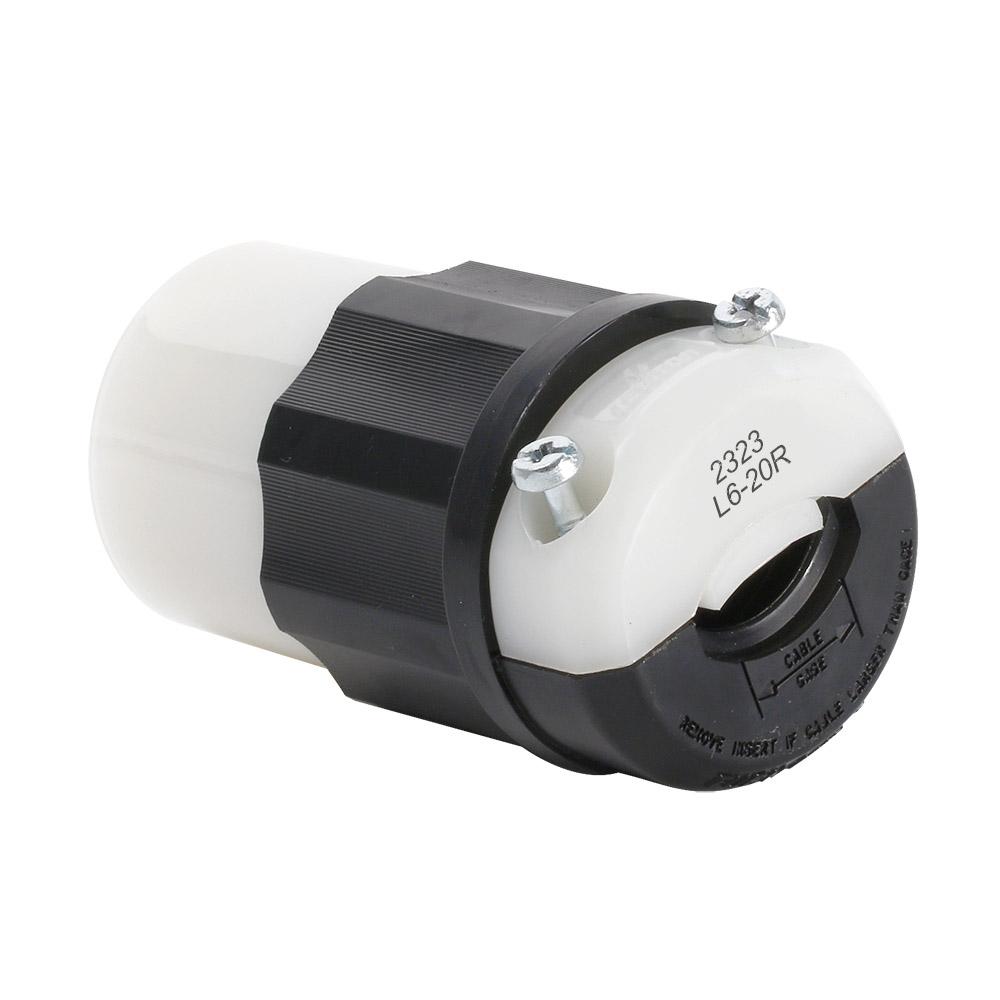

Leviton® 2323 1-Phase Grounding Cable Mount Locking Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Brand: Leviton®
Item ID: 17342
MPN: 2323
Login for Price
Description
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®, 2323, Locking Connector, 1-Phase Grounding Cable Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-20R NEMA Rating, Industrial Grade, 0.385 to 0.78 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in L Dimensions
Specifications
Amperage Rating |
20 A |
Color |
Black/White |
Cord Diameter |
0.385 to 0.78 in |
Dimensions |
28 in Dia x 3.53 in L |
Grade |
Industrial |
Horsepower |
2 hp |
Material |
Nylon |
NEMA Rating |
NEMA L6-20R |
Number of Poles |
2 |
Number of Wires |
3 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Screw |
Type |
1-Phase Grounding Cable Mount |
Voltage Rating |
250 VAC |
Standard Approval |
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating |
Application |
Industrial Applications |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_2756_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aa168f698c930af926b5a63773fe85a74c7f837a5c0779acecf486b68f9e8c43.pdf
