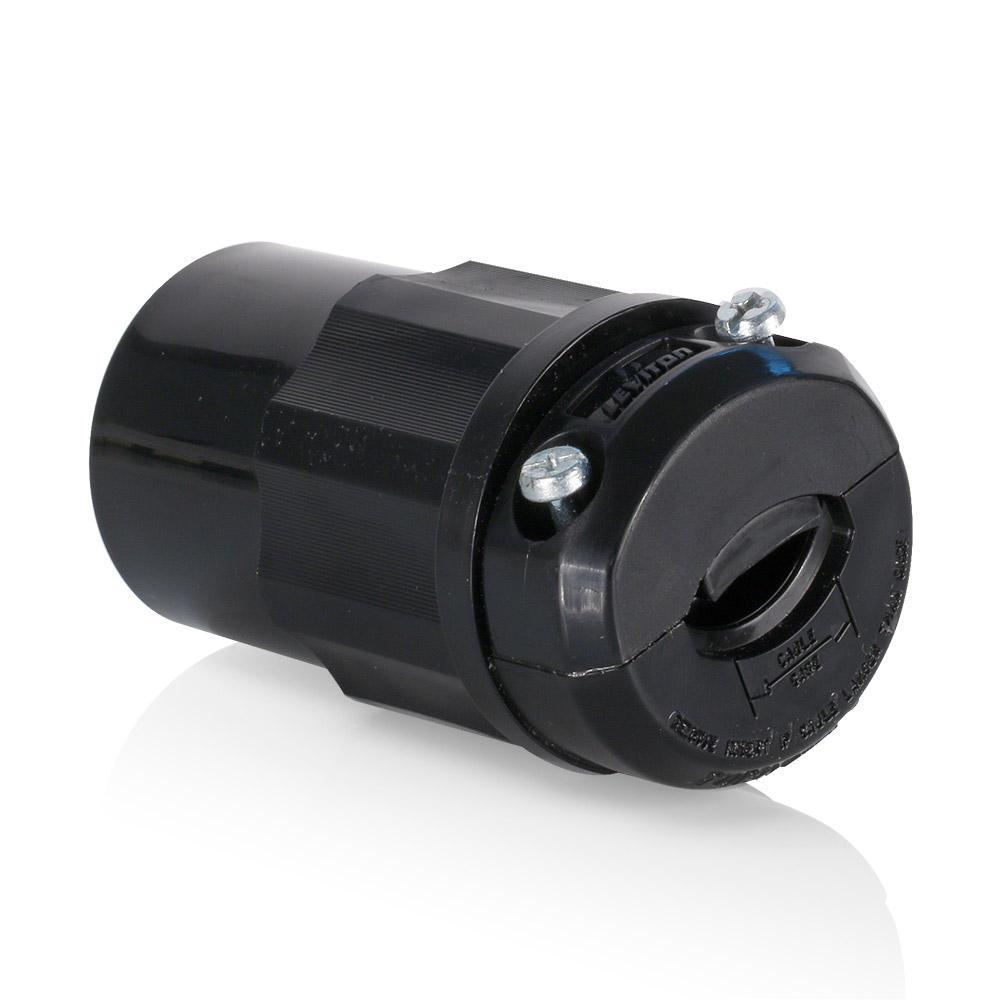

Leviton® 2423
Leviton® 2423 3-Phase Grounding Cable Mount Locking Connector, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
Brand: Leviton®
Item ID: 17348
MPN: 2423
Login for Price
Description
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®, 2423, Locking Connector, 3-Phase Grounding Cable Mount, 250 VAC, 20 A, 3-1/2 hp, 3 Pole, 4 Wires, NEMA L15-20R NEMA Rating, Industrial Grade, 0.595 to 0.895 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in H Dimensions
Specifications
Amperage Rating |
20 A |
Color |
Black/White |
Cord Diameter |
0.595 to 0.895 in |
Dimensions |
28 in Dia x 3.53 in H |
Grade |
Industrial |
Horsepower |
3-1/2 hp |
Material |
Nylon |
NEMA Rating |
NEMA L15-20R |
Number of Poles |
3 |
Number of Wires |
4 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Screw |
Type |
3-Phase Grounding Cable Mount |
Voltage Rating |
250 VAC |
Standard Approval |
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating |
Application |
Industrial Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_24f26ce3a39a30b748af71b29fbb32432748511157884f6c3aa3e98058102102.pdf
VIDEO LINK
https://www.youtube.com/watch?v=WmzJEPtYo-0
