Leviton® 2441

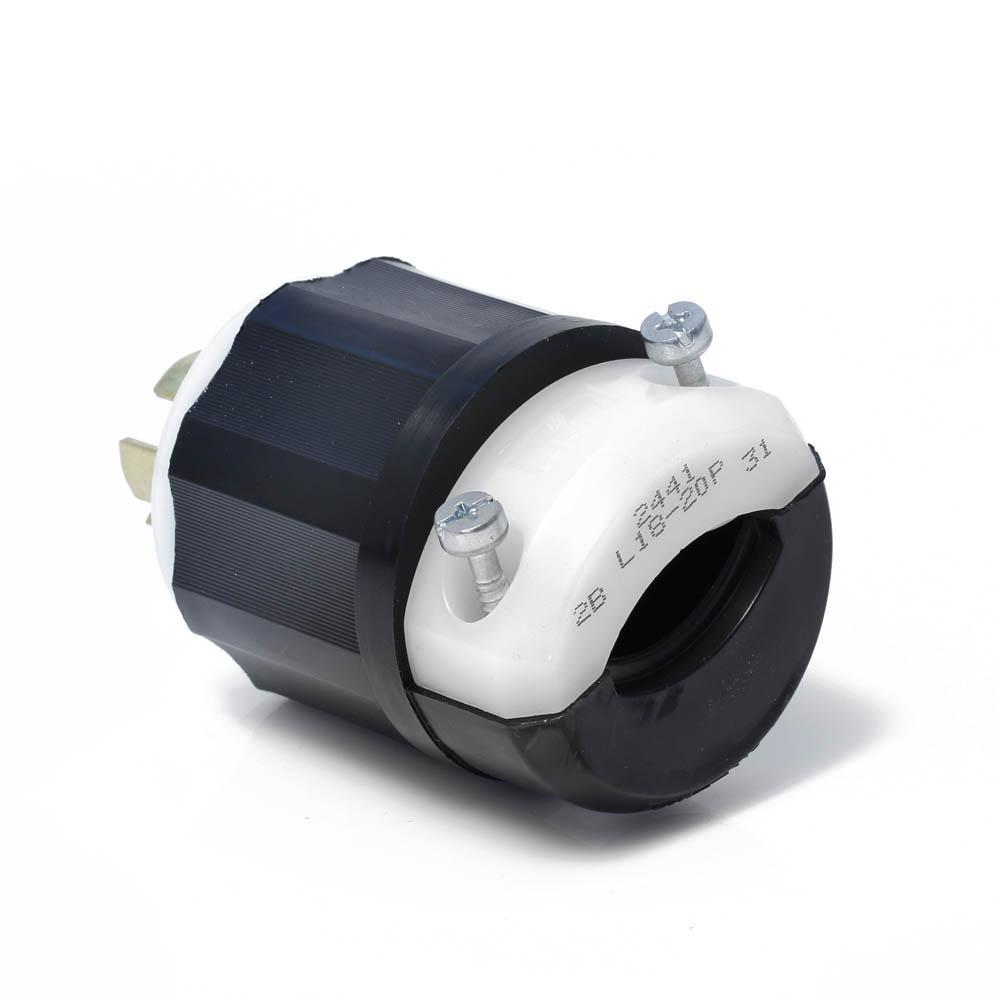

Leviton® 2441 3-Phase Non-Grounding Cable Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Black/White
Brand: Leviton®
Item ID: 17349
MPN: 2441
Login for Price
Description
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®, 2441, Locking Plug, 3-Phase Non-Grounding Cable Mount, 120/208 VAC, 20 A, 2 hp, 4 Pole, 4 Wires, NEMA L18-20P NEMA Rating, Industrial Grade, 0.595 to 0.895 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 2.08 Dia x 2.47 in H Dimensions
Specifications
Amperage Rating |
20 A |
Color |
Black/White |
Cord Diameter |
0.595 to 0.895 in |
Dimensions |
2.08 Dia x 2.47 in H |
Grade |
Industrial |
Horsepower |
2 hp |
Material |
Nylon |

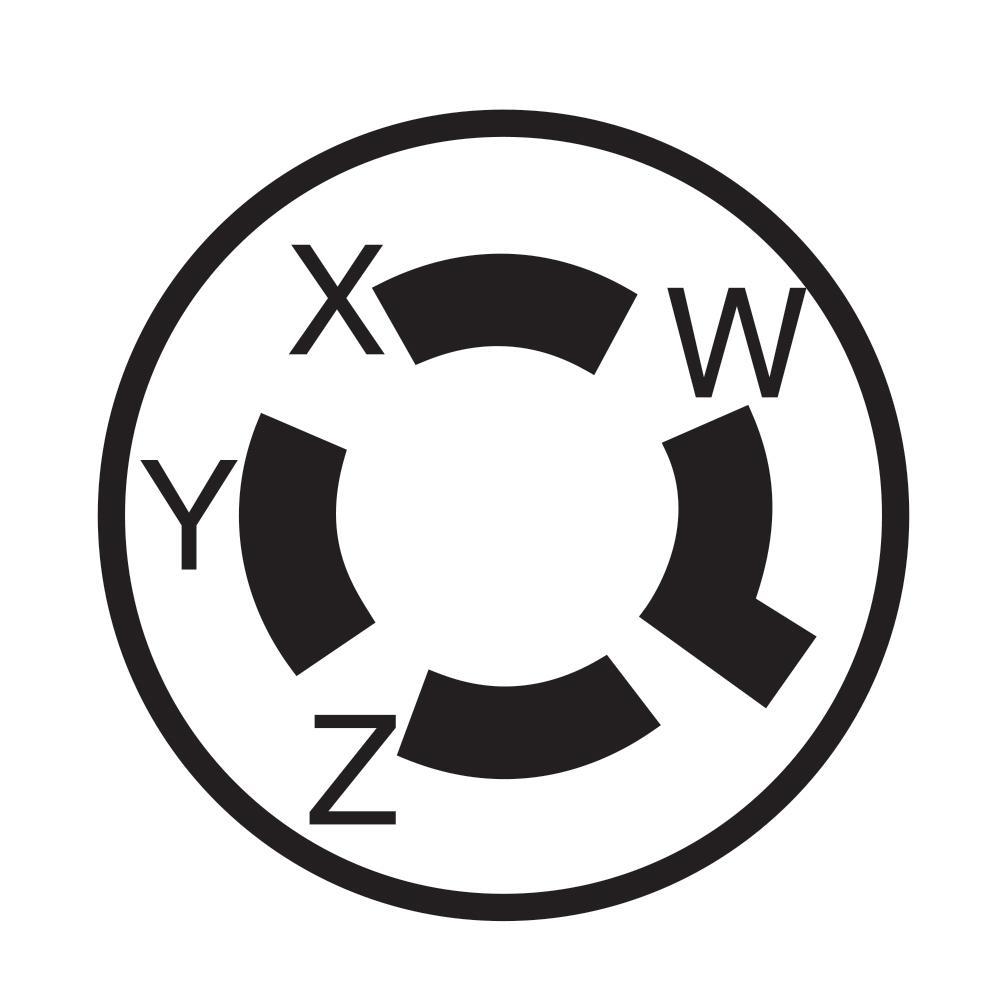

NEMA Rating |
NEMA L18-20P |
Number of Poles |
4 |
Number of Wires |
4 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Screw |
Type |
3-Phase Non-Grounding Cable Mount |
Voltage Rating |
120/208 VAC |
Standard Approval |
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating |
Application |
Industrial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_79891c039cf1082ce34c5262ef37634acf919893e2d4e31aba53ee0e651fe63b.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_89a2d727667439c26f3a2903579b0dbc418ebf24f9cbf764f602f34537d76b40.pdf
