Leviton® 26CM-11

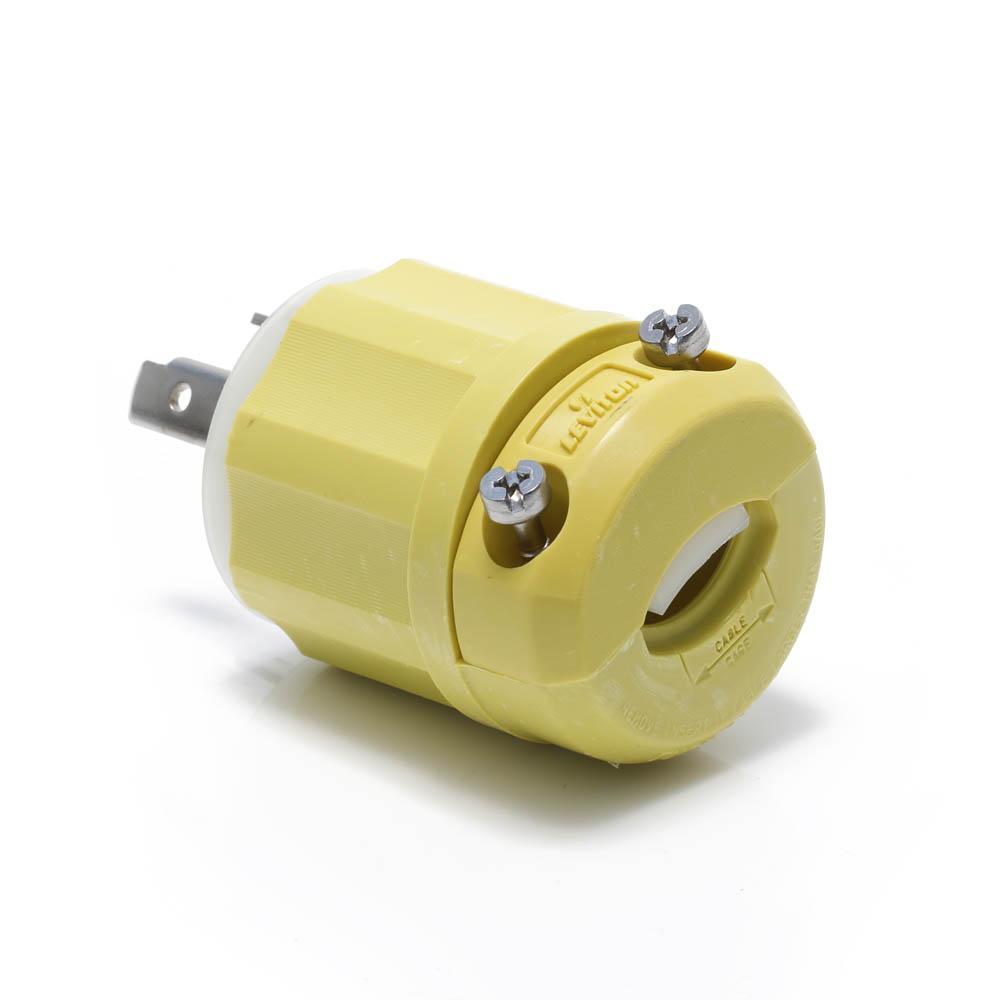

Leviton® 26CM-11 Cable Mount Grounding Locking Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, White/Yellow
Brand: Leviton®
Item ID: 401942
MPN: 26CM-11
Login for Price
Description
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®, 26CM-11, Locking Plug, Cable Mount Grounding, 125 VAC, 30 A, 2 Pole, 3 Wires, NEMA L5-30P NEMA Rating, Industrial Grade, 0.218 to 0.43 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, White/Yellow, 2.22 in Dia x 2.7 in H Dimensions
Specifications
Amperage Rating |
30 A |
Color |
White/Yellow |
Cord Diameter |
0.218 to 0.43 in |
Dimensions |
2.22 in Dia x 2.7 in H |
Grade |
Industrial |
Material |
Nylon |
NEMA Rating |

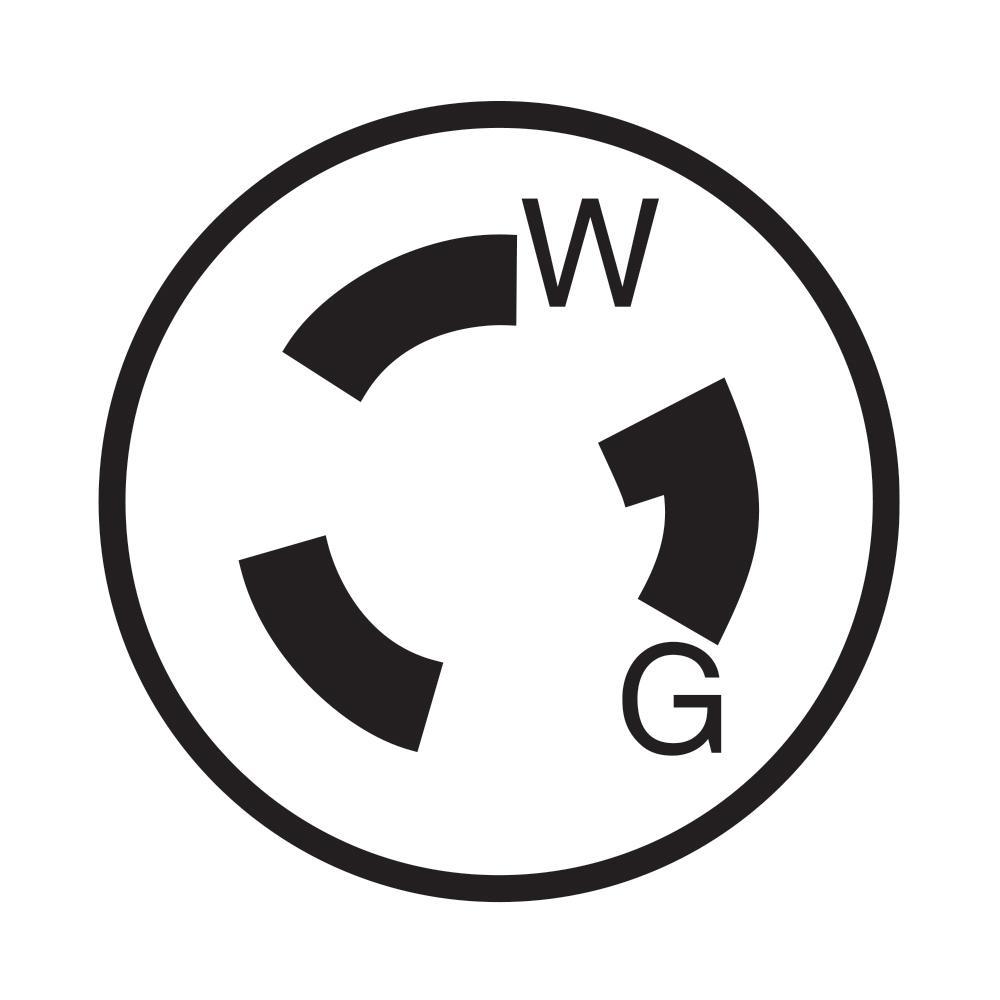

NEMA L5-30P |
Number of Poles |
2 |
Number of Wires |
3 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Screw |
Type |
Cable Mount Grounding |
Voltage Rating |
125 VAC |
Standard Approval |
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|UL94 V-2 Flammability Rating |
Application |
Industrial Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ea68ee487203dcb935b36f5cc87a3de53099b0181a50e9ea5a394078f2c77b5e.pdf
