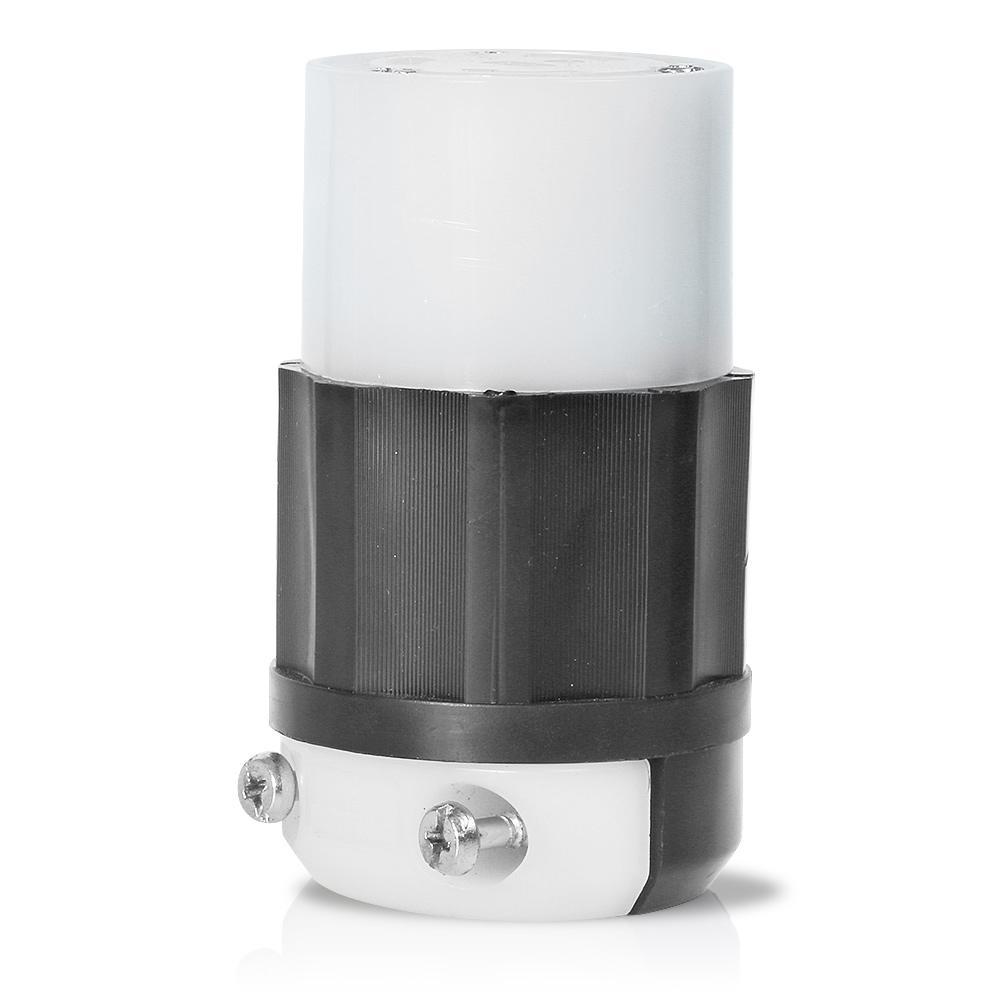

Leviton® 2723
Leviton® 2723 3-Phase Grounding Cable Mount Locking Connector, 250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Brand: Leviton®
Item ID: 17369
MPN: 2723
Login for Price
Description
Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
Leviton®, 2723, Locking Connector, 3-Phase Grounding Cable Mount, 250 VAC, 30 A, 3-1/2 hp, 3 Pole, 4 Wires, NEMA L15-30R NEMA Rating, Industrial Grade, 0.595 to 1.15 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 2.22 in Dia x 3.78 in L Dimensions
Specifications
Amperage Rating |
30 A |
Color |
Black/White |
Cord Diameter |
0.595 to 1.15 in |
Dimensions |
2.22 in Dia x 3.78 in L |
Grade |
Industrial |
Horsepower |
3-1/2 hp |
Material |
Nylon |
NEMA Rating |
NEMA L15-30R |
Number of Poles |
3 |
Number of Wires |
4 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Screw |
Type |
3-Phase Grounding Cable Mount |
Voltage Rating |
250 VAC |
Standard Approval |
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating |
Application |
Industrial Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a08e74ae6d0c581090e3be3b7e3a7ad92aa9620a2546d89b0d61fc075aa1056b.pdf
