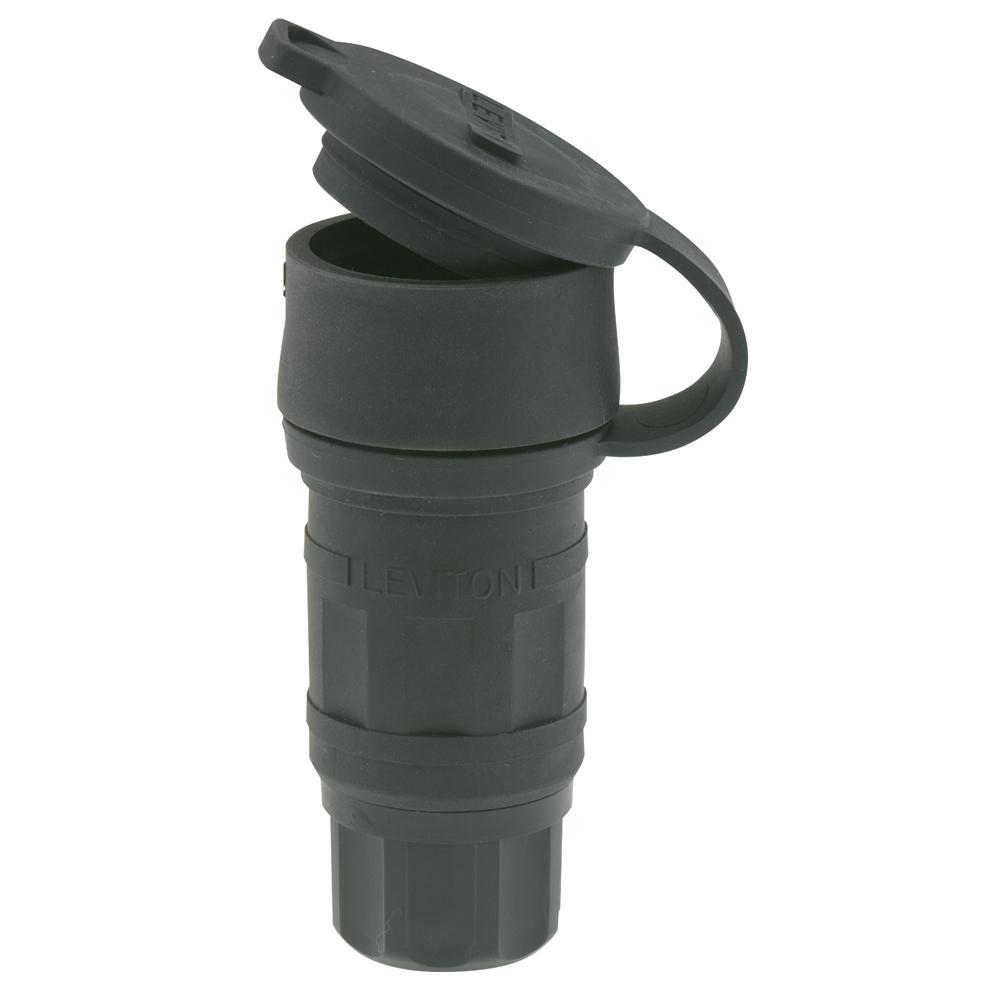

Leviton® 29W75-B
Leviton® Wetguard® 29W75-B Grounding Watertight Locking Connector With Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Black
Brand: Leviton®
Item ID: 521916
MPN: 29W75-B
Login for Price
Description
Leviton® Wetguard® products are the most versatile and well engineered watertight devices ON the market. They meet IP67 and NEMA ratings for water ingress protection and offer many significant advantages over competitive brands.
Leviton® Wetguard® Locking Connector, Grounding Watertight, 250 VAC, 30 A, 3 Poles, 4 Wires, NEMA L15-30R, Industrial Grade, 5/8 to 1-1/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, Santoprene TPV, Black, 2.75 in Dia x 5.52 in L
Specifications
Amperage Rating |
30 A |
Color |
Black |
Cord Diameter |
5/8 to 1-1/8 in |
Dimensions |
2.75 in Dia x 5.52 in L |
Grade |
Industrial |
Material |
Santoprene TPV |
NEMA Rating |
NEMA L15-30R |
Number of Poles |
3 |
Number of Wires |
4 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Screw |
Type |
Grounding Watertight |
Voltage Rating |
250 VAC |
Standard Approval |
ANSI C73|CSA C22.2 No. 42 File No. LR406|UL 498|NEMA WD6|NOM 057 |
Application |
Industrial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wetguard_27W09_B_Brochure.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wetguard_27W09_B_Instruction_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dffab06c6bbb151a8879c340183e77e2df33e975aa413e887b28d0df5c315dd3.pdf
