Leviton® 40681-W

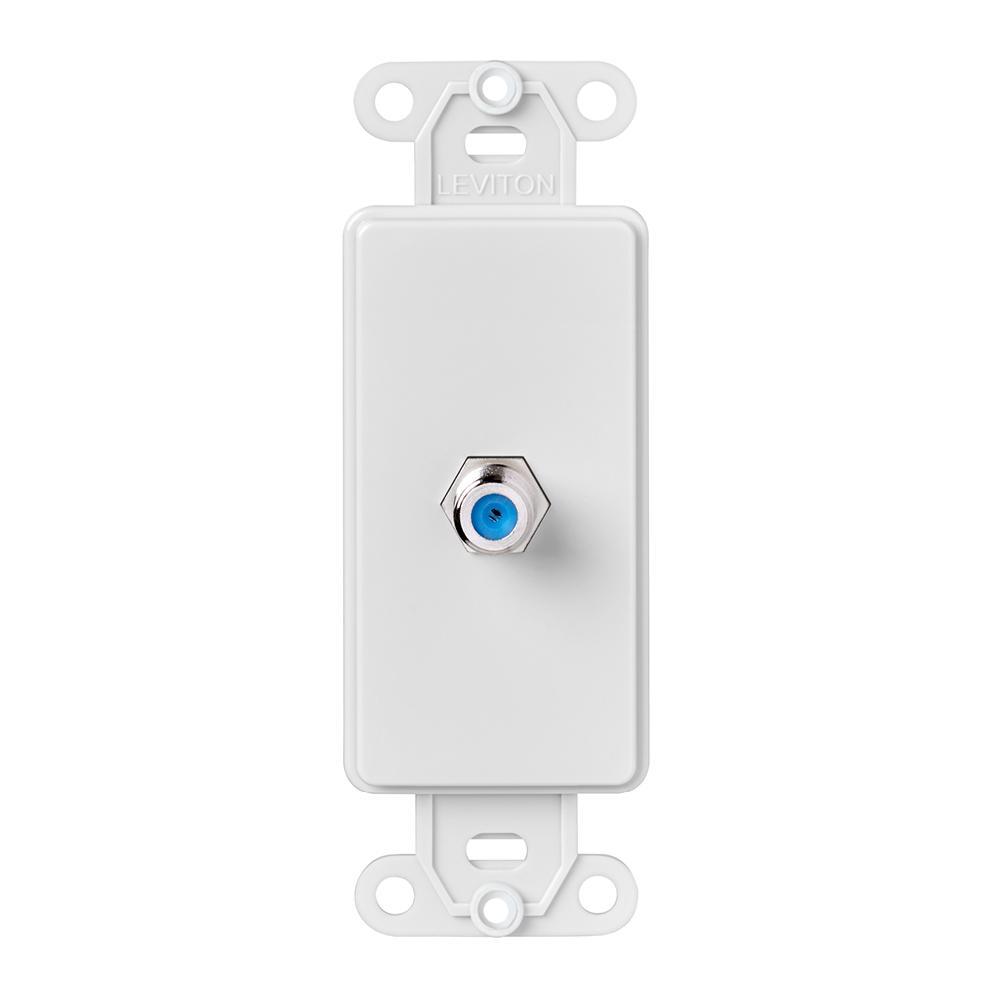

Leviton® Decora® 40681-W Rectangular Single CATV Video Wall Jack, F Connector, 1 Port, 1 Gang, Flush Mount, White
Brand: Leviton®
Item ID: 17439
MPN: 40681-W
Login for Price
Features
- All wall jacks can be used with single or multiple gang wall boxes
- Modular jacks have 50 micro in hard gold plated phosphor bronze spring wire contacts
- F-connector can be used for 75 Ohm cable connections for televisions and VCR's
- Decora® Plus duplex jack uses snap-in modules with quick-connect insulation displacement terminals for 22 or 24 AWG wire
Description
Leviton® award winning line of designer styled devices enhances every interior, from traditional to contemporary. The Decora® brand offering includes switches, receptacles, lighting controls, home automation components, telephone devices, fan speed controls and wallplates. All Decora® brand devices are provided in a broad range of colors to match or contrast with any decor.
Leviton® Decora® CATV Video Wall Jack, Rectangular Single, Series: 40681, F Connector, 1 Gang, 1 Port, Flush Mount, For Use With: Decora® Plus Screwless Snap-On Wallplates and Decora® Standard Designer Wallplates, High Impact Plastic, White, 3 in H x 1.8 in W x 0.5 in D
Specifications
Color |
White |
Connector Type |
F Connector |
Dimensions |
3 in H x 1.8 in W x 0.5 in D |
Material |
High Impact Plastic |
Mounting Type |
Flush |
Number of Gangs |
1 |
Number of Ports |
1 |
Series |
40681 |
Suitable For Use With |
Decora® Plus Screwless Snap-On Wallplates and Decora® Standard Designer Wallplates |
Type |
Rectangular Single |
Standard Approval |
UL 109712|CSA 80287|NOM 057|UL 1863|FCC Part 68|UL94 V-0 Flammability Rated |
Application |
Commercial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_40681_B_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_333756d047d1eb31cc6342129d0ee2d9b037a2f8336138e01285adfaf16d5e90.pdf
