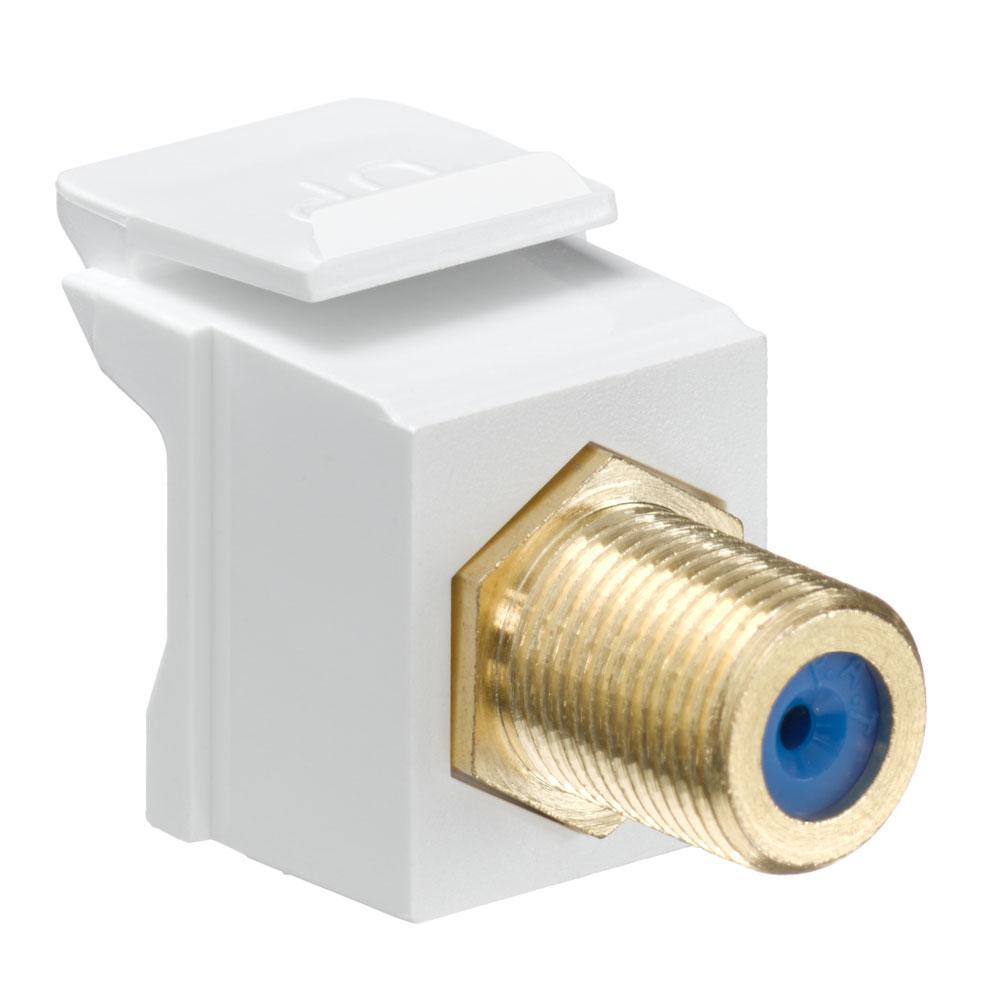

Leviton® 40831-FWG
Leviton® QuickPort® 40831-FWG Feed-Through Connector, Female to Female/F-Type Connector, Coaxial Cable
Brand: Leviton®
Item ID: 78906
MPN: 40831-FWG
Login for Price
Features
- Compatible with all QuickPort® wallplates and housings
- Frequency range equals DC to 3 GHz
- Female to female adapter for quick screw-on connections
- Gold plated connector body with a gold plated center conductor contact
Description
Nickel or gold plated female to female 75 Ohm connector features screw-on front and rear connections. Pass through design applications: TV, VCR, DVD, satellite and home theater. Cable: coaxial cable terminated with F-plugs. QuickPort® F-Type adapters snap into any QuickPort® housing, including flush and surface mount outlets, multimedia outlet system (with adapter), Decora® inserts, patch panels and patch blocks.
Leviton® QuickPort® Connector, Feed-Through, Female to Female/F-Type Connector, Coaxial Cable, Flush/Surface Mounting, Die Cast Zinc, White, Gold Plated
Specifications
Cable Type |
Coaxial |
Color |
White |
Connector Type |
Female to Female/F-Type |
Finish |
Gold Plated |
Material |
Die Cast Zinc |
Mounting Type |
Flush/Surface |
Type |
Feed-Through |
Standard Approval |
cULus Listed|UL 1863|CAN/CSA C22.2 No. 182.4-1990|SCTE Compliant |
Application |
TV, VCR, DVD, Satellite and Home Theater Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_40831_FIG_Manual.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_40831_FIG_Technical_Bulletin.pdf
