Leviton® 4570-C

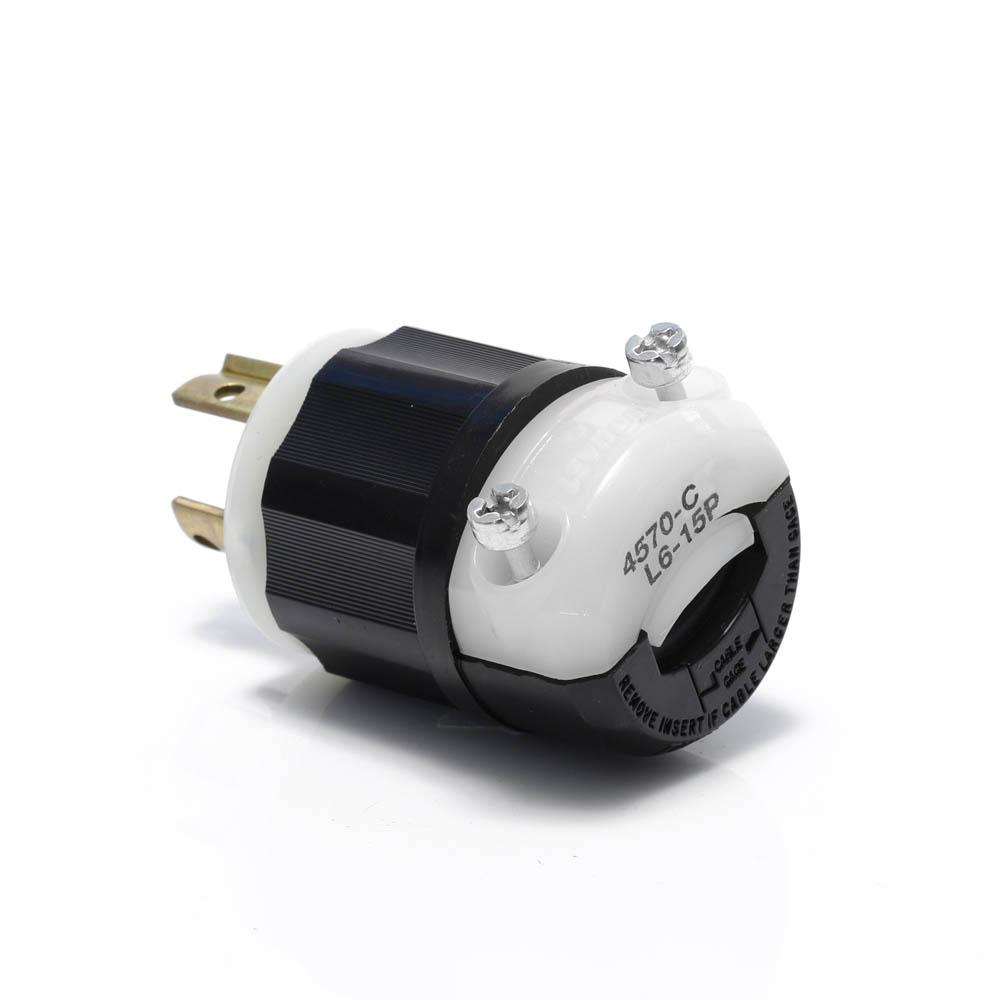

Leviton® 4570-C Cable Mount Grounding Locking Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Brand: Leviton®
Item ID: 17473
MPN: 4570-C
Login for Price
Features
- Certified for current interrupting at full rated current
Description
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®, 4570-C, Locking Plug, Cable Mount Grounding, 250 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA L6-15P NEMA Rating, Industrial Grade, 0.24 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 1.98 in H Dimensions
Specifications
Amperage Rating |
15 A |
Color |
Black/White |
Cord Diameter |
0.24 to 0.7 in |
Dimensions |
1.53 in Dia x 1.98 in H |
Grade |
Industrial |
Horsepower |
1-1/2 hp |
Material |
Nylon |
NEMA Rating |

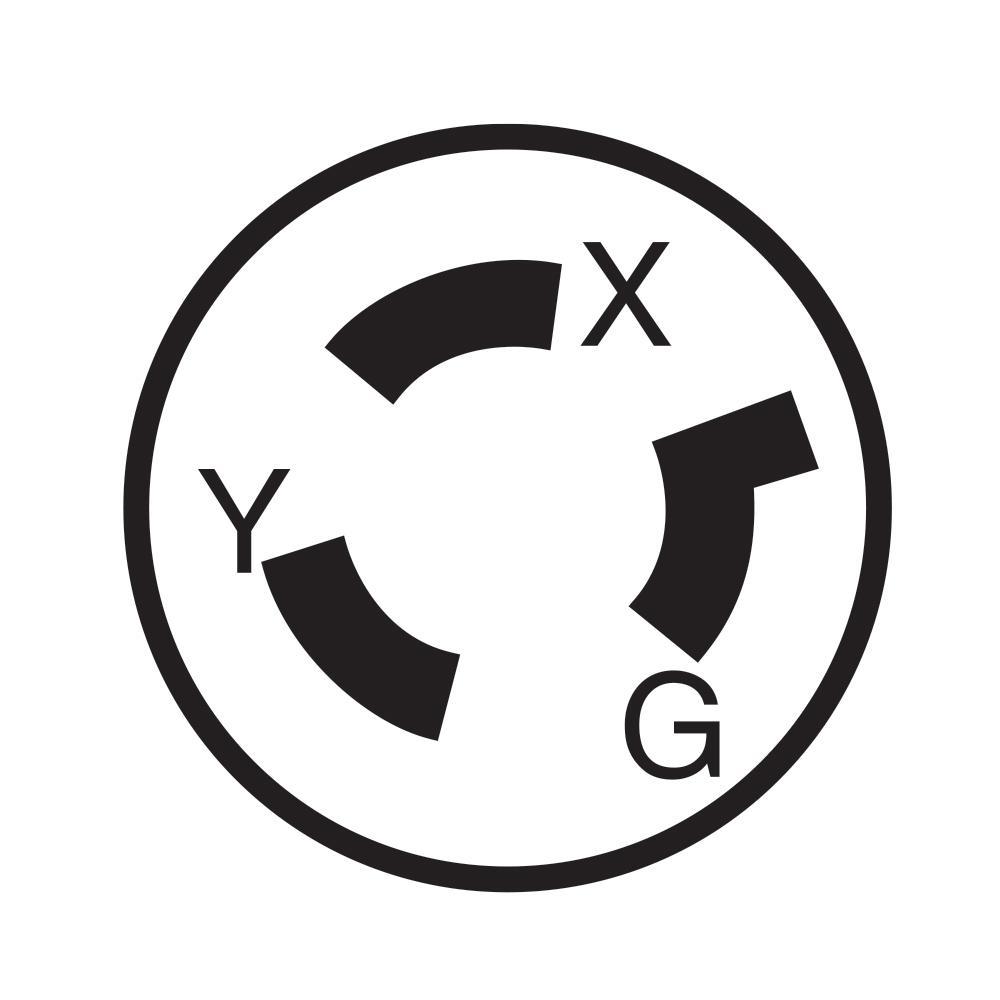

NEMA L6-15P |
Number of Poles |
2 |
Number of Wires |
3 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Screw |
Type |
Cable Mount Grounding |
Voltage Rating |
250 VAC |
Standard Approval |
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating |
Application |
Industrial Applications |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_7101_C_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_22e3bcee612158d6ce71c73941c63672f62c758d2648d31db5acde9b59ef250e.pdf
