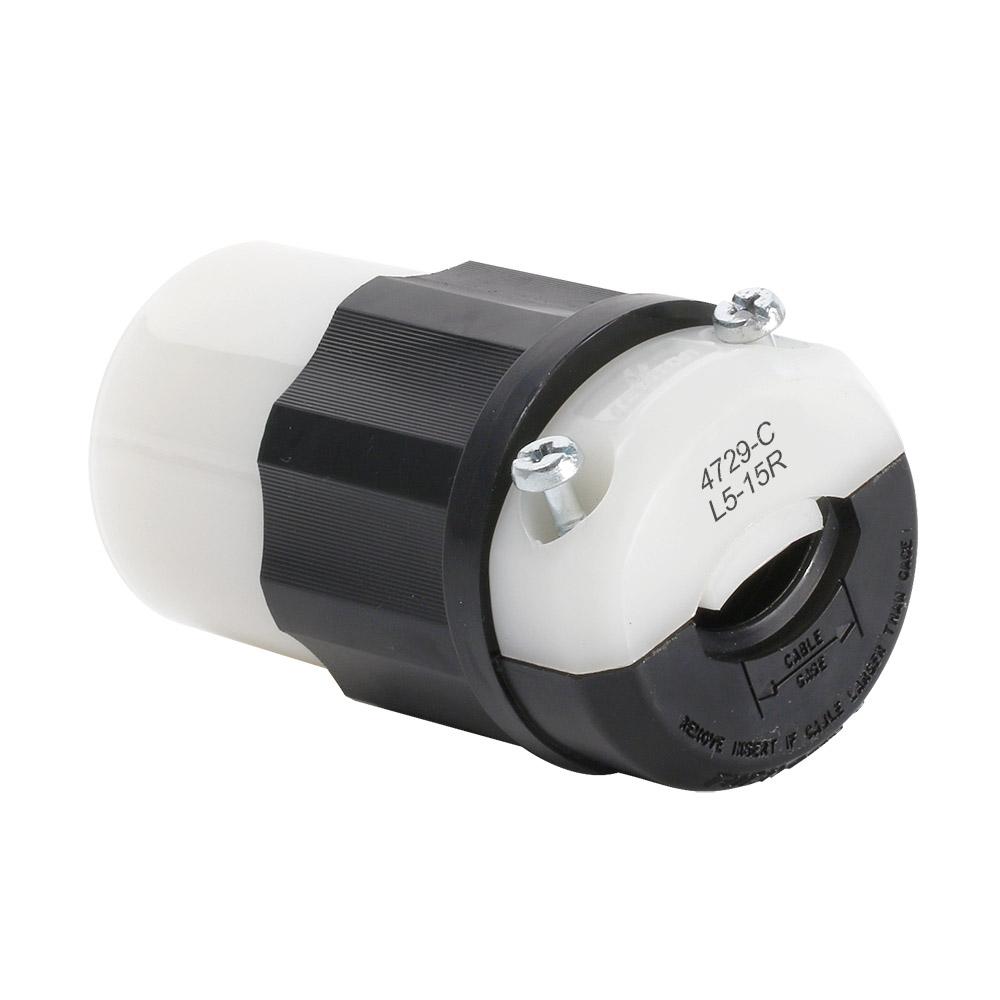

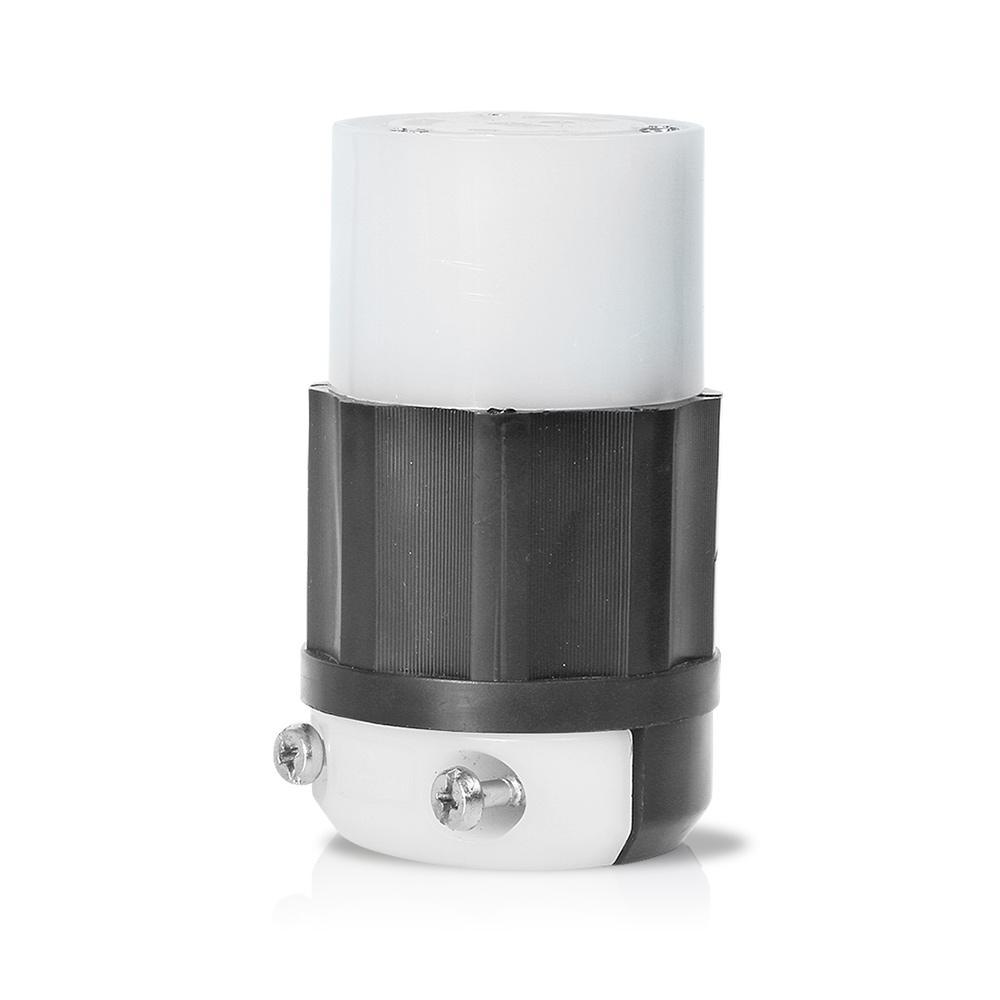

Leviton® 4729-C
Leviton® 4729-C Grounding Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Brand: Leviton®
Item ID: 17485
MPN: 4729-C
Login for Price
Features
- Super tough nylon body resists damage from severe impact, abrasion and chemicals
- Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
- Cord-clamp does not have to be disassembled from body for wiring - accepts all wire mesh connection strain reliefs
- 1-piece, rivetless 0.035 in THK brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
- Grounding
- 1-phase
- Cable mounting
- Impact modified nylon
- 18 to 10 AWG terminal accommodation
Description
Leviton®, 4729-C, Grounding Locking Connector, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA L5-15R NEMA Rating, Industrial Grade, 0.24 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 2.76 in H Dimensions
Specifications
Amperage Rating |
15 A |
Color |
Black/White |
Cord Diameter |
0.24 to 0.7 in |
Dimensions |
1.53 in Dia x 2.76 in H |
Grade |
Industrial |
Horsepower |
1/2 hp |
Material |
Nylon |
NEMA Rating |
NEMA L5-15R |
Number of Poles |
2 |
Number of Wires |
3 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Screw |
Type |
1-Phase Grounding |
Voltage Rating |
125 VAC |
Standard Approval |
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating |
Application |
Commercial Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_25W04_instructionsheet.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_7101_C_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b94060b686c82b525a3a5c005985b4c115a99318fd56630fbcd603422b42fcb0.pdf
