Leviton® 5050-P00

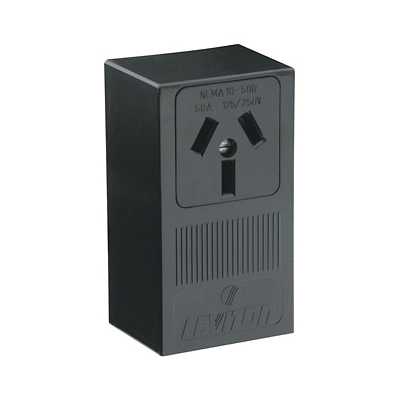

Leviton® 5050-P00 Non-Grounding Single Straight Blade Receptacle, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Black
Brand: Leviton®
Item ID: 17506
MPN: 5050-P00
Login for Price
Features
- Built of durable thermoplastic, Leviton® power receptacles come equipped with heavy gauge, double wire copper alloy contacts
- To ensure correct and speedy wiring, terminals have ID markings
Description
Leviton® Straight Blade Receptacle, Non-Grounding Single, 125/250 VAC, 30 A, 3 hp, 3 Pole, 3 Wires, NEMA 10-50R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black, 4.82 in H x 2.68 in W x 2.04 in D Dimensions
Specifications
Amperage Rating |
30 A |
Color |
Black |
Dimensions |
4.82 in H x 2.68 in W x 2.04 in D |
Grade |
Industrial |
Horsepower |
3 hp |
Material |
Thermoplastic |
NEMA Rating |
NEMA 10-50R |
Number of Poles |
3 |
Number of Wires |
3 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Side Wire |
Type |
Non-Grounding Single |
Voltage Rating |
125/250 VAC |
Standard Approval |
UL 498 File No. E13399|CSA C22.2 No. 42 File No. 152105|ANSI C-73|NOM 057|NEMA WD-6|UL 94 V-2 Flammability Rating |
Application |
For all wallplates with 2.15 in Dia center hole |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5050_P00_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5050_P00_Manual.pdf
