Leviton® 5269E
Leviton® 5269E Straight Blade Connector, 125 V, 15 A, 2 Poles, 3 Wires, Black/White
Brand: Leviton®
Item ID: 575635
MPN: 5269E
UPC: 078477021286
Login for Price
Description

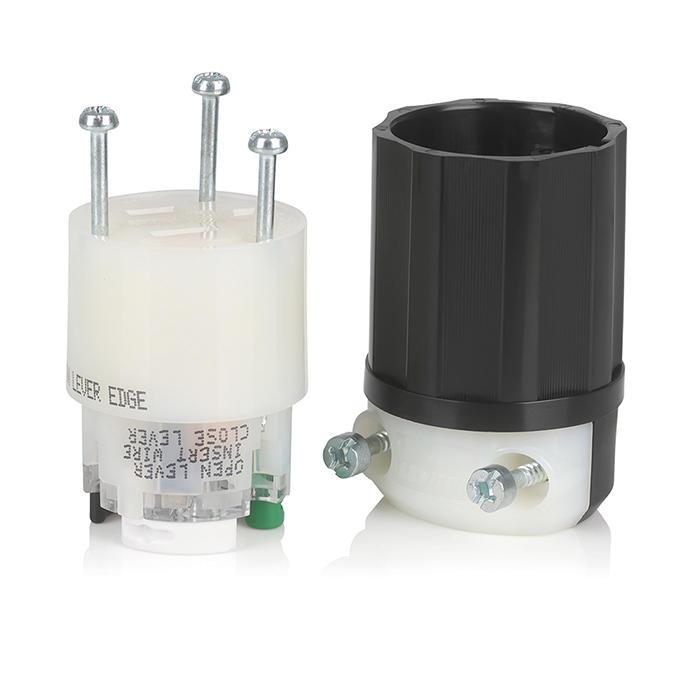

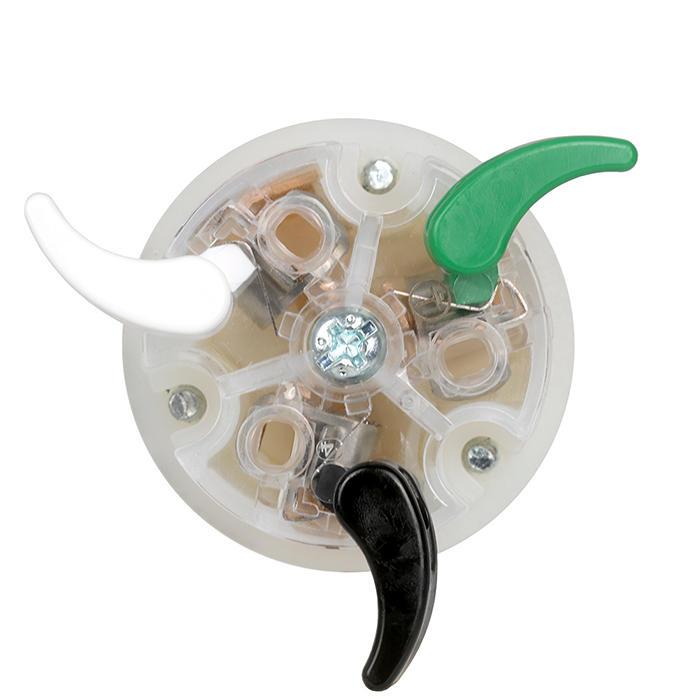

| Leviton 5269E Black & White Lever Edge straight-blade connector, NEMA 5-15R, 15 A, 125 V, 2-pole, 3-wire grounding. Color-coded lever terminals accept 14-10 AWG conductors and permit tool-free wire termination. The industrial-grade body is black and white. |
Specifications
Amperage Rating |
15 A |
Color |
Black/White |
Grade |
Industrial |
Material |
Nylon |
NEMA Rating |
NEMA 5-15R |
Number of Poles |
2 |
Number of Wires |
3 |
Type |
Straight Blade |
Voltage Rating |
125 V |
Standard Approval |
NEMA WD-6|ANSI C-73|CSA C22.2 No. 42 File E13393|UL Fed Spec WC-596 File E13393 |
Application |
Designed for simple installations, time savings, superior performance and long-lasting reliability |
Documentation
Leviton Black & White Lever Edge Plug and Connector Instruction Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5266E_Installation_Manual.pdf
Lever Edge Brochure Q-1537 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5266E_User_Manual.pdf
