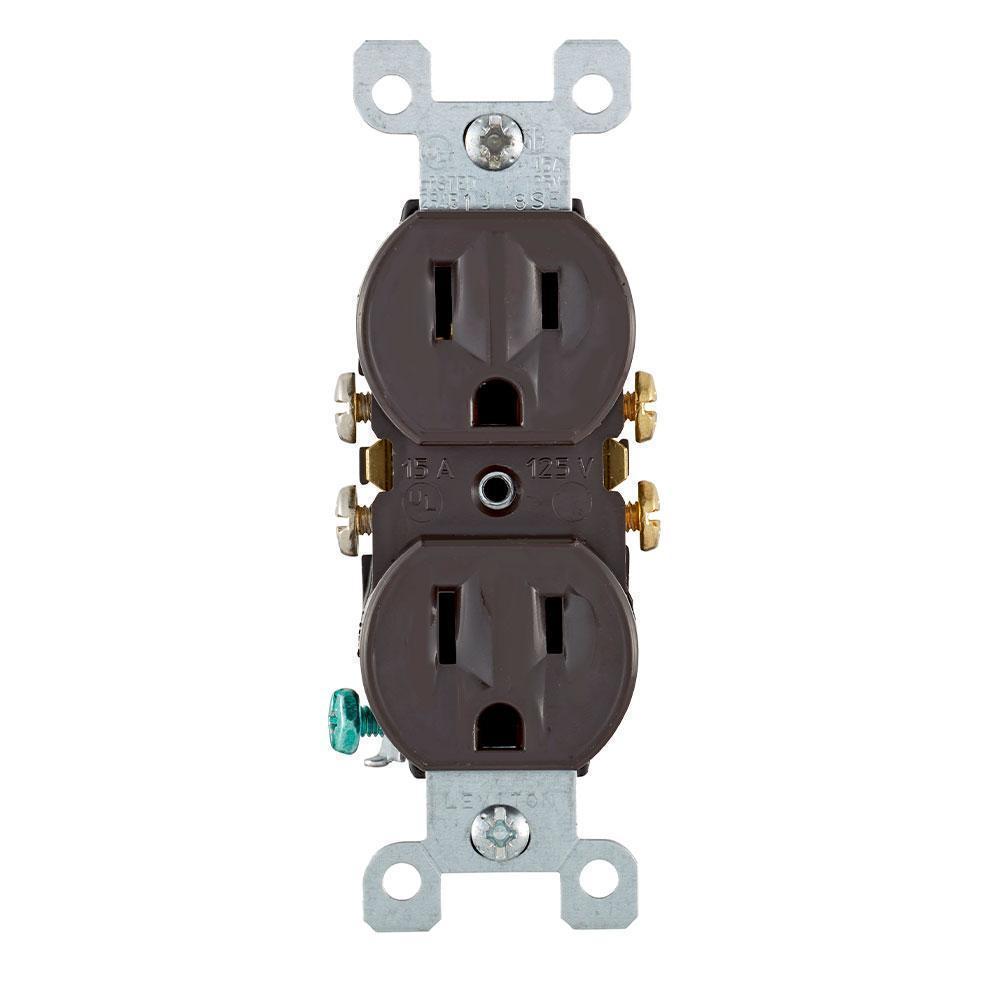

Leviton® 5320-CP
Leviton® 5320-CP Duplex Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Brand: Leviton®
Item ID: 17561
MPN: 5320-CP
Login for Price
Description
Leviton® comprehensive residential grade receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora® and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two circuit conversion.
Leviton®, 5320-CP, Straight Blade Receptacle, Duplex Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Quick-Wire® Push-In/Side Wire Terminal, Thermoplastic, Brown, 4.2 in H x 1.33 in W x 19 in D Dimensions
Specifications
Amperage Rating |
15 A |
Color |
Brown |
Dimensions |
4.2 in H x 1.33 in W x 19 in D |
Grade |
Commercial |
Material |
Thermoplastic |
NEMA Rating |
NEMA 5-15R |
Number of Poles |
2 |
Number of Wires |
3 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Quick-Wire® Push-In/Side Wire |
Type |
Duplex Grounding |
Voltage Rating |
125 VAC |
Standard Approval |
NOM 057|CSA File No. LR406|UL 498/1561|UL94 V-2 Flammability Rating |
Application |
Commercial Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_20d6897ae27f30bbc45d1e376fbf1ba33fada80183c69291f3951a80fed19eb1.pdf
