Leviton® 5638-2W

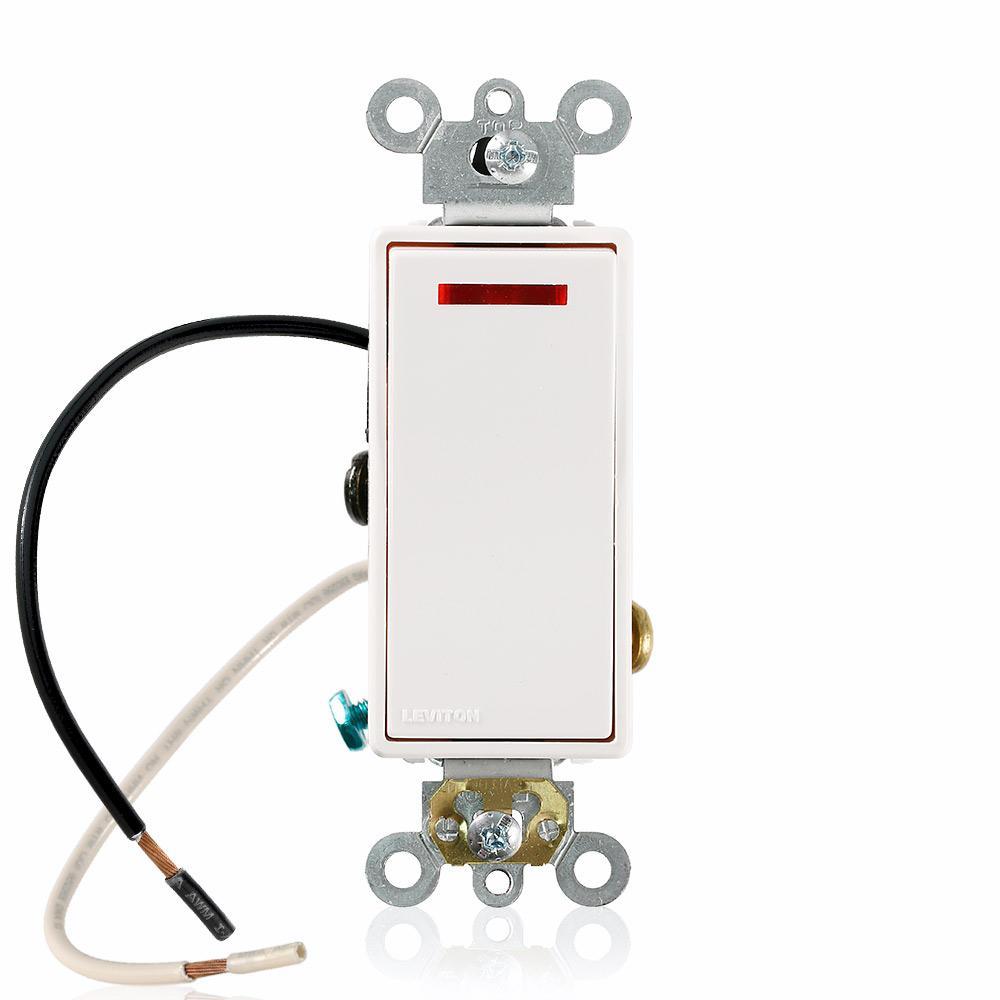

Leviton® 5638-2W Self-Grounding Pilot Light Illuminated On Neutral AC Quiet Switch, 120 VAC, 20 A, 1 hp Power Rating
Brand: Leviton®
Item ID: 17694
MPN: 5638-2W
Login for Price
Features
- Pilot light rocker visible when ON even in bright light
- Back and side wiring terminals accept both solid and stranded wire for easy installation
- Two ground connection options a green grounding screw and a self-grounding clip
Description
Decora® Plus devices combine designer styling with all the benefits of rugged commercial grade construction. The robust product offering includes 1 , 2-pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Leviton®, 5638-2W, Self-Grounding Pilot Light Illuminated On Neutral AC Quiet Switch, 120 VAC, 20 A, 1 hp Power, 20 A at 120 VAC Contact, Maintained/Momentary Action, Rocker Actuator, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.76 in W x 1.6 in D Dimensions
Specifications
Action |
Maintained/Momentary |
Actuator |
Rocker |
Amperage Rating |
20 A |
Color |
White |
Contact Rating |
20 A at 120 VAC |
Dimensions |
46 in H x 1.76 in W x 1.6 in D |
Environmental Conditions |
-40 to 120 deg C Operating Temperature |
Material |
Thermoplastic |
Mounting |
Surface |
Operating Cycles |
50000 Cycles |
Power Rating |
1 hp |
Terminal Type |
Back/Side Wire |
Type |
3-Way Self-Grounding Pilot Light Illuminated ON Neutral |
Voltage Rating |
120 VAC |
Standard Approval |
UL File No. E7458|CSA File No. LR3413|Federal Specification WS896|NOM 057|UL94 V-2 Flammability Rating |
Application |
Commercial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_5601_2_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1502741334619.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1f173c7c4f3400920bbf0f20693c9d546d355858cfd3d6143ecd0d5974747275.pdf
