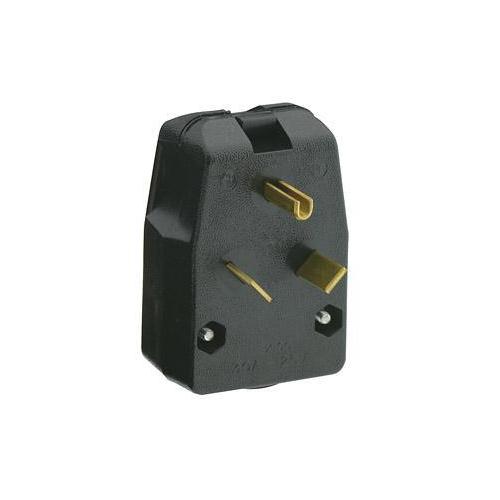

Leviton® 830-E
Leviton® 830-E Angle Grounding Straight Blade Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Brand: Leviton®
Item ID: 72475
MPN: 830-E
Login for Price
Description
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial-grade Straight Blade Plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant and they're ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Leviton® Straight Blade Plug, Angle Grounding, Series: 830, 125 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA TT-30P NEMA Rating, Industrial Grade, 0.687 to 0.875 in Diameter Cord, -40 to 60 deg C, Backed-Out Screw Terminal, Thermoplastic, Black, 2.56 in W x 3.49 in H Dimensions
Specifications
Amperage Rating |
30 A |
Color |
Black |
Cord Diameter |
0.687 to 0.875 in |
Dimensions |
2.56 in W x 3.49 in H |
Grade |
Industrial |
Horsepower |
2 hp |
Material |
Thermoplastic |
NEMA Rating |
NEMA TT-30P |
Number of Poles |
2 |
Number of Wires |
3 |
Series |
830 |
Temperature Rating |
-40 to 60 deg C |
Terminal Type |
Backed-Out Screw |
Type |
Angle Grounding |
Voltage Rating |
125 VAC |
Standard Approval |
ANSI C-73|CSA C22.2 File No. 42/152105|NEMA WD-6|NOM 057|UL 498|UL File No. E13393 |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_830_E_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_830_E_Specification_Sheet.pdf
