Leviton® 9866-B0W

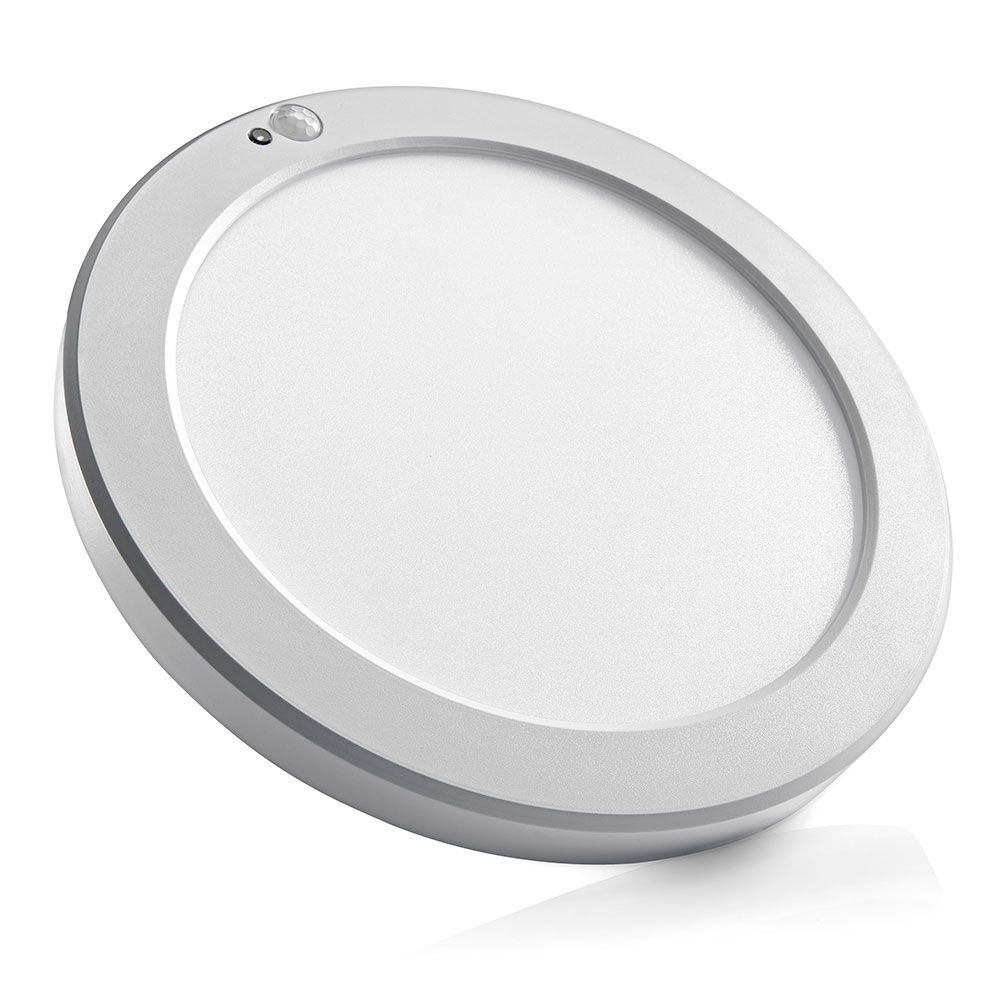

Leviton® 9866-B0W Residential Downlight with Motion Sensor, LED Lamp, 18 W Fixture, 120 VAC, White Housing
Brand: Leviton®
Item ID: 523647
MPN: 9866-B0W
Login for Price
Features
- Automatic ON/OFF Occupancy sensor – no wall switch required
- Switch free convenience

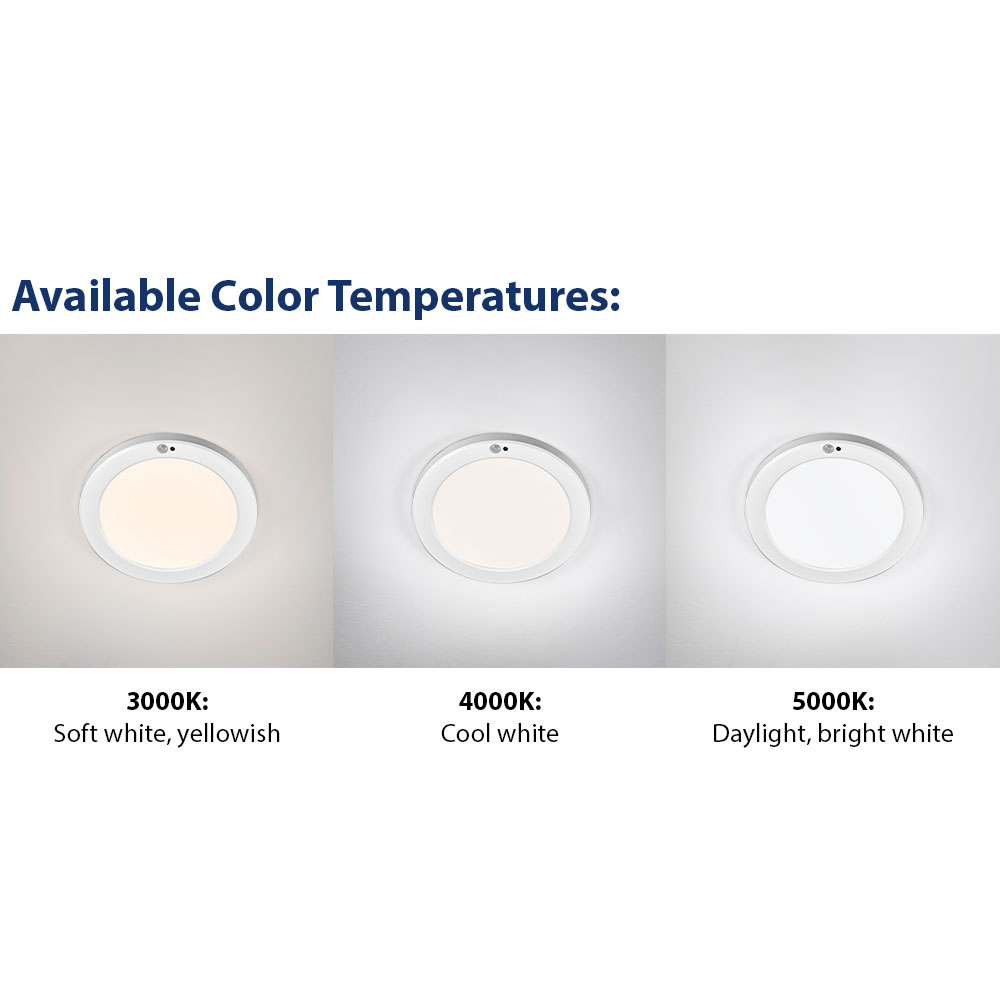

- Offers multiple sensor setting options and 3 adjustable color temperature options for easy customization to suit the needs of the user
- Activates when motion is sensed within 5-6 feet and automatically turns off 30/180 seconds after no motion detected
- Ambient light override in nighttime mode prevents sensor from switching lights ON when there is ample natural sunlight
- 360° Field of View
- Resistant to nuisance triggering
- No recessed ceiling box or J-box required
- Can be used with 3 ½ or 4 ½ standard round ceiling box
Description
Leviton®, 9866-B0W, Downlight with Motion Sensor, Residential, 120 VAC, 18 W Fixture, LED Lamp, 30000 hr Average Life, 3000, 4000, 5000 K Color Temperature, Polycarbonate Lens, 1440 Lumens, IP65 Enclosure, Ceiling/Wall Mounting, Aluminum Housing Material, White Housing Finish, 0.7 in H x 8.7 in Dia Dimensions
Specifications
Average Life |
30000 hr |
Color Temperature |
3000, 4000, 5000 K |
Dimensions |
0.7 in H x 8.7 in Dia |
Enclosure Type |
IP65 |
Fixture Wattage |
18 W |
Housing Finish |
White |
Housing Material |
Aluminum |
Lamp Type |
LED |
Lens Type |
Polycarbonate |
Lumens |
1440 Lumens |
Mounting Type |
Ceiling/Wall |
Type |
Residential |
Voltage Rating |
120 VAC |
Standard Approval |
cETLus Listed|Energy Star Certified|NOM Certified|FCC CFR 47 Part 15|ICES-005|NFPA 70|NEC Section 410.16C(1) |
Application |
Suitable for damp locations, Can be used in both indoor and covered outdoor locations with no direct exposure to moisture |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_9866_BOW_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_9866_BOW_Specification_Sheet.pdf
