Leviton® CS6369

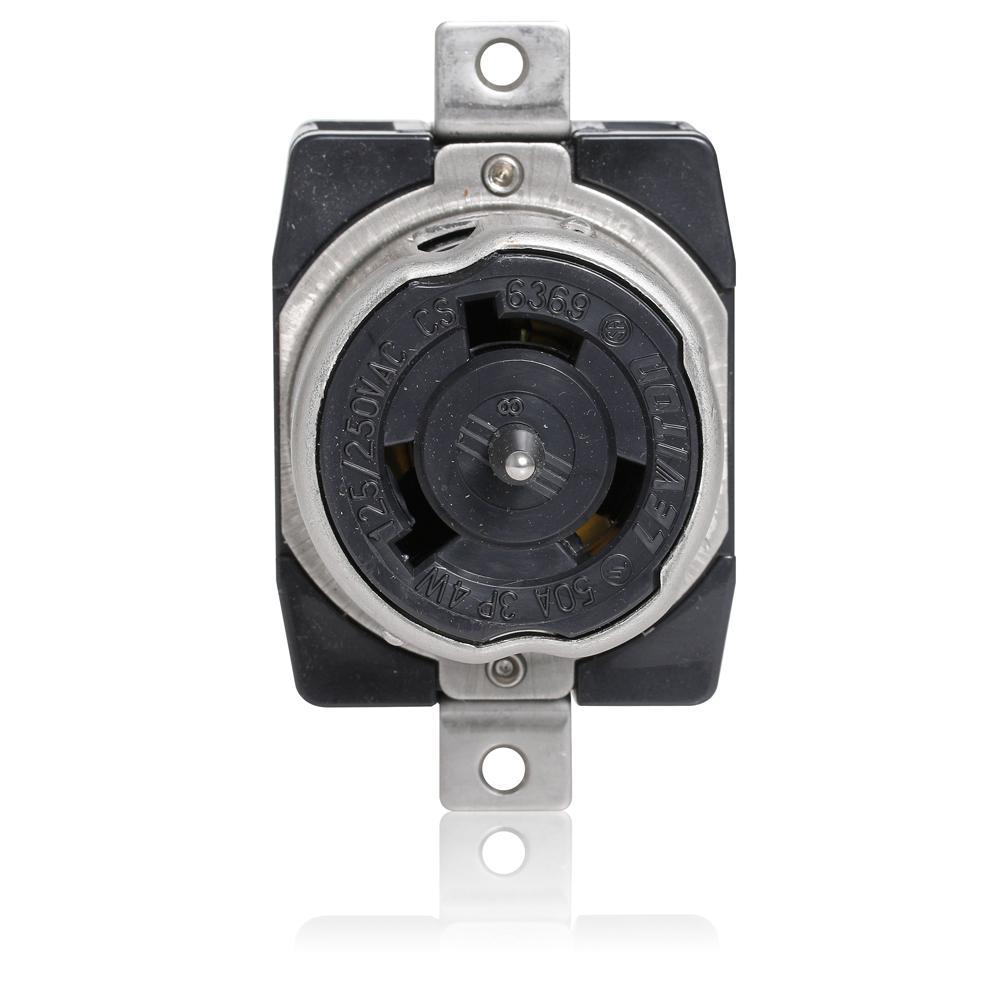

Leviton® Black & White® CS6369 California Style Grounding Locking Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
Brand: Leviton®
Item ID: 172209
MPN: CS6369
Login for Price
Features
- Box mounting
- Non-NEMA rated
- 10 to 6 AWG wire size
- Flush mount
Description
Leviton® Black & White® 50 A non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid 1-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
Leviton® Black & White® Locking Receptacle, California Style Grounding, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, -40 to 75 deg C, Nylon, Black, 3.69 in H x 2.13 in W x 1.14 in D
Specifications
Amperage Rating |
50 A |
Color |
Black |
Dimensions |
3.69 in H x 2.13 in W x 1.14 in D |
Grade |
Industrial |
Material |
Nylon |
Number of Poles |
3 |
Number of Wires |
4 |
Temperature Rating |
-40 to 75 deg C |
Type |
California Style Grounding |
Voltage Rating |
125/250 VAC |
Standard Approval |
RoHS Compliant|NOM 057|CSA C22.2 No. 42/152105|UL 498 File No. E13399|UL94 V-0 Flammability Rating |
Application |
Commercial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8f166ac3611a9611301f925f052d5331328dc730270cb387f76fe4131d61caa6.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_CS6370_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2100ff70a316862b60049843ea249134a9a5fcef54f36e23f95a69f39a5d29d6.pdf
