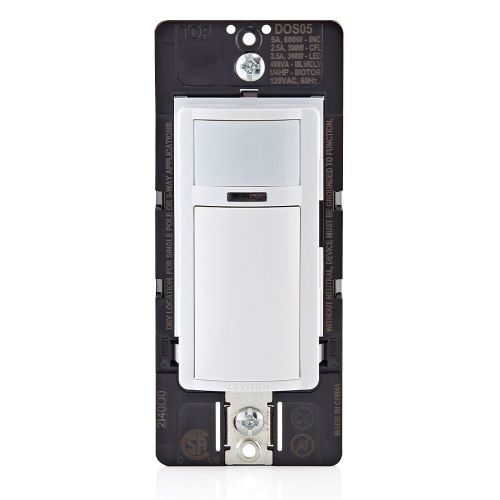

Leviton® DOS05-1LZ

• Controls LED, CFL, incandescent, halogen, magnetic low voltage, electronic low voltage or motor loads
• Shallow design easily fits in the wallbox and can replace a single pole switch

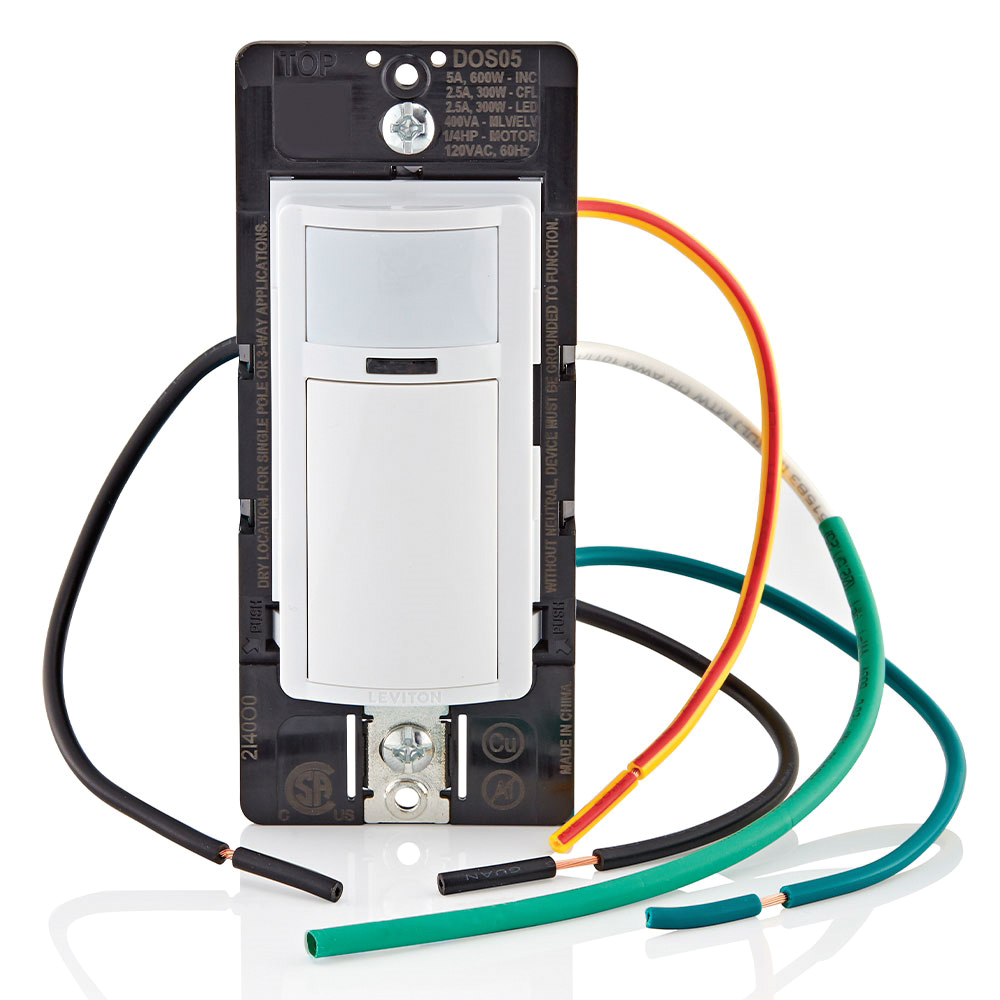

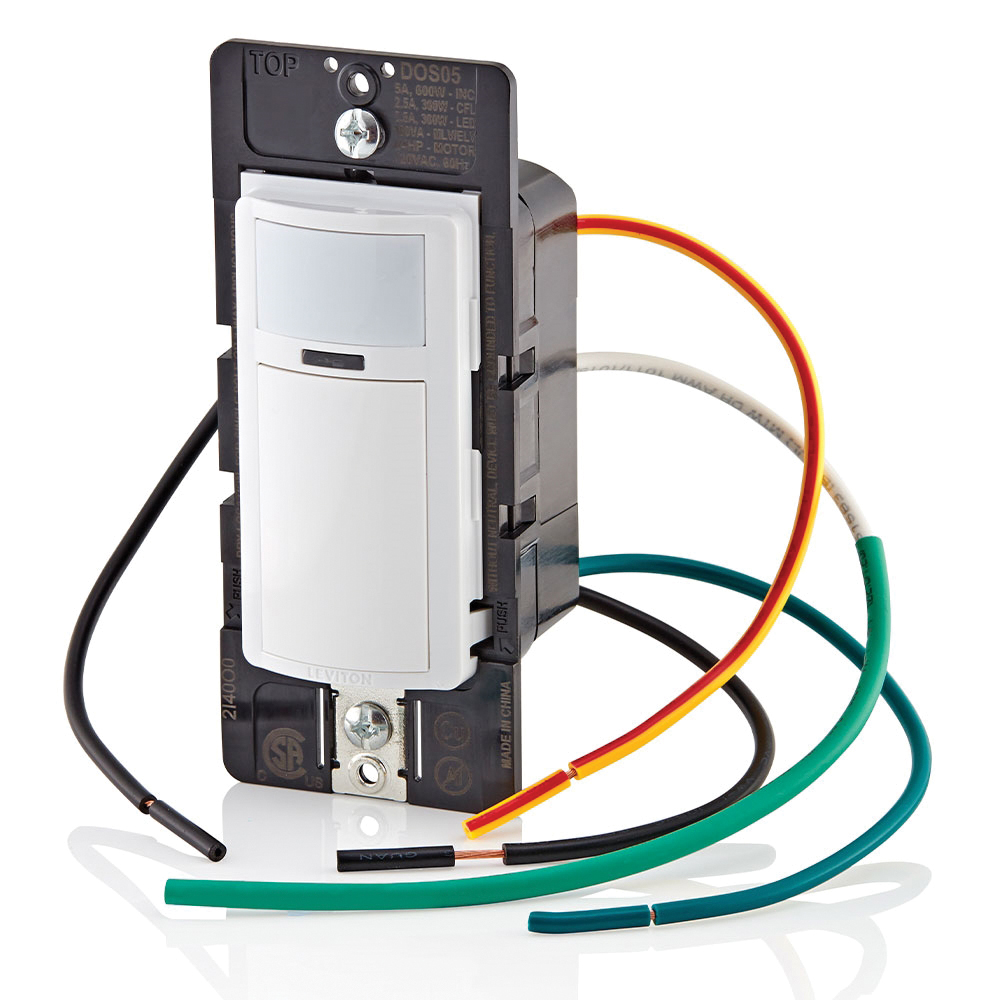

• Leaded terminals for easier installation
• Can be connected to a neutral wire if present in the wallbox or connected to ground wire if no neutral wire is present in the wallbox
• Interchangeable line and load wires
• Program settings without removing the wallplate or faceplate
• Low profile design blends in with walls for a discreet appearance
• Ambient light override prevents sensor from switching the lights on when there is ample natural sunlight
• Adjustable delayed-off time which can be set for 1 min, 5 min, 10 min or 20 min
• Adjustable range (sensitivity) to fit various coverage areas
• Convenient pushbutton provides manual-Off light switching at any time
• Can be used to comply with 2019 California title 24, part 6 vacancy control device requirements
• Without wallplate
• 300 W LED/CFL, 600 W incandescent/halogen, 400 VA magnetic low voltage/electronic low voltage, 1/4 hp motor leads power rating

Leviton® line of Decora® Motion Sensors provide a cost effective solution for all your residential needs. The devices offer flexible single pole or 3-way installation options, including wiring with a neutral or by using an earth ground connection and a slim profile for ease of installation. These features make them ideal for new construction and for retrofit in older wallboxes with limited space. With state-of-the-art technology and modern aesthetics, users will enjoy optimal management of lighting and motor loads. The sensors use passive infrared (PIR) detection technology to monitor a room for occupancy through a segmented lens. Choose from Automatic-On (Occupancy Sensor) or Manual-On (Vacancy Sensor) switching options. They comply with the National Electrical Code® (NEC®) and can also be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements.

Leviton® Decora® Relay Occupancy Motion Sensor, 1-Pole 3-Way, 120 VAC, 5 A, 300 W, 600 W, 400 VA, 1/4 hp Power, Passive Infrared Sensor, 900 sq-ft Coverage, 180 deg Viewing, 1/5/10/20 min Time Delay, CFL/Halogen/Incandescent/LED Lamp, 60 Hz Response, Neutral/Earth Ground Wire Connection, Auto On/Off Control Output, NEMA WD7 Enclosure, Wall Mounting, 0 to 40 deg C, Ivory/Light Almond/White, 1.73 in W x 4.13 in H
