Leviton® Decora® DSL06-1LZ 3-Way Universal Dimmer Switch With Locator Light, 120 VAC, 3 Poles, White/Ivory/Light Almond
Brand: Leviton®
Item ID: 428831
MPN: DSL06-1LZ
Login for Price
Features
Description
Leviton® Decora® rocker slide universal dimmers provide smooth, slide action, full range dimming for incandescent, dimmable LEDs and dimmable CFL loads. They combine a Decora® rocker switch with a contemporary full range slender slide bar for precise lighting control. With a new, streamlined style, Decora® dimmers and fan speed control complement any interior design and are compatible with other Decora® devices.
Leviton® Decora® Dimmer Switch, 3-Way Universal, 120 VAC, 300/600 W Power, 60 Hz Frequency, 3 Pole, CFL/Incandescent/LED Lamp, Preset Start, On/Off Rocker Switch Control, Wall Mounting, 0 to 55 deg C, White/Ivory/Light Almond, 4.13 in H x 1.75 in W
Specifications
Color |
White/Ivory/Light Almond |
Control |
On/Off Rocker Switch |
Dimensions |
4.13 in H x 1.75 in W |
Frequency Rating |
60 Hz |
Lamp Type |
CFL/Incandescent/LED |
Mounting Type |
Wall |
Number of Poles |
3 |
Power Rating |
300/600 W |
Start Type |
Preset |
Temperature Rating |
0 to 55 deg C |
Type |
3-Way Universal |
Voltage Rating |
120 VAC |
Standard Approval |
cCSAus 184.1|UL 1472|NOM Certified |
Application |
Commercial and Residential Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_DSL06_1LZ_Instruction_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_00ccf07bab372b79fbf4476632f3ef21e6a3b746c1f3ec39af4360d59362ab70.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_DSL06_1LZ_Technical_Bulletin.pdf

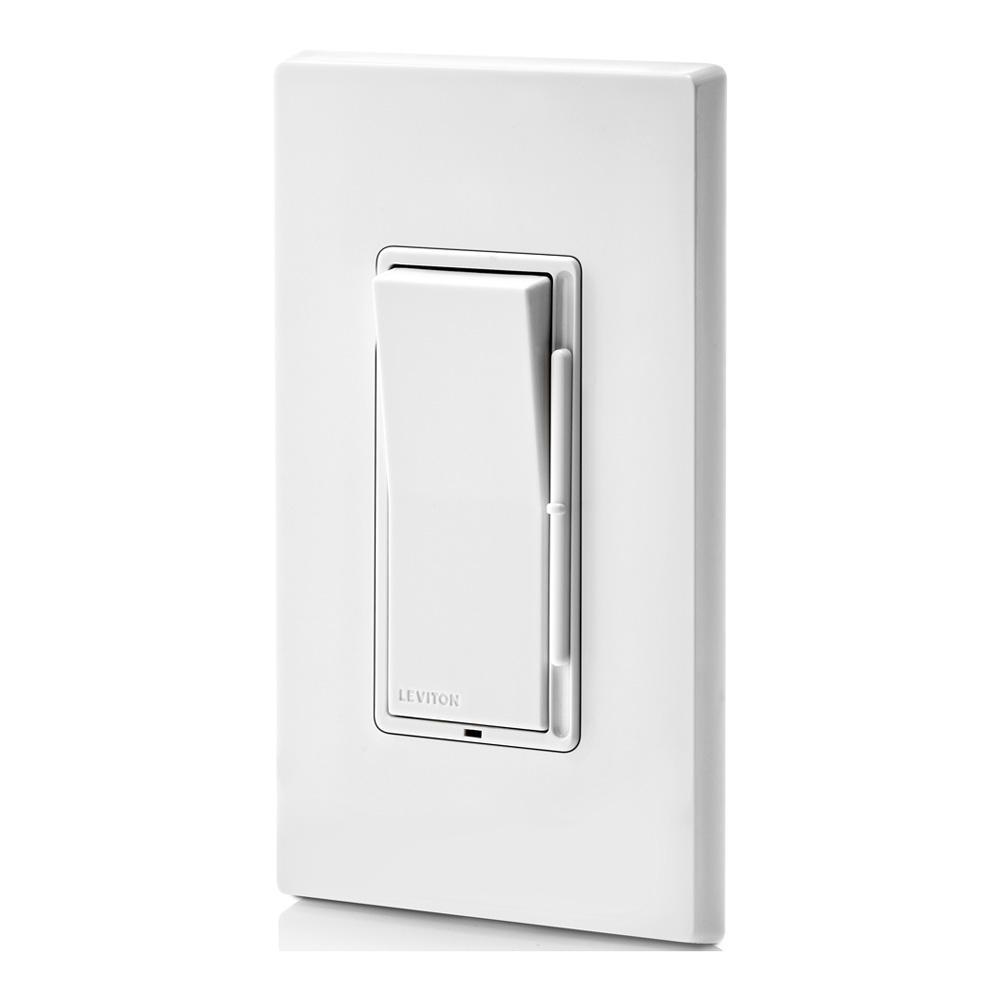

Leviton® DSL06-1LZ
