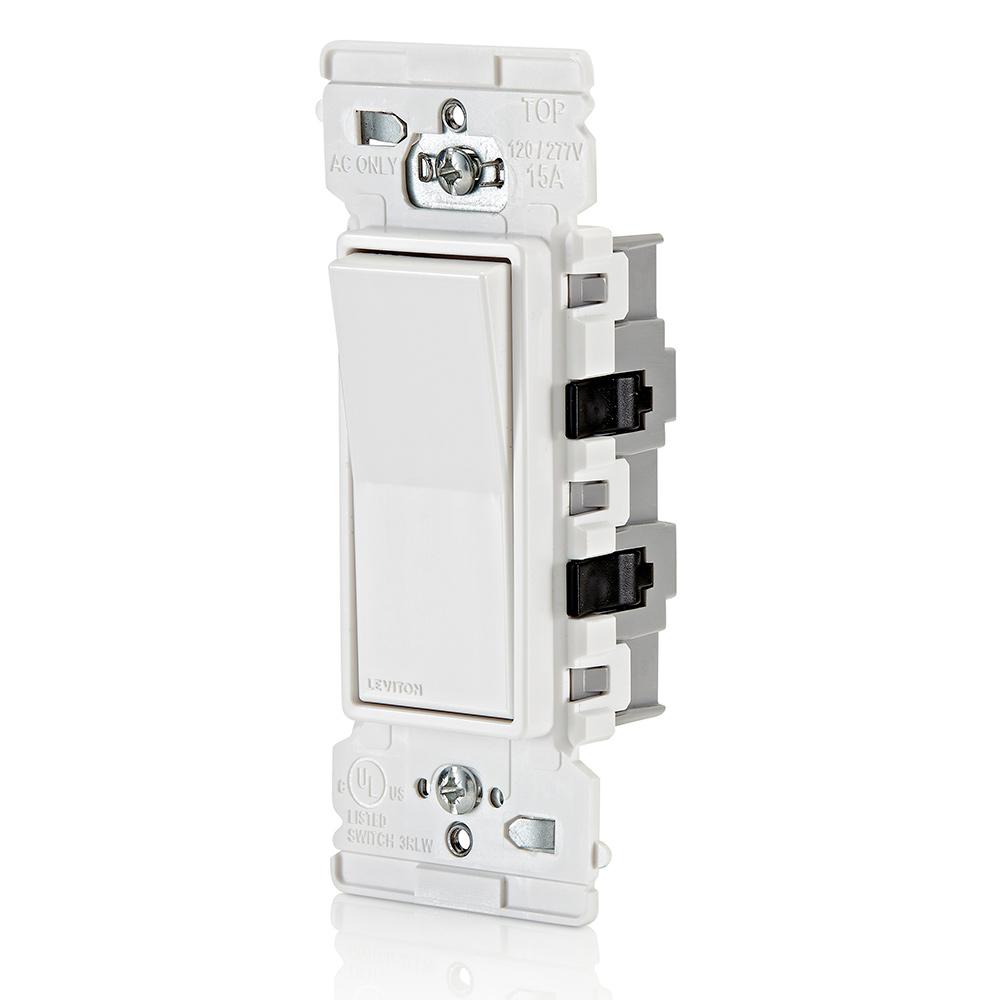

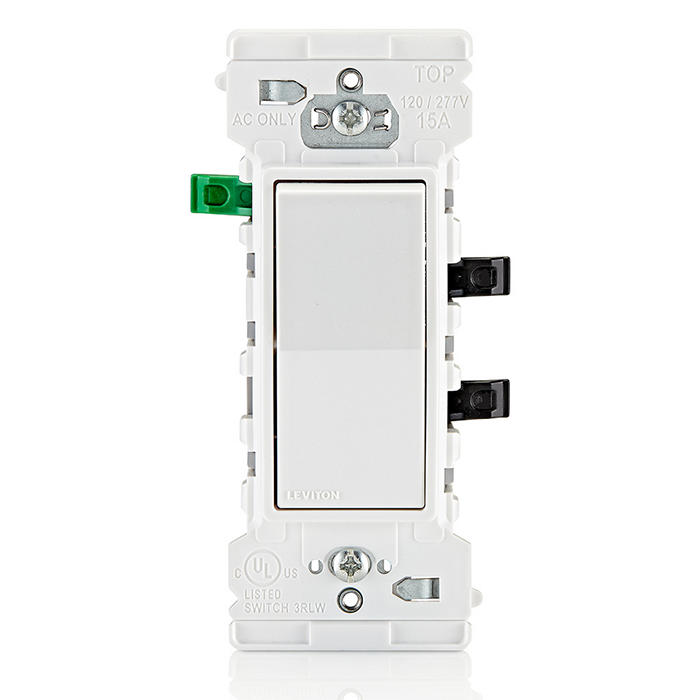

Leviton® E5601-W

• Provides the traditional appearance and superior performance of Decora devices in a new, faster, easier-to-install, and safer design
• Patent pending lever terminals for fast, efficient wiring
• Color-coded lever terminals reduces risk of miswiring
• Lever doors have snap feature to assure connection has been made, audible click confirms lever door is closed
• Only Residential device on the market with a quick termination ground wire
• No exposed metal parts for enhanced safety, eliminates need for electrical tape
• Straps unique tongue and groove alignment offers quicker trim out on multi-gang installations
• Lever connectors work with 14 ga and 12 ga stranded and solid copper wire
• Wire openings prevent wire insulation from being inserted into the terminals
• One standard strip gauge for all devices
• Devices coordinate seamlessly with other Decora devices
• Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
• Can be used with Decora wallplates and Decora Plus screwless wallplates
• Test openings for circuit testers

Leviton®, E5601-W, Switch, Self-Grounded, 120/277 VAC, 15 A, 1/2, 2 hp Power, SP Contact Configuration, 12 A at 120/277 VAC Contact, 1 Pole, Rocker Actuator, Side Wired Connection, Thermoplastic, White
