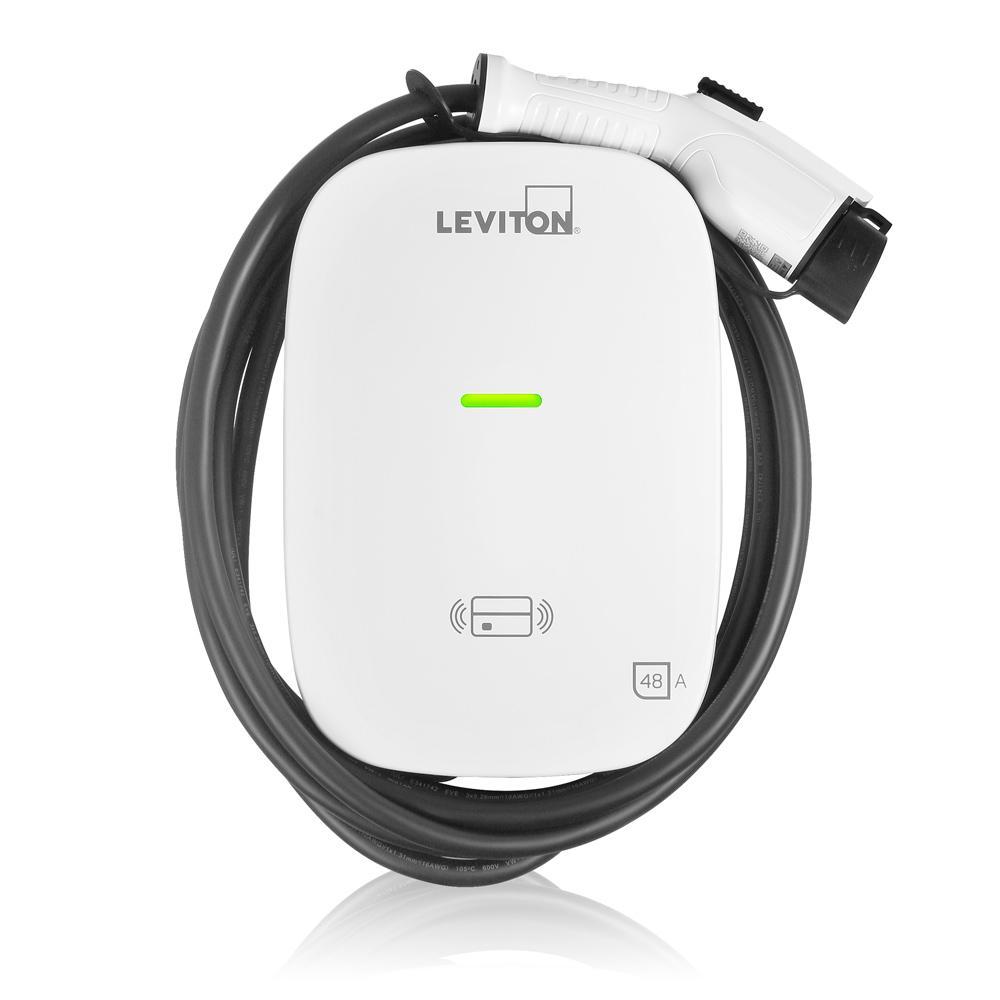

Leviton® EV480
Leviton® EV480 EV Charger Charging Station, 208, 240 |VAC, 48 A, 18 ft Wire, NEMA 3R Enclosure
Brand: Leviton®
Item ID: 524420
MPN: EV480
Login for Price
Features
- Fast and secure charging of any SAE J1772™ compatible electric vehicle
- Optional access control; station comes with RFID disabled - simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather
- Water-resistant enclosure rated NEMA Type 3R
- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified
Description
Leviton®, EV480, Charging Station, Charger, Series: EV, 208, 240 |VAC, 48 A, 18 ft Wire, Bottom Feed, 20 mA Short Circuit, SAE J1772 Connection, NEMA 3R Enclosure, Plastic, Wall/Pedestal Mounting, -30 to 50 deg C Operating
Specifications
Amperage Rating |
48 A |
Connection Type |
SAE J1772 |
Enclosure Type |
NEMA 3R |
Feed Type |
Bottom |
Material |
Plastic |
Mounting Type |
Wall/Pedestal |
Operating Temperature |
-30 to 50 deg C |
Series |
EV |
Short Circuit Current Rating |
20 mA |
Type |
Charger |
Voltage Rating |
208, 240 VAC |
Wire Size |
18 ft |
Standard Approval |
UL2594|UL 2231-1|UL 2231-2|UL 2251|UL 62|UL 991|UL 1998|NFPA 70 Article 625|UL840|RoHS Compliant |
Application |
For home and commercial |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_EV480_Installation_Manual.pdf
