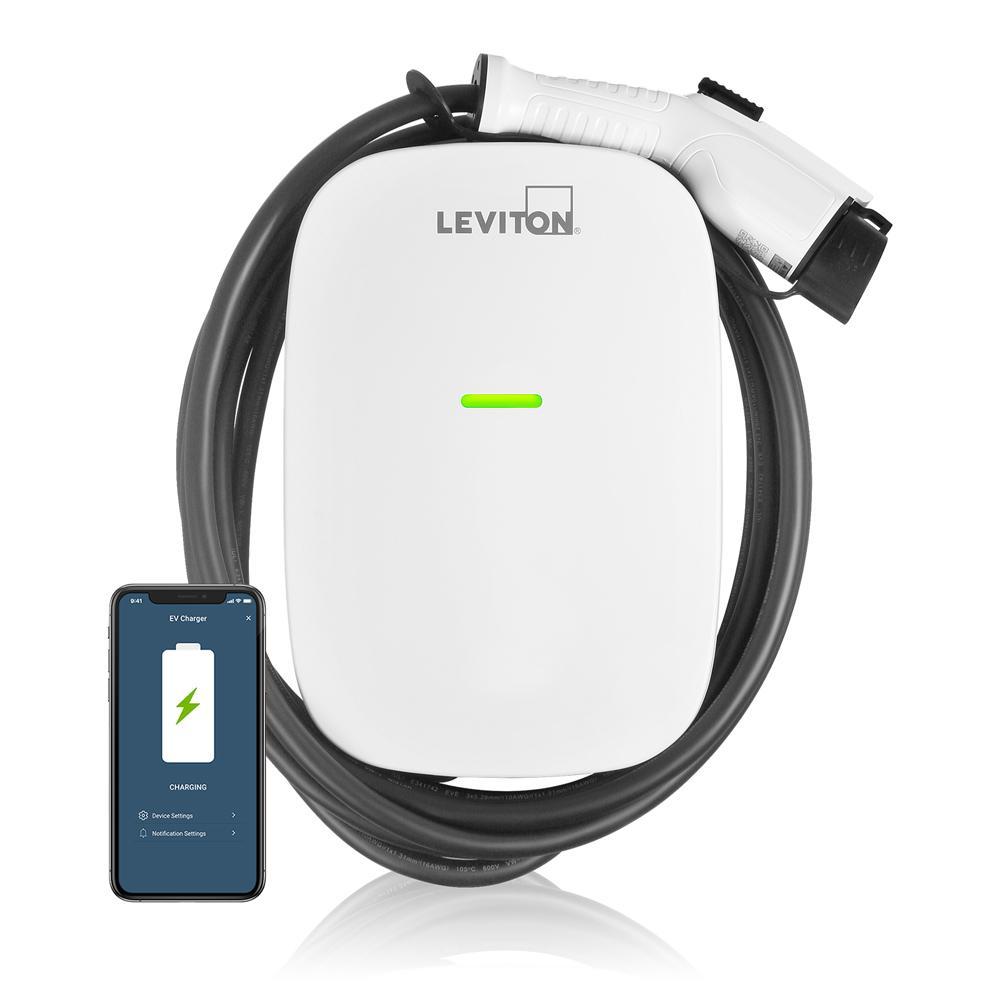

Leviton® EV48W
Leviton® EV48W EV Charger Charging Station, 208, 240 |VAC, 48 A, 18 ft Wire, NEMA 3R Enclosure
Brand: Leviton®
Item ID: 528694
MPN: EV48W
Login for Price
Features
- Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger
- Benefit from major times savings with a pre-attached input cable
Description
Leviton®, EV48W, Charging Station, Charger, Series: EV, 208, 240 |VAC, 48 A, 18 ft Wire, Bottom Feed, 20 mA Short Circuit, SAE J1772 Connection, NEMA 3R Enclosure, Plastic, Wall/Pedestal Mounting, -30 to 50 deg C Operating
Specifications
Amperage Rating |
48 A |
Connection Type |
SAE J1772 |
Enclosure Type |
NEMA 3R |
Feed Type |
Bottom |
Material |
Plastic |
Mounting Type |
Wall/Pedestal |
Operating Temperature |
-30 to 50 deg C |
Series |
EV |
Short Circuit Current Rating |
20 mA |
Type |
Charger |
Voltage Rating |
208, 240 VAC |
Wire Size |
18 ft |
Standard Approval |
UL2594|UL 2231-1|UL 2231-2|UL 2251|UL 62|UL 991|UL 1998|NFPA 70 Article 625|UL840|RoHS Compliant |
Application |
For home and commercial |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_EV32W_Installation_Manual.pdf
