Leviton® L5611-2W

Leviton® Decora Plus™ L5611-2W LED Illuminated AC Quiet Switch, 120/277 VAC, 15 A, 1/2 hp at 120 V, 2 hp at 240 to 277 V Power Rating

Brand: Leviton®

Item ID: 505882

MPN: L5611-2W

Login for Price

Features

  • Designed to work with LED, CFL and incandescent bulbs, no neutral required

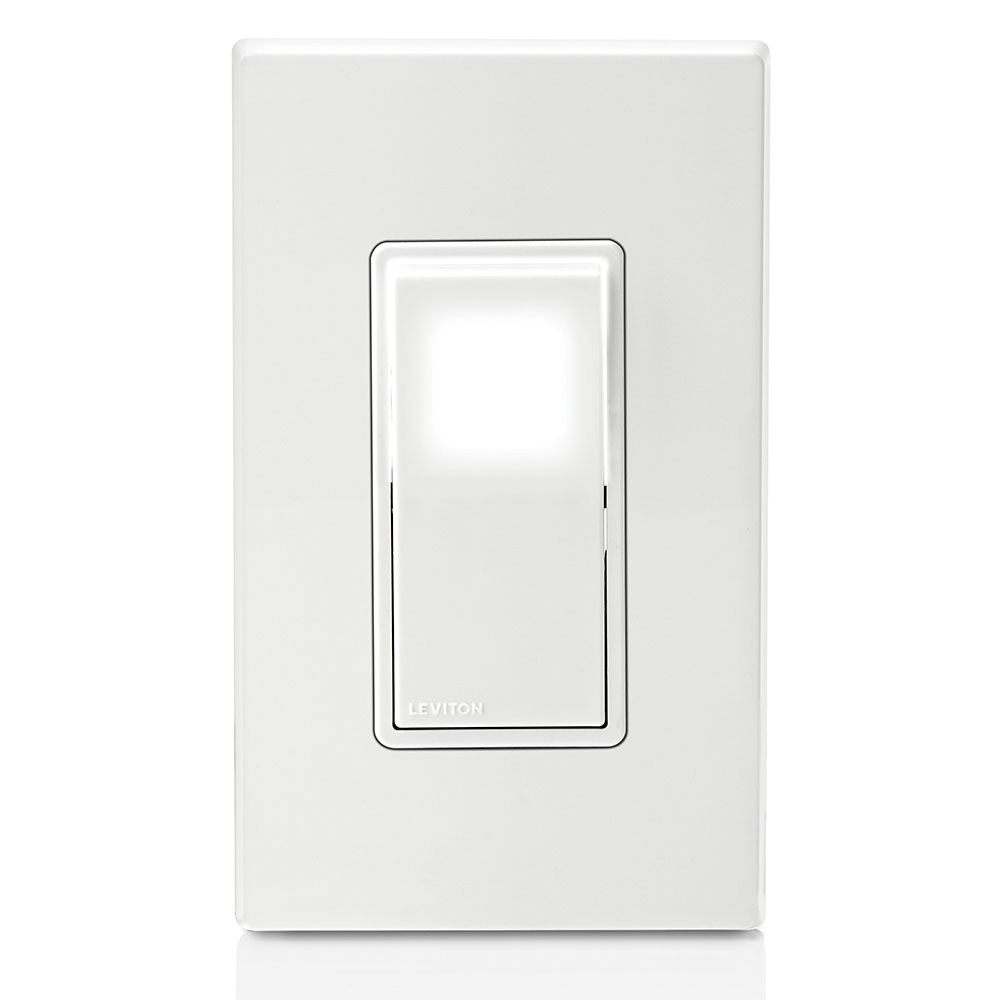

  • Switch remains illuminated in the Off position, so it is easy to locate in a dark room

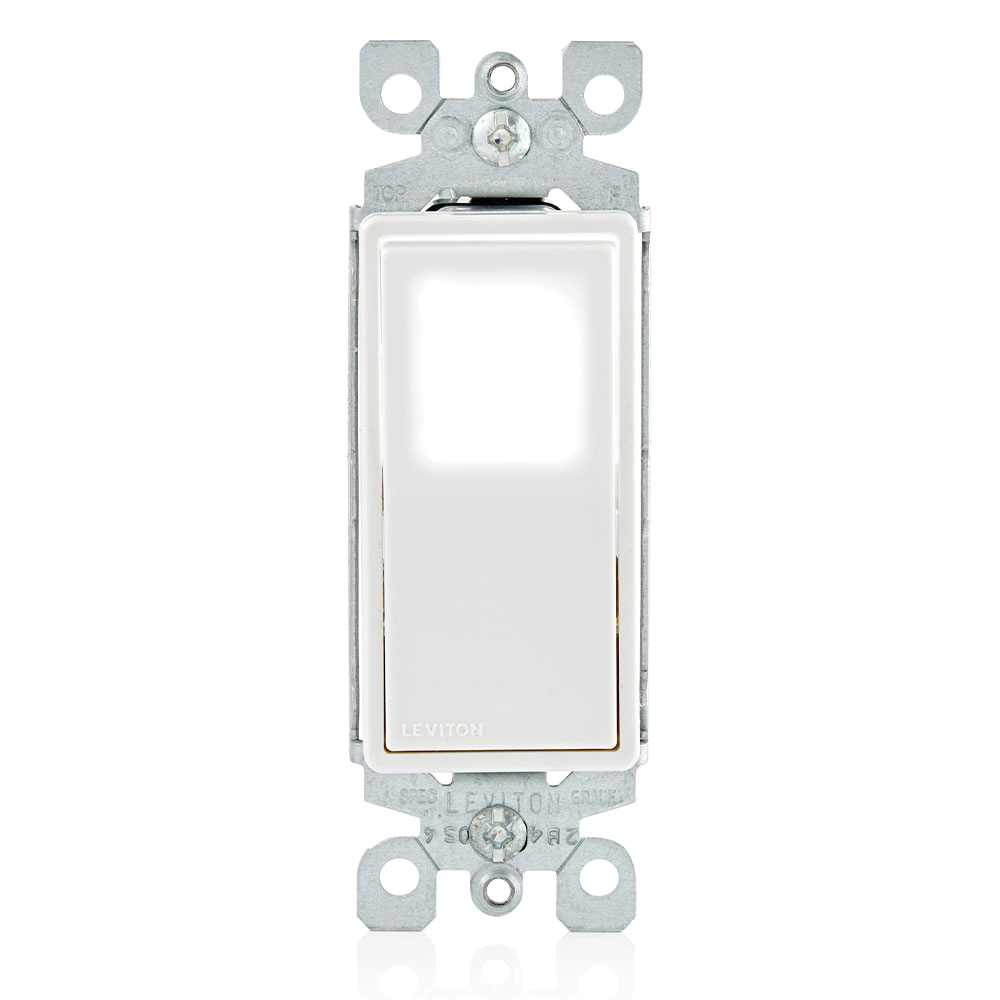

  • White LED light inside the switch provides a refreshed and modern appearance
  • Replaces any standard switch

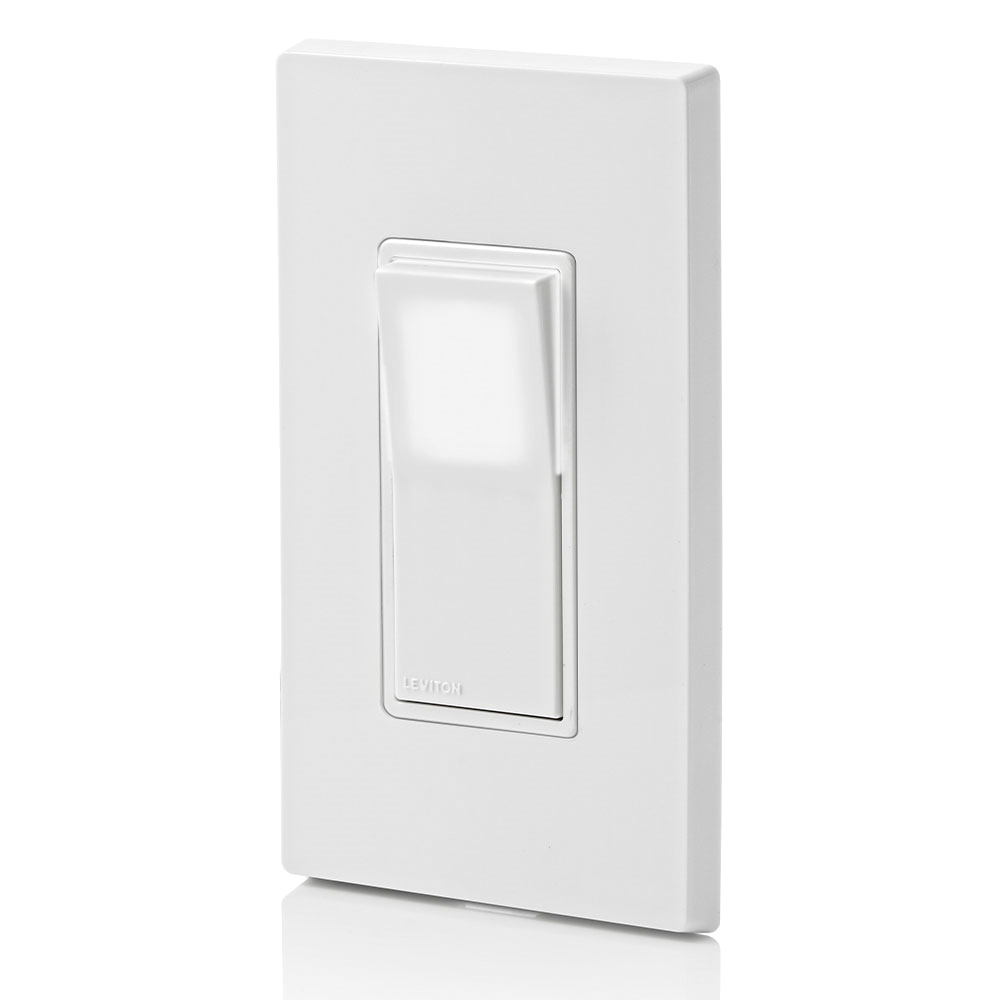

  • Decora® model compatible with Decora® wallplates and Decora Plus™ screwless wallplates, wallplates sold separately

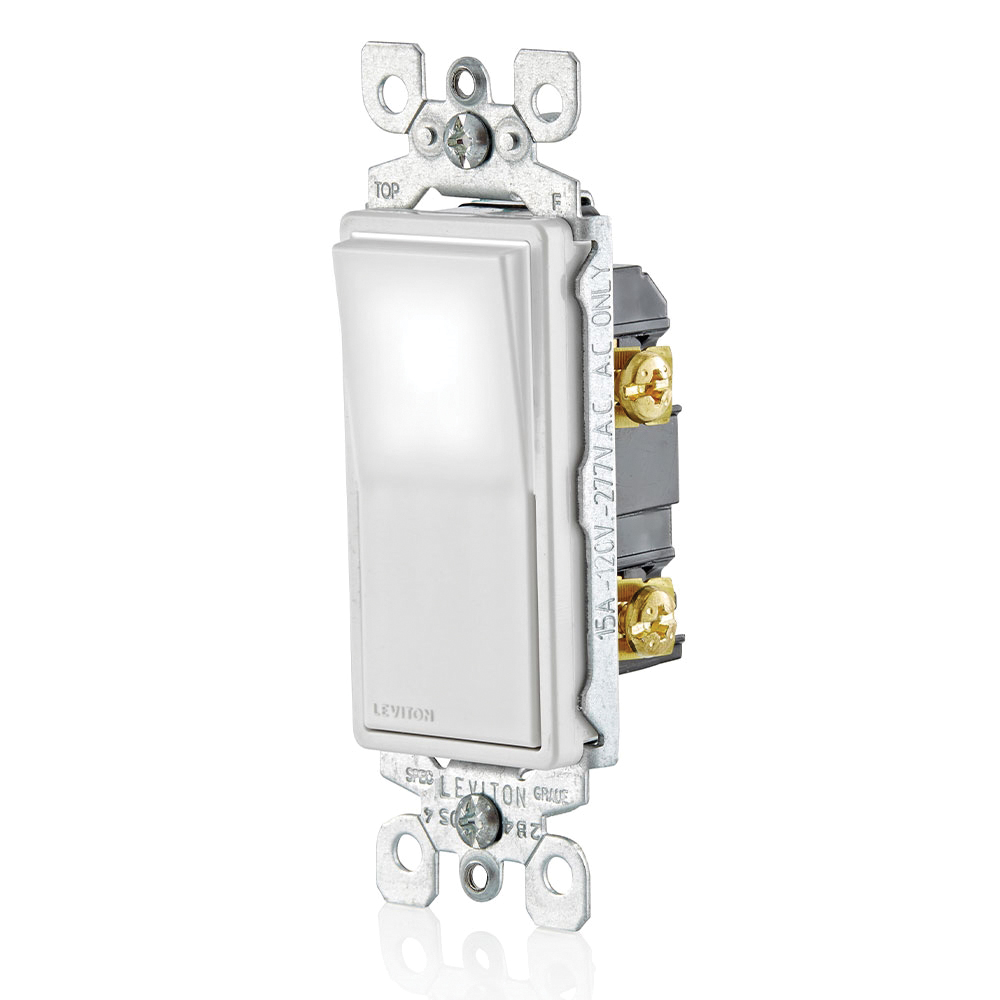

  • Features QuickWire® push-in, back and side wiring for easy installation
  • QuickWire® push-in terminals accept #14 AWG solid copper wire only
  • Back and side wire terminal screws accept up to #12 AWG copper or copper clad wire
  • Complements every decor

Description

Leviton® Decora Plus™ AC Quiet Switch, LED Illuminated, 120/277 VAC, 15 A, 1/2 hp at 120 V, 2 hp at 240 to 277 V Power, 1 Pole, Rocker Actuator, Back/Side Wired/QuickWire® Push-In Terminal, Thermoplastic, White, 1.4 in W x 4.2 in H

Specifications

Actuator

Rocker

Amperage Rating

15 A

Color

White

Dimensions

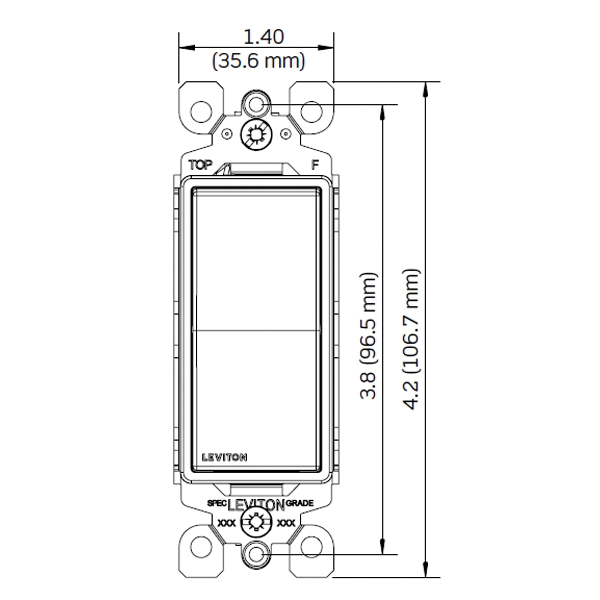

1.4 in W x 4.2 in H

Material

Thermoplastic

Number of Poles

1

Power Rating

1/2 hp at 120 V, 2 hp at 240 to 277 V

Terminal Type

Back/Side Wired/QuickWire® Push-In

Type

LED Illuminated

Voltage Rating

120/277 VAC

Standard Approval

cULus Listed|NOM Compliant|UL Listed

Application

Entryways, Kitchens, Bathrooms, Children's Rooms, Hallways, Basements, Utility/Laundry Rooms, Garages and Residential Applications

Documentation

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_L56112I_Manual.pdf

Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_L56112I_Technical_Bulletin.pdf

VIDEO LINK https://youtu.be/TfKEvPauRkI
