Leviton® LS820-B5D

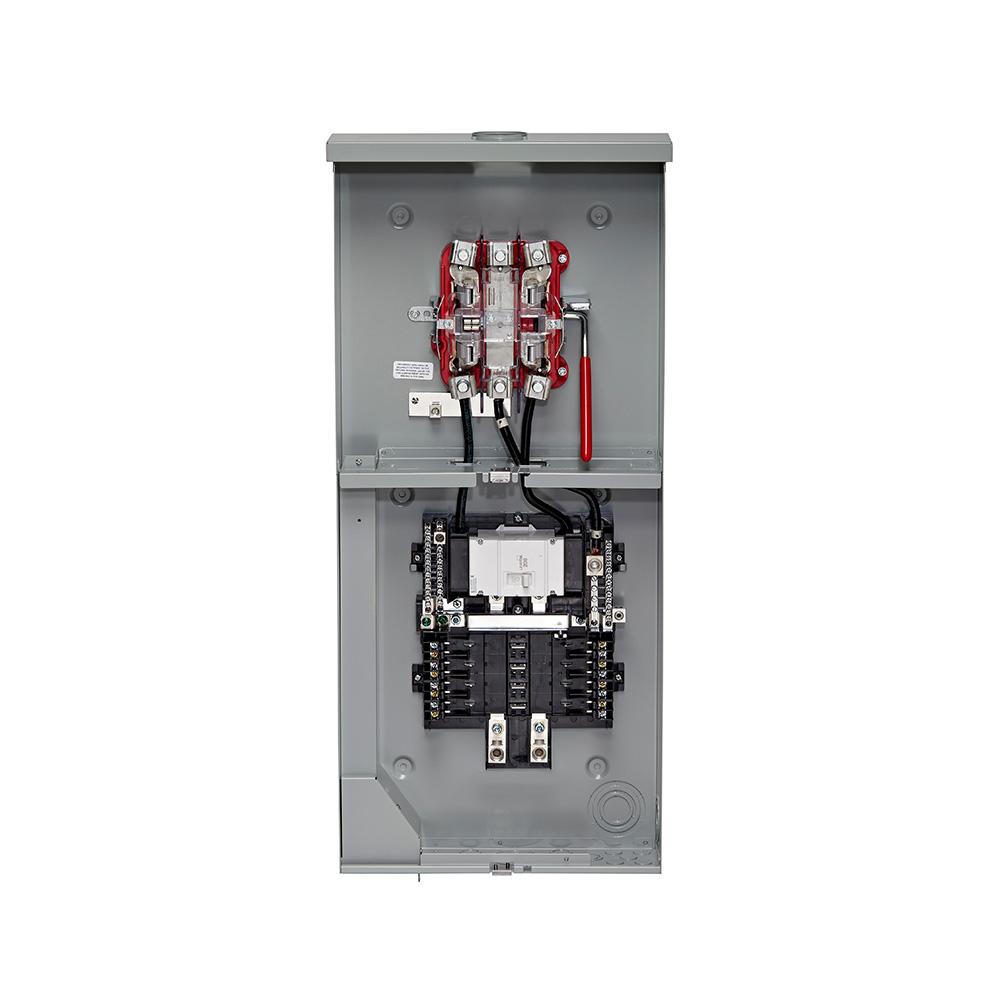

Leviton® LS820-B5D Meter Main Combo Load Center, 120, 240 VAC, 200 A, NEMA 3R Outdoor Enclosure
Brand: Leviton®
Item ID: 535897
MPN: LS820-B5D
Login for Price
Features
- 22kA Interrupt Rating
- Fastest installation - Wire the entire panel without a single circuit breaker in place
- At final installation, simply plug on the breaker
- Intuitive - Circuit Breakers feature color indicators in the handle for operational status at-a-glance
- Spacious - Ample room for hands to move and work freely
Description
Leviton®, LS820-B5D, Load Center, Meter Main Combo, 120, 240 VAC, 200 A, Feed-Through, 6 AWG to 350 MCM Supply/4 to 2/0 AWG Cu/Al Ground Wire, Ringless Cover, Lug Terminal, -40 to 70 deg C Operating, NEMA 3R Outdoor Enclosure, 36 in H x 16.6 in W x 5.2 in D Dimensions
Specifications
Amperage Rating |
200 A |
Cover Type |
Ringless |
Dimensions |
36 in H x 16.6 in W x 5.2 in D |
Enclosure Type |
NEMA 3R Outdoor |
Feed Type |
Feed-Through |
Operating Temperature |
-40 to 70 deg C |
Terminal Type |
Lug |
Type |
Meter Main Combo |
Voltage Rating |
120, 240 VAC |
Wire Size |
6 AWG to 350 MCM Supply/4 to 2/0 AWG Cu/Al Ground |
Standard Approval |
UL 50|UL 50E|UL 67|UL 869A |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_LS820_B5D_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_LP310_BPD_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_LS815_BHD_Specification_Sheet.pdf
