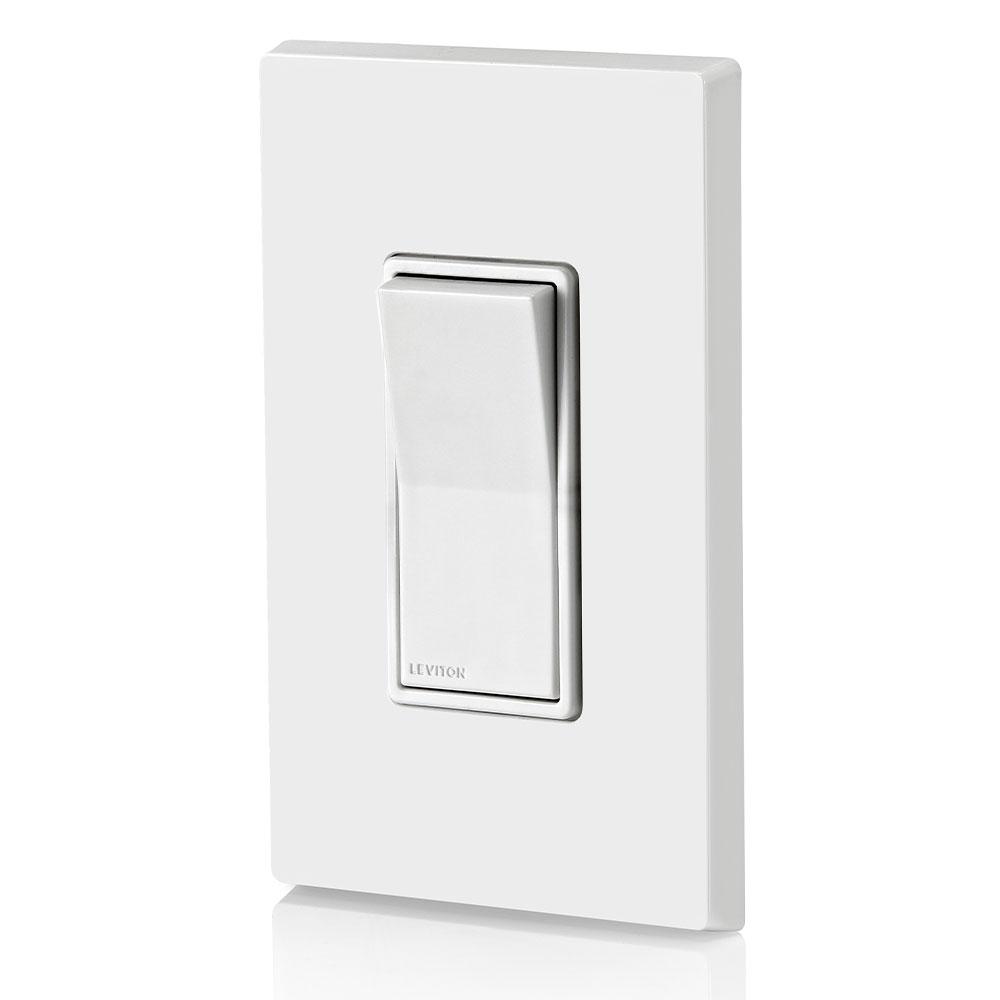

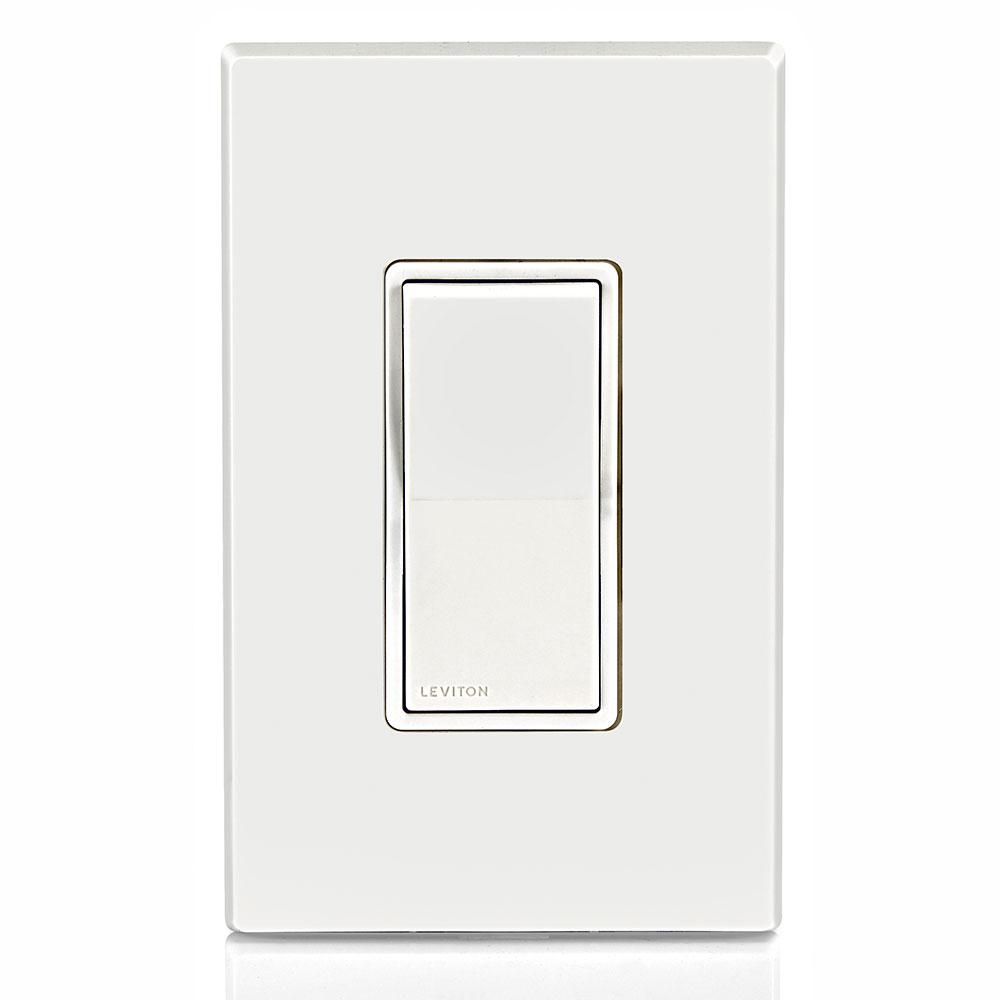

Leviton® W5601-2W
Leviton® W5601-2W Switches, 120, 277 VAC, 15 A, 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC Power Rating
Brand: Leviton®
Item ID: 529484
MPN: W5601-2W
Login for Price
Features
- All-in-one weather-resistant switch solution, no outdoor cover required

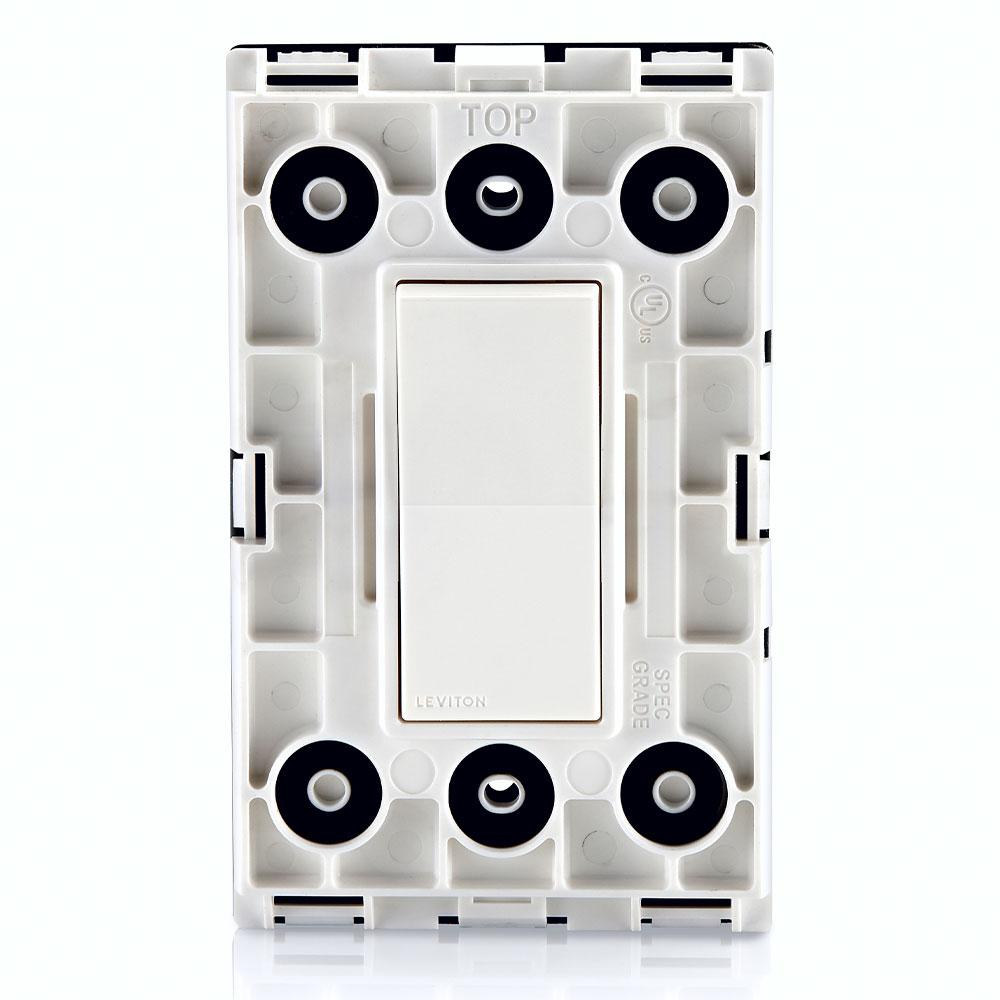

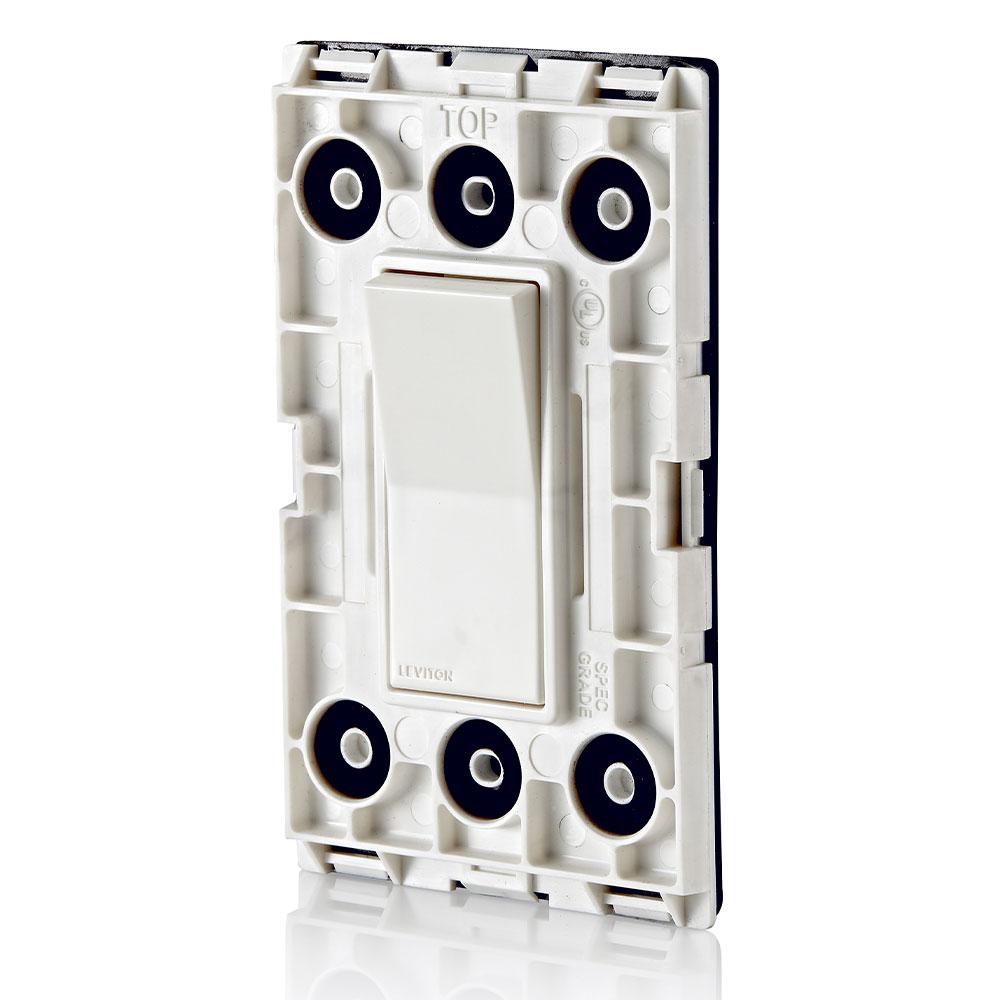

- Patent-pending actuation done with magnets, allowing the subplate/switch to be impervious to water intrusion
- Designed for wet and damp locations
- UV stabilized thermoplastic construction
- Rocker switch for smooth operation

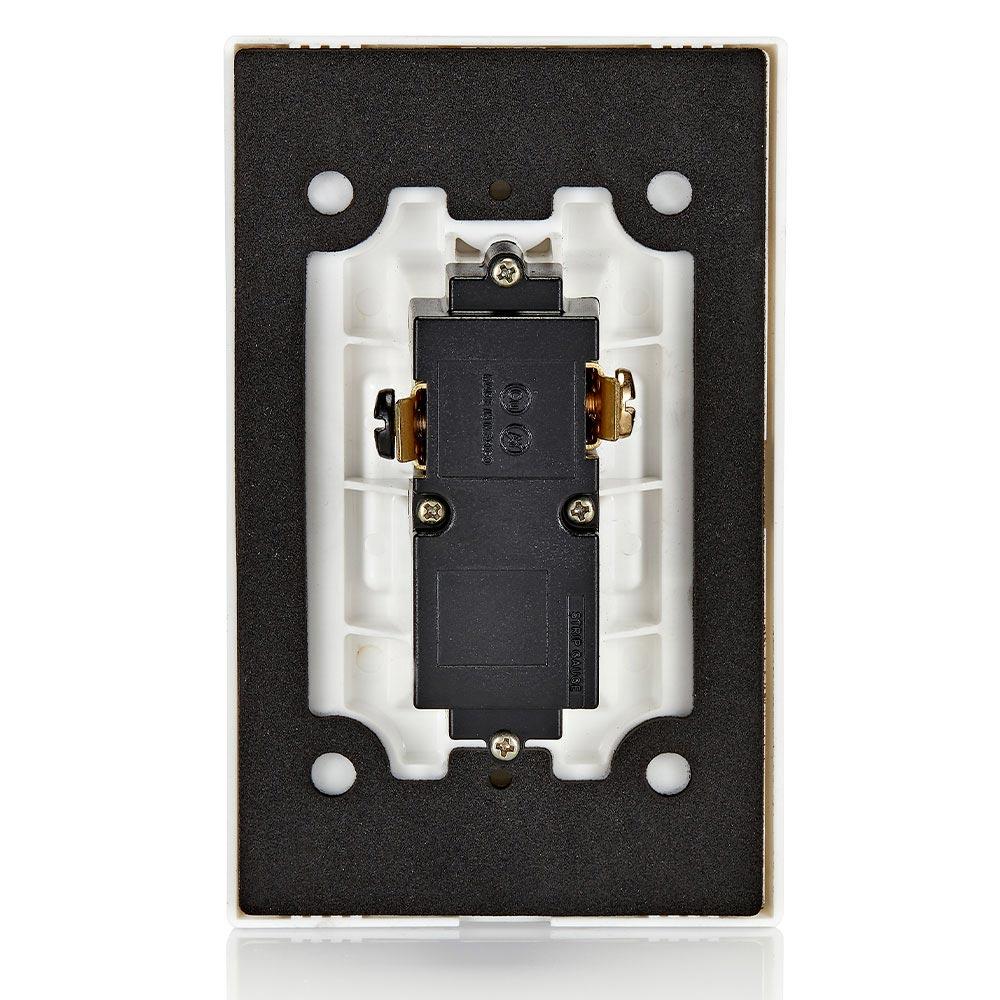

- Side and back wire for easy installation
- Ideal for residential and commercial outdoor kitchens and bars, outdoor lighting, patio, pool and spa areas, sheds, gazebos, cabanas, outdoor ceiling fans and fountains
Description
Leviton®, W5601-2W, Switches, 120, 277 VAC, 15 A, 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC Power, 15 A at 120/277 VAC Contact, 1 Pole, Rocker Actuator, Back/Side Wire Terminal, Thermoplastic, White, 4.85 in H x 2.94 in W x 1.88 in D Dimensions
Specifications
Actuator |
Rocker |
Amperage Rating |
15 A |
Color |
White |
Contact Rating |
15 A at 120/277 VAC |
Dimensions |
4.85 in H x 2.94 in W x 1.88 in D |
Material |
Thermoplastic |
Number of Poles |
1 |
Power Rating |
1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC |
Terminal Type |
Back/Side Wire |
Voltage Rating |
120, 277 VAC |
Standard Approval |
cULus Listed|NOM |
Application |
Ideal for residential and commercial outdoor kitchens and bars, outdoor lighting, patio, pool and spa areas, sheds, gazebos, cabanas, outdoor ceiling fans, and fountains |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEVITON_W5601_2W_Catalog.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEVITON_W5601_2W_Full_Engineering_Drawing.pdf
Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEVITON_W5601_2W_Installation_Manual.pdf
