Lew Electric SWB-4
Lew Electric SWB-4 Recessed Plate Assembly, 36 cu-in Capacity, 4 Outlets, 2 Knockouts
Brand: Lew Electric
Item ID: 356726
MPN: SWB-4
Login for Price
Features
- All receptacles tamper resistant
- Adjustable up to 3/4 in to accommodate any floor
- Water tight assembly
Description

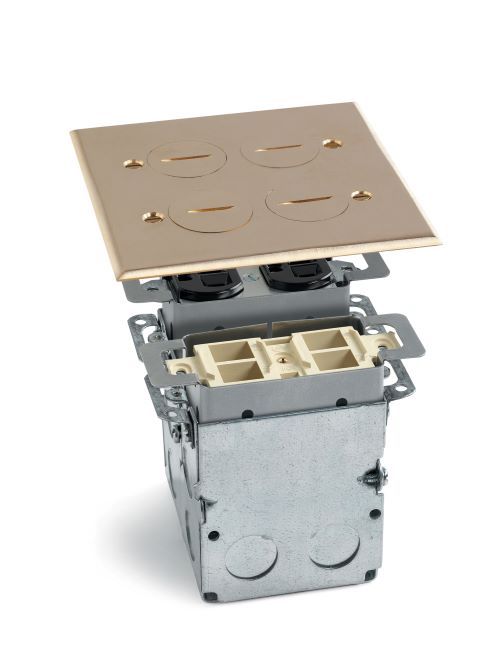

The Lew Electric SWB-4 is a recessed floor plate with brass screw plug cover, two single gang stamped steel boxes and adjusting sleeves. Inside the floor box are two UL listed 15 A TR duplex receptacles. The adjusting sleeves are adjustable up to 3/4 in to accommodate any floor. The box features four water tight close up screw plugs and a durable 1/16 in neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.
Lew Electric Recessed Plate Assembly, 4 Outlets, 2 Knockouts, 3/4 in Knockout, Floor Mount, 36 cu-in, Silver/Gold
Specifications
Capacity |
36 cu-in |
Color |
Silver/Gold |
Knockout Size |
3/4 in |
Mounting Type |
Floor |
Number of Knockouts |
2 |
Number of Outlets |
4 |
Standard Approval |
NEMA WD 1-1983|UL E345966/E333616 |
Application |
Residential and Versatile Power or Communication Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lew_Electric_SWB_4_Specification_Sheet.pdf
