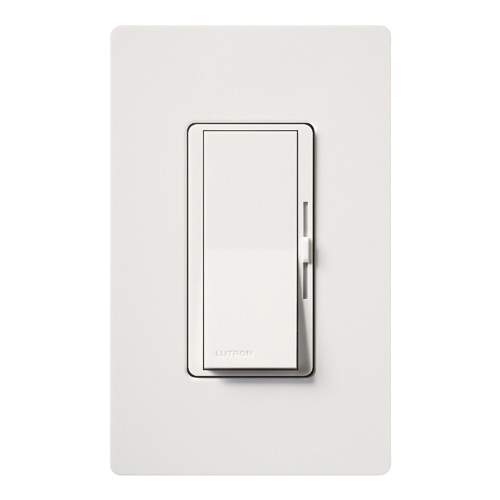

Lutron® DV-103P-WH
Lutron® Diva® DV-103P-WH 3-Way Designer Style Dimmer Switch, 120 VAC, 1 Poles, Slide-to-Bright/Dim Operation, White
Brand: Lutron®
Item ID: 21806
MPN: DV-103P-WH
Login for Price
Features
- Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
- Full family of products for most lighting sources
- Dimmers feature built-in soft glow nightlight
- Uses standard 1-pole and 3-way wiring for easy installation in any home
Description
A simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. T
Lutron® Diva® Dimmer Switch, 3-Way Designer Style, Series: DV-103P, 120 VAC, 1000 W Power, 60 Hz Frequency, 1 Pole, Incandescent/Halogen Lamp, Preset Start, Operation Mode: Slide-to-Bright/Dim, Paddle Control, Wall Mounting, Push-In/Screw Terminal, 0 to 4
Specifications
Color |
White |
Control |
Paddle |
Dimensions |
4.69 in H x 2.94 in W x 0.3 in D |
Frequency Rating |
60 Hz |
Lamp Type |
Incandescent/Halogen |
Material |
Plastic |
Mounting Type |
Wall |
Number of Poles |
1 |
Operation Mode |
On/Off |
Power Rating |
1000 W |
Series |
DV-103P |
Start Type |
Preset |
Temperature Rating |
0 to 40 deg C |
Terminal Type |
Screw |
Type |
3-Way Designer Style |
Voltage Rating |
120 VAC |
Standard Approval |
UL 1472|CSA C22.2 File No. 184.1|NOM Certified |
Application |
Commercial and Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DV_103P_AL_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_AY_103P_AL_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DV_103P_AL_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DV_103P_AL_Line_Drawing.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_1000_AL_Warranty.pdf
