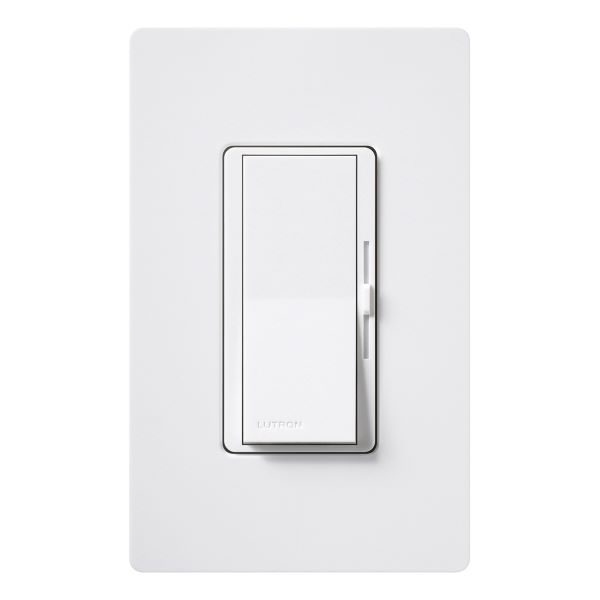

Lutron® DVFSQ-F-HO-WH
Lutron® Diva® DVFSQ-F-HO-WH DVFSQ-F-HO 1-Pole Designer Style Fan Speed Control, 120 VAC, 2 A, 3-Speed/Quiet Operational Mode, White
Brand: Lutron®
Item ID: 72759
MPN: DVFSQ-F-HO-WH
Login for Price
Features
- On/off rocker switch with a captive slider
- Quiet 3-speed control of ceiling fan
- Requires separate wires at the wallbox for the fan and the light, no neutral is required at the wallbox
- No nightlight
- 100% factory tested
Description
Lutron® Diva® Fan Speed Control, 1-Pole Designer Style, Series: DVFSQ-F-HO, 120 VAC, 2 A, 3-Way/Quiet 3-Speed Operational Mode, Wall Mounting, Push-In/Screw Terminal, 32 to 104 deg F, Gloss, White, Environmental Conditions: 0 to 90% Non-Condensing Relativ
Specifications
Amperage Rating |
2 A |
Color |
White |
Dimensions |
4.69 in H x 2.94 in W x 1.31 in D |
Environmental Conditions |
0 to 90% Non-Condensing Relative Humidity |
Finish |
Gloss |
Mounting |
Wall |
Operational Mode |
3-Speed/Quiet |
Series |
DVFSQ-F-HO |
Temperature Rating |
32 to 104 deg F |
Terminal Type |
Push-In/Screw |
Type |
1-Pole Designer Style |
Voltage Rating |
120 VAC |
Standard Approval |
cULus Listed|NOM certified |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVFSQ_F_HO_AL_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_AY_103PNL_IV_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVFSQ_F_AL_Manual.pdf
