Lutron® DVRF-5NS-WH
Lutron® DVRF-5NS-WH DVRF Smart Dimmer, Rocker On/Off Operation, 120 V, CFL/LED/Incandescent/Halogen Lamp
Brand: Lutron®
Item ID: 522506
MPN: DVRF-5NS-WH
Login for Price
Features
- Easy, precise dimming with soft-glow light bar
- Works with existing wiring (no neutral required)
- Flexible, 3-way/multi-location control capability with wired and wireless options
- Works with 5A LED, 3A general purpose fan, or 600W incandescent; Neutral required
- Lutron Clear Connect doesn't rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)
- Add a 2nd switch anywhere by pairing with a mountable Pico remote (sold separately)
- Provides on/off control of lights or fans

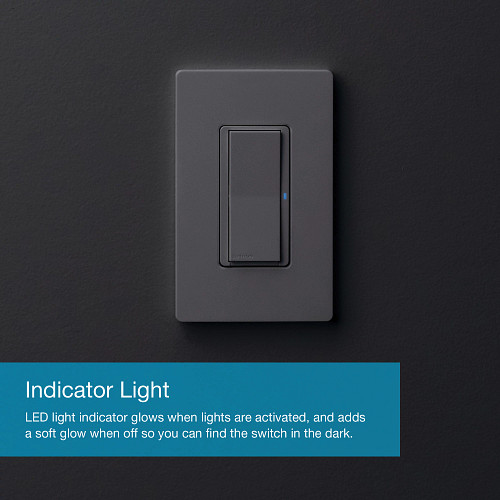

- LED indicator light on right side of switch produces a soft glow when control is activated
- Useful for areas where dimming is not needed, such as garage or outdoor porch lights
Description
Lutron®, DVRF-5NS-WH, Dimmer, Smart, Series: DVRF, 120 V, 3 A, 150/600 W Power, CFL/LED/Incandescent/Halogen Lamp, Operation Mode: Rocker On/Off, 50/60 Hz Frequency, Plastic Insulation, Wall Mounting, 32 to 104 deg F, Metal, White, 4.7 in H x 2.94 in W x 1.6 in D Dimensions
Specifications
Amperage Rating |
3 A |
Color |
White |
Dimensions |
4.7 in H x 2.94 in W x 1.6 in D |
Enclosure Type |
Plastic |
Frequency Rating |
50/60 Hz |
Insulation Type |
Plastic |
Lamp Type |
CFL/LED/Incandescent/Halogen |
Material |
Metal |
Mounting Type |
Wall |
Operation Mode |
Rocker On/Off |
Power Rating |
150/600 W |
Series |
DVRF |
Switch Type |
On/Off |
Temperature Rating |
32 to 104 deg F |
Type |
Smart |
Voltage Rating |
120 V |
Standard Approval |
cULus Listed|NOM Certified|FCC ApprovedIFTEL Certified |
Application |
DVRF-5NS uses a white status LED to indicate load status,DVRF-5NS can also be wired with an accessory switch, DVRF-AS,DVRF-5NS can be used with a mechanical switch in 3-way applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_5NS_WH_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_Specification_Sheet.pdf
