Lutron® DVRF-6L-WH
Lutron® DVRF-6L-WH DVRF Designer Dimmer, On/Off Switch, Rocker Slide Operation, 120 V, CFL/LED/Incandescent/Halogen Lamp
Brand: Lutron®
Item ID: 522505
MPN: DVRF-6L-WH
Login for Price
Features

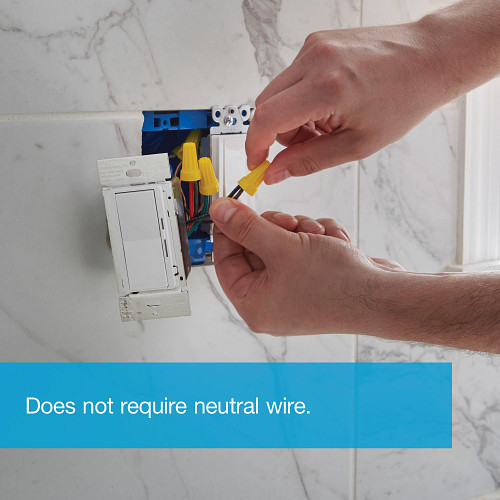

- Works with existing wiring (no neutral required)
- Flexible, 3-way/multi-location control capability with wired and wireless options
- Lutron Clear Connect doesn't rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)

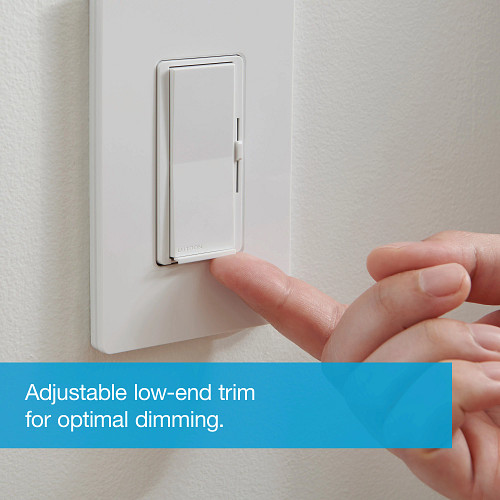

- Tap buttons for full on/off; adjust slider to dim or brighten light level
- Preset allows you to turn your lights on to your preferred predetermined level
- Soft-glow light bar provides easy and precise dimming control

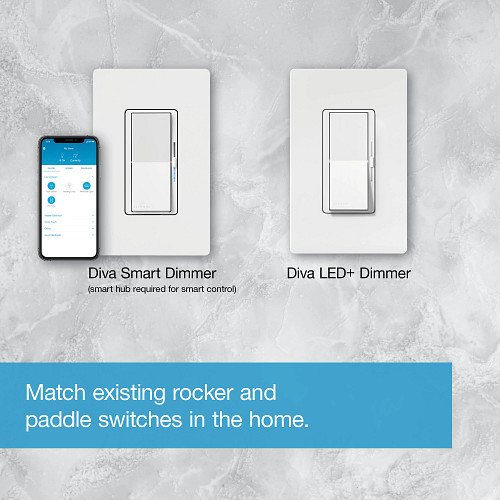

- Lutron's most popular dimmer is now smart; matches existing Diva LED+ dimmer switches in the home
Description
Lutron®, DVRF-6L-WH, Dimmer, Designer, Series: DVRF, 120 V, 3 A, 150/600 W Power, On/Off Switch, CFL/LED/Incandescent/Halogen Lamp, Operation Mode: Rocker Slide, Plastic Insulation, Wall Mounting, 32 to 104 deg F, Metal, White, 4.7 in H x 2.94 in W x 1.6 in D Dimensions
Specifications
Amperage Rating |
3 A |
Color |
White |
Dimensions |
4.7 in H x 2.94 in W x 1.6 in D |
Enclosure Type |
Plastic |
Insulation Type |
Plastic |
Lamp Type |
CFL/LED/Incandescent/Halogen |
Material |
Metal |
Mounting Type |
Wall |
Operation Mode |
Rocker Slide |
Power Rating |
150/600 W |
Series |
DVRF |
Switch Type |
On/Off |
Temperature Rating |
32 to 104 deg F |
Type |
Designer |
Voltage Rating |
120 V |
Standard Approval |
cULus Listed|NOM Certified|FCC ApprovedIFTEL Certified |
Application |
DVRF-6L can be used with a mechanical switch in 3-way applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_6L_WH_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_Specification_Sheet.pdf
VIDEO LINK
https://lutron.widen.net/content/zyagciz64p/original/Diva-Smart-Dimmer_EW-Counter-Version-Apple-Devices-4K.mp4
