Lutron® DVRF-PKG1D-WH

Lutron® DVRF-PKG1D-WH DVRF-PKG1D 3-Way Dimmer Switch, 120 V, 5 A, 1 Poles, Paddle Operation, White

Brand: Lutron®

Item ID: 557007

MPN: DVRF-PKG1D-WH

Login for Price

Features

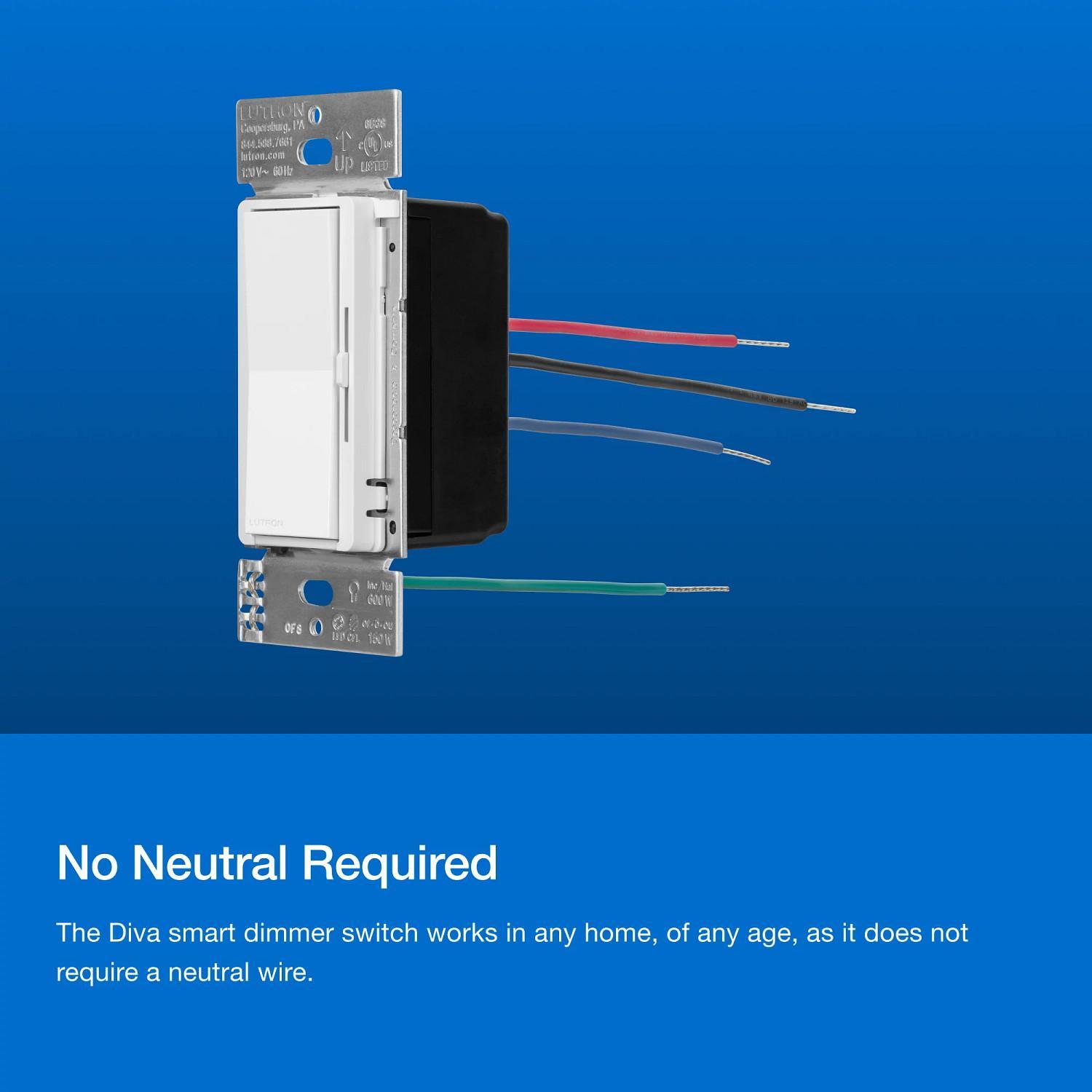

  • Doesnt require a neutral wire works with existing wiring
  • Use existing toggle switches for 3-way applications or replace existing switches with wireless Pico remotes or wired Claro smart accessory switches in 3-way or multi-location applications
  • Easily adjust the low-end trim for flicker-free dimming
  • Mix different bulb types on the same circuit
  • Diva smart dimmer works with 150W LED, or 600W incandescent/halogen, No neutral required, 120V

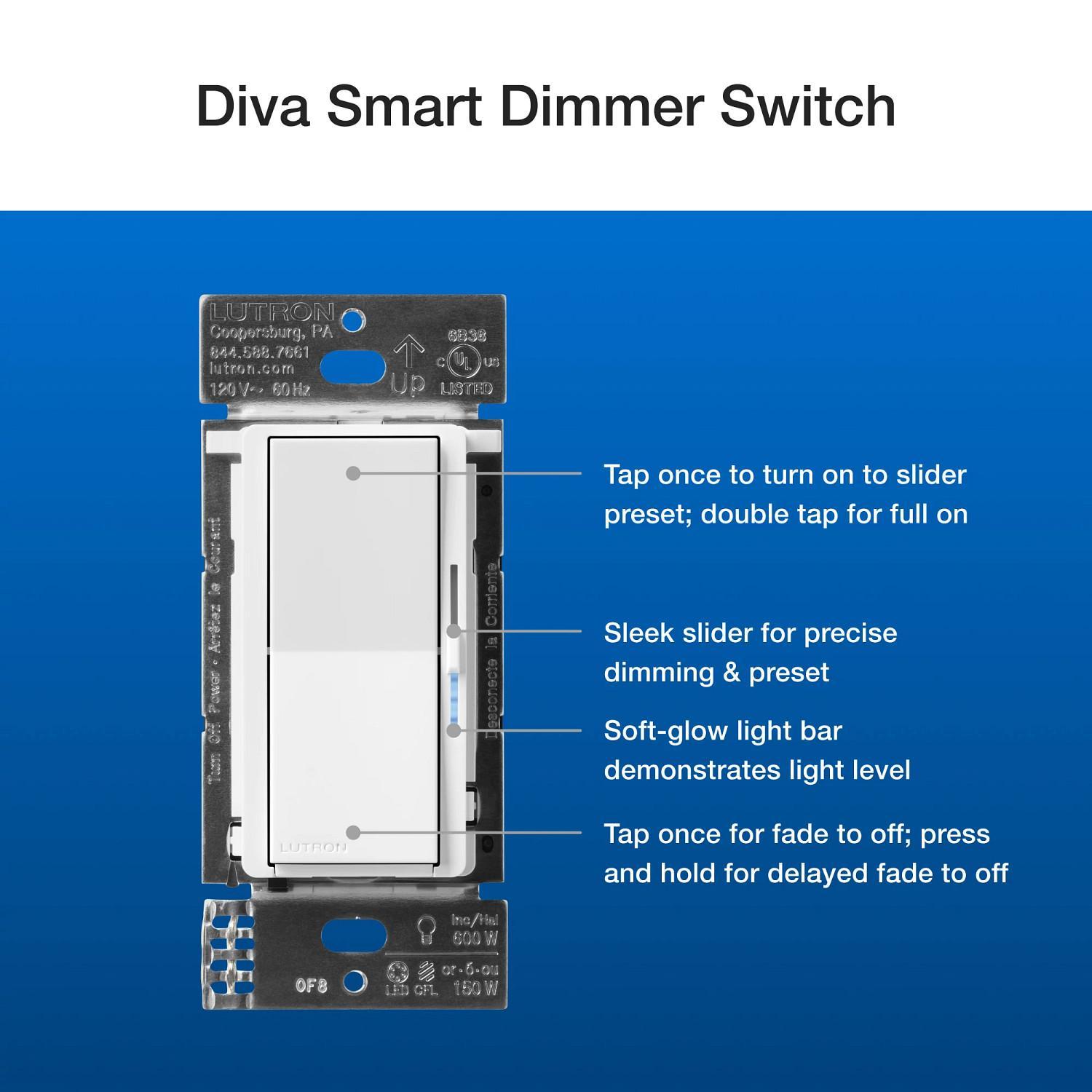

  • Seamlessly match the look and feel of the Diva smart dimmer with the new Pico paddle remote, tap the top of the Pico remote once to turn the light on to the preset slider level set on dimmer or double tap for full brightness, tap bottom once to turn off

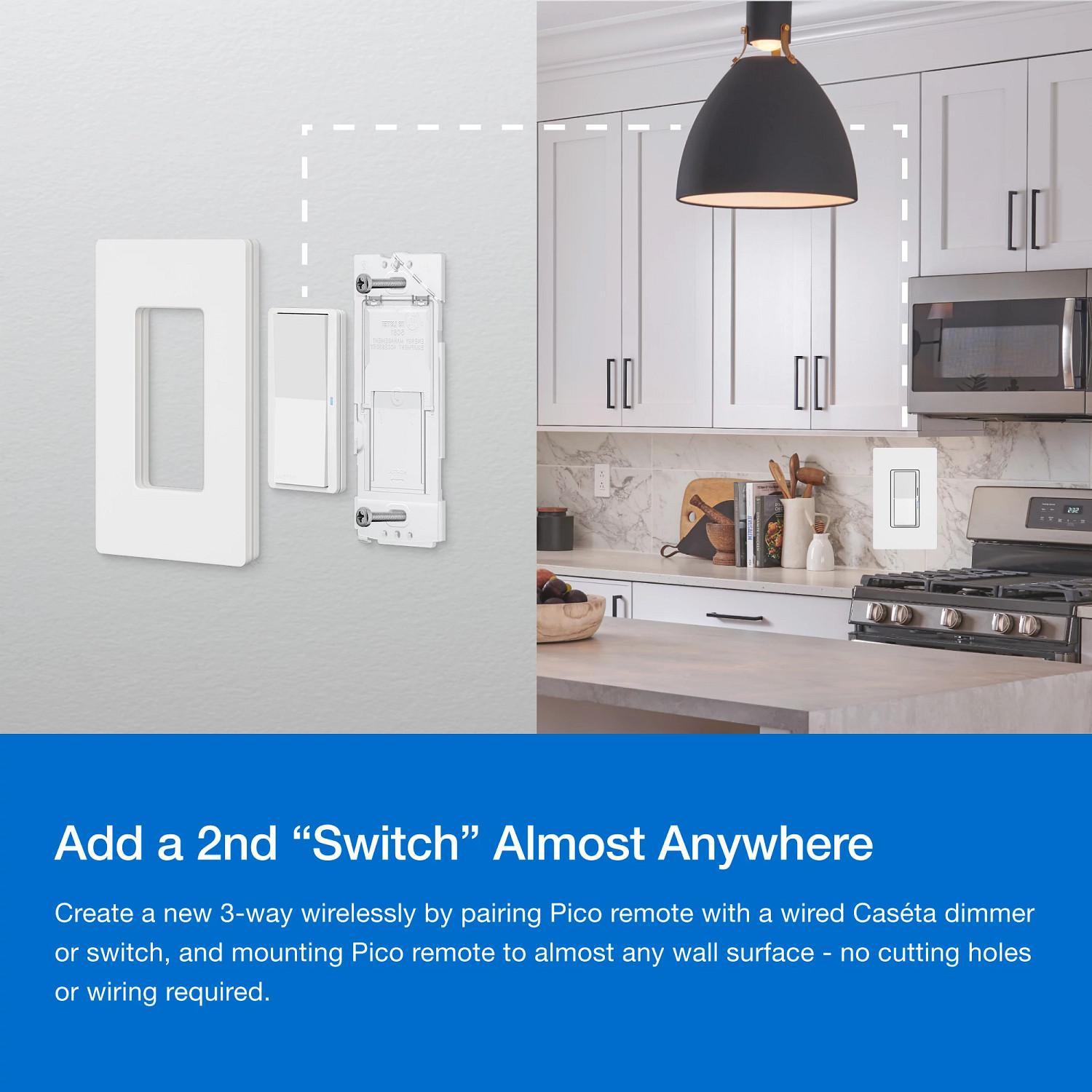

  • Add a 2nd switch almost anywhere by mounting the Pico paddle remote on almost any wall surface with the included wall plate bracket - no cutting holes or pulling wire required

Description

Introducing the Diva smart dimmer switch for Caseta smart lighting . Lutron's #1 dimmer is now smart and works with your existing Caseta products. Match existing paddle-style dimmer switches in your home with the same elegant, recognized aesthetic, updated on both the dimmer and the Pico paddle remote. The Diva smart dimmer works with 150W LED bulbs and 600W incandescent bulbs. Unlike other smart controls, the Diva smart dimmer does not require a neutral wire and works with existing wiring and in homes of all ages.  The soft glow light bar on the dimmer provides easy and precise control from the wall. The slider on the Diva smart dimmer allows you to set a preset light level. Tap once at the top of the dimmer or Pico paddle remote to turn lights onto the slider level. Double tap the top of the dimmer or Pico remote for full brightness. The Pico paddle remote adds an additional point of control wirelessly, without needing a hub or password. Mounting the Pico remote to the wall with the included Pico wall mount bracket (PICO-WBX-ADAPT) makes the Pico remote look and feel like a regular in-wall switch, without cutting holes and pulling wire normally required for an additional switch. Add a Caseta smart hub later to unlock advanced features such as scenes, scheduling, app control, and connectivity to Alexa, Apple Home, Google Home, Ring, Sonos, and more. Kit includes (1) Diva smart dimmer switch, (1) Pico paddle remote, (1) wall plate bracket, and (1) coordinating Claro wall plate.

Lutron®, DVRF-PKG1D-WH, Dimmer Switch, 3-Way, Series: DVRF-PKG1D, 120 V, 5 A, 150 W Power, 1 Pole, LED Lamp, Preset Start, Operation Mode: Paddle, Rocker Control, Wall Mounting, 32 to 104 deg F, Plastic, White, 4.7 in H x 2.9 in W x 0.3 in D Dimensions

Specifications

Amperage Rating

5 A

Color

White

Control

Rocker

Dimensions

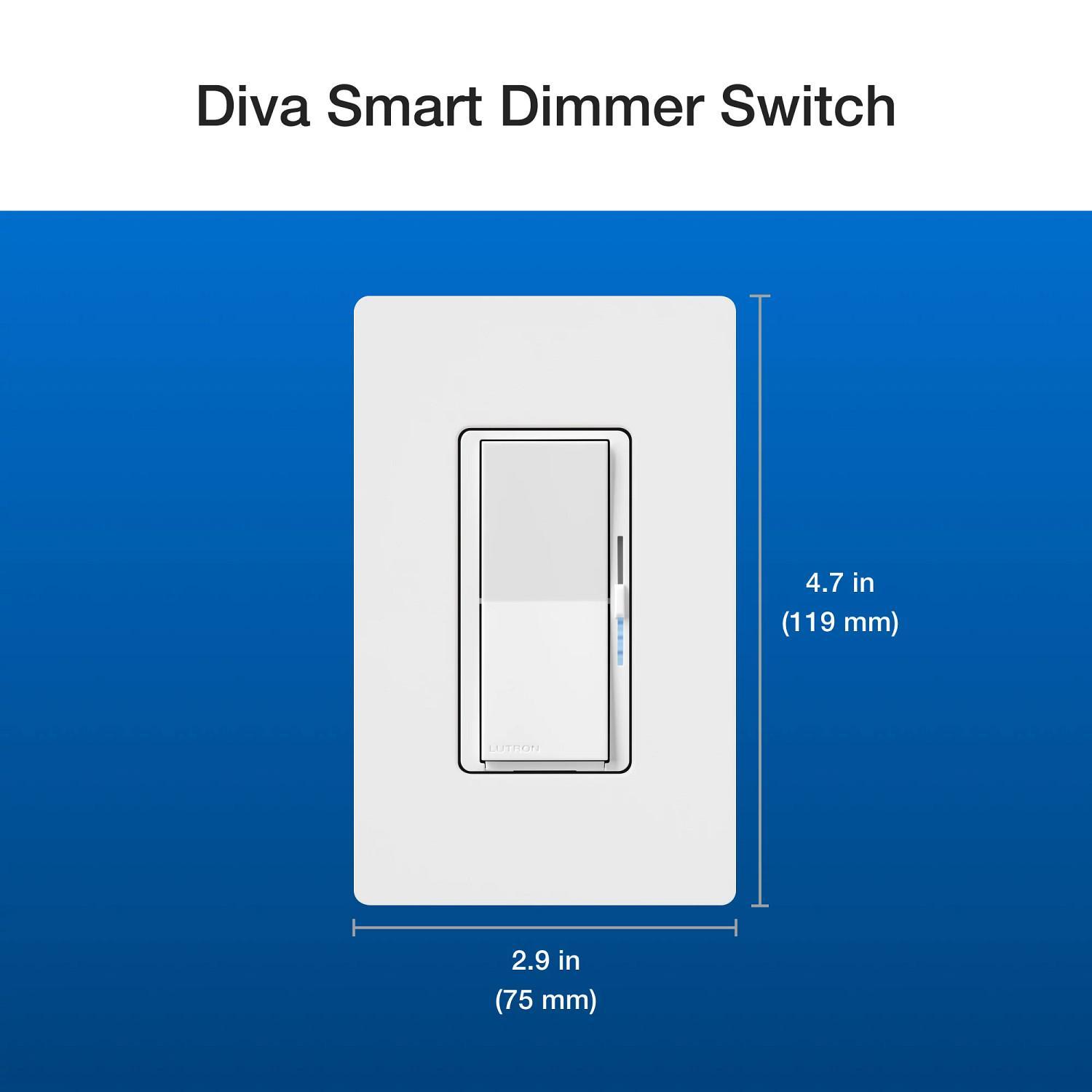

4.7 in H x 2.9 in W x 0.3 in D

Lamp Type

LED

Material

Plastic

Mounting Type

Wall

Number of Poles

1

Operation Mode

Paddle

Power Rating

150 W

Series

DVRF-PKG1D

Start Type

Preset

Temperature Rating

32 to 104 deg F

Type

3-Way

Voltage Rating

120 V

Standard Approval

UL Listed|cUL Listing

Application

Residential

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_PKG1D_WH_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_PKG1D_WH_Installation_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_PKG1D_WH_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_PKG1D_WH_Specification_Sheet.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_PKG1D_WH_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVRF_PKG1D_WH_Warranty.pdf
