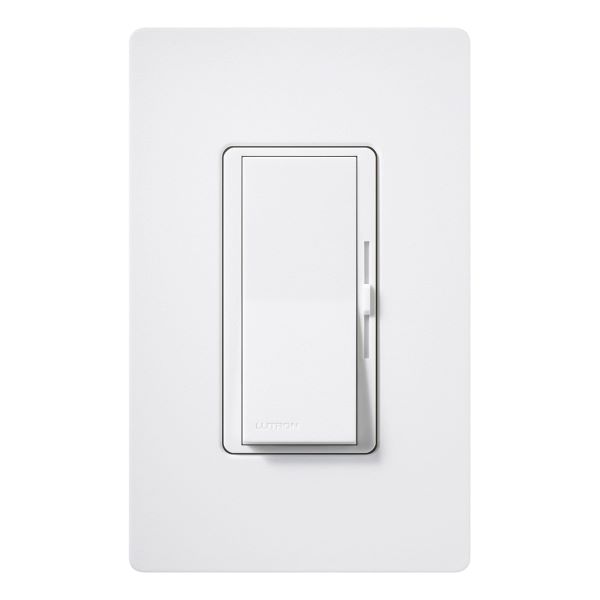

Lutron® DVSCLV-603P-SW
Lutron® Diva® Satin Colors® DVSCLV-603P-SW Magnetic Low Voltage Dimmer With Nightlight, 120 VAC, 3-Way On/Off Operation, Snow
Brand: Lutron®
Item ID: 298708
MPN: DVSCLV-603P-SW
Login for Price
Features
- Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
- Full family of products for most lighting sources
- Dimmers feature built-in soft glow nightlight
- Uses standard single-pole and 3-way wiring for easy installation in any home
Description
A simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. T
Lutron® Diva® Satin Colors® Low Voltage Dimmer, Magnetic, Series: DVSCLV-603P, 120 VAC, 450 W Power, 60 Hz Frequency, Preset Start, Operation Mode: 3-Way On/Off, Large Paddle/Linear Slide Control, Wall Mounting, Screw Terminal, 0 to 40 deg C, Plastic, Sno
Specifications
Color |
Snow |
Control |
Paddle/Small Slider |
Dimensions |
4.69 in H x 2.94 in W x 0.3 in D |
Frequency Rating |
60 Hz |
Lamp Type |
Magnetic Low Voltage |
Material |
Plastic |
Mounting Type |
Wall |
Number of Poles |
1 |
Operation Mode |
3-Way On/Off |
Power Rating |
450 W |
Series |
Designer |
Start Type |
Preset |
Temperature Rating |
0 to 40 deg C |
Terminal Type |
Push-In/Screw |
Type |
Magnetic |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed|CSA Certified|NOM Certified |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSC_10P_SI_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSC_103P_SI_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSCLV_10P_ST_Manual.pdf
